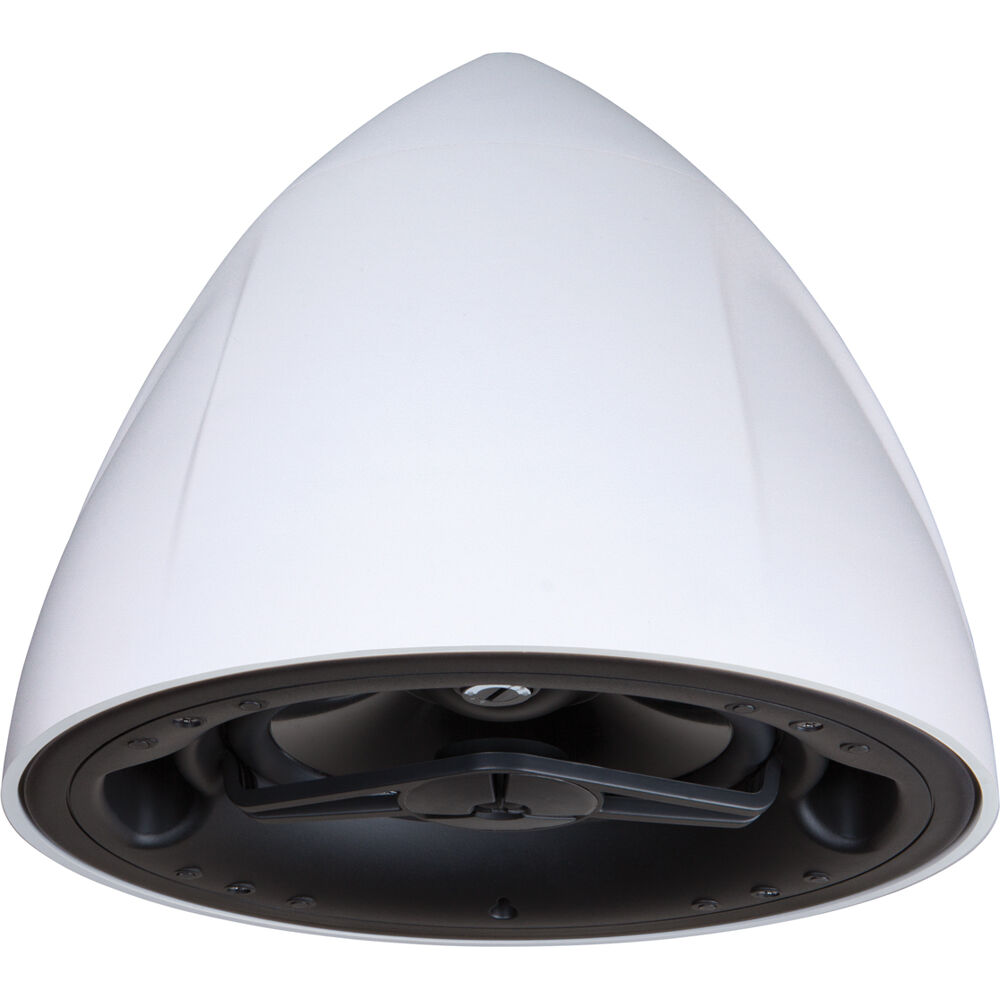

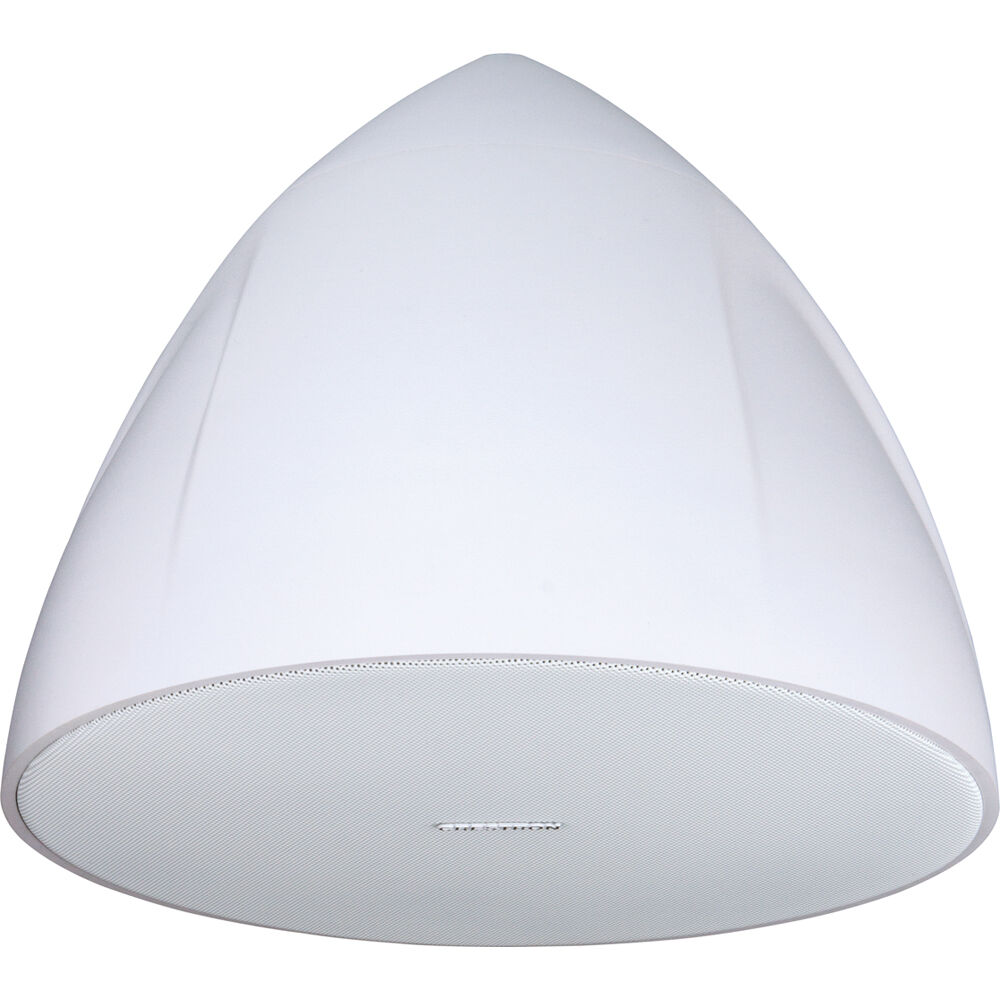

Crestron Saros PDS8T 8" Pendant Mount Subwoofer (White)

Deep-Bass Extension for Distributed Audio

Featuring an 8" polypropylene woofer in a tuned, ported enclosure, the PDS8T provides tight, musical low-frequency support with a frequency response of 45 to 125 Hz (±3 dB). It enhances background music systems by adding clarity and weight to the low end, improving overall sound quality in large, reverberant spaces.

70/100V Transformer with Flexible Taps

Equipped with a built-in 100W multi-tap transformer, the PDS8T integrates easily into distributed 70 and 100V systems. Tap settings include 100, 60, 30, and 15W, selectable via a sealed rear switch. An 8-ohm bypass is also available for use with low-impedance amplifiers.

Secure Pendant Mounting with Gripple System

Designed for open-ceiling suspension, the PDS8T includes a 10' steel wire suspension kit featuring a Gripple self-locking wire rope grip and carabiner-style safety clip. This allows for easy height adjustment and ensures reliable, code-compliant overhead installation. A sealed cable gland with protective cover provides a clean and secure cable entry point.

Durable, Commercial-Grade Construction

The enclosure is molded from rugged ABS plastic with a powder coated aluminum grille, and is UL 94V-0-rated for flame resistance. Both the housing and grille are paintable to blend seamlessly with interior architecture.

Additional Details

• 8� polypropylene woofer in tuned enclosure
• Frequency response: 45 Hz to 125 Hz (±3 dB)
• Enhances low end for full-range systems
• Built-in 100W 70/100V transformer with 4 tap settings
• 8-ohm bypass for low-impedance systems
• Includes Gripple self-locking suspension grip
• 10' steel cable with safety hardware
• Paintable enclosure and grille with sealed input cover
• Flame rated UL 94V-0
• Available in black or white finish options

Crestron SAROS PDS8T-W-T-EACH Specs

Active/Passive	Passive
Number of Included Speakers	1
Speaker Configuration	Subwoofer
Power Handling	100 W Program
Constant Voltage / Transformer Taps	70 V 60 / 120 W 100 V 120 W
Impedance	8 Ohms
LF Driver	8" / 20.3 cm Polypropylene-Coated
Frequency Range	35 Hz to 125 Hz -10 dB
Color	White

Active/Passive	Passive
Number of Included Speakers	1
Speaker Configuration	Subwoofer
Power Handling	100 W Program
Constant Voltage / Transformer Taps	70 V 60 / 120 W 100 V 120 W
Impedance	8 Ohms

LF Driver

8" / 20.3 cm Polypropylene-Coated

Frequency Range	35 Hz to 125 Hz -10 dB
Frequency Response	45 Hz to 125 Hz ±3 dB
Sensitivity	90 dB
Crossover	125 kHz
Maximum Input Voltage	100 V

Inputs/Outputs	Block 4-Pin
Maximum Wire Gauge	12 AWG

Environmental Resistance	Weather-Resistant (Unrated)
Operating Conditions	-2 to 120°F / -18 to 48°C at 5 to 95% Humidity
Color	White
Mounting	Suspension
Construction Material	ABS
Dimensions	12.6 x 10.6" / 320 x 269 mm
Weight	13.1 lb / 5.9 kg
