Description
Crestron UC-B31-T Overview
From Manufacturer
Crestron Flex: Overview from HQ Crestron Experience Center

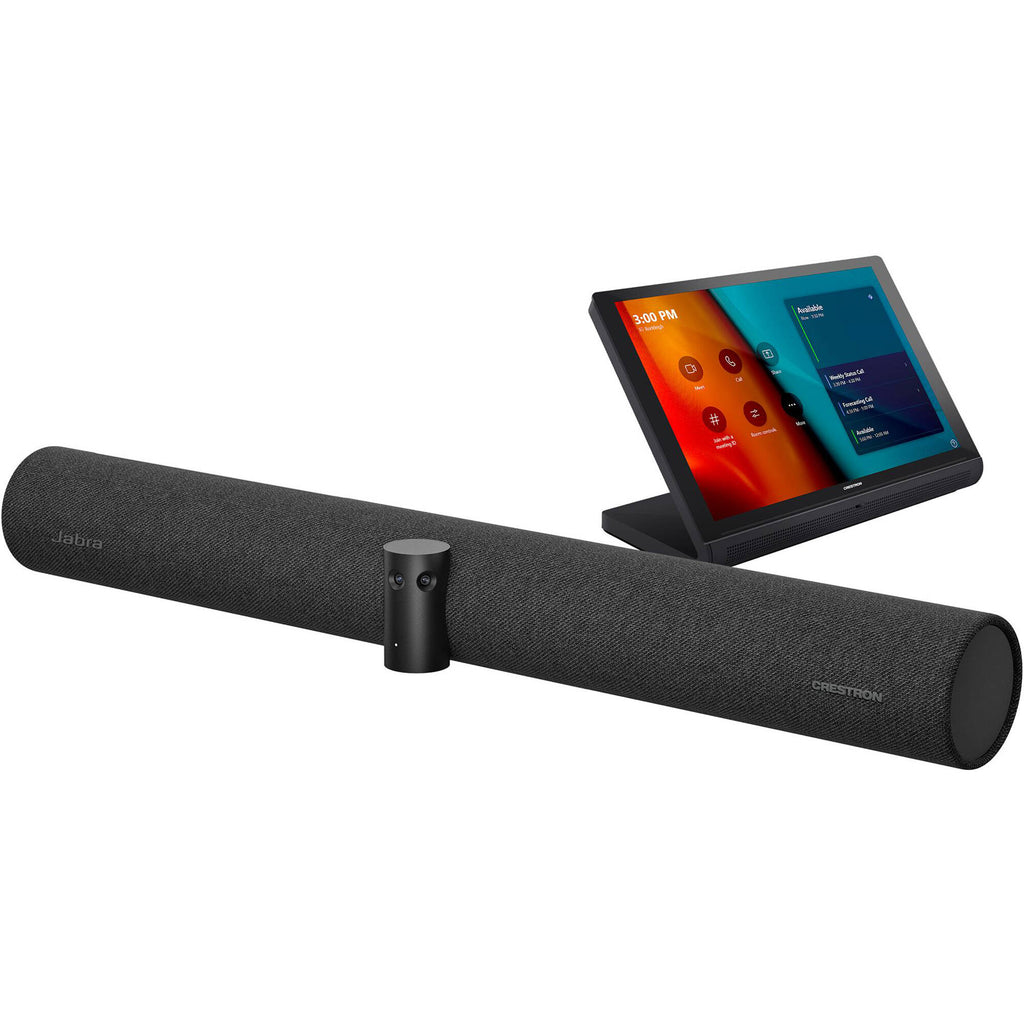

Crestron Flex
Set up your conference room for Microsoft Teams Rooms conferencing with the Flex Small Room Conference System with Video Bar from Crestron. This hardware and software solution is designed to enhance your conference room with everything you need to run Microsoft Teams Rooms software with a single- or dual-display setup.
The solution is a bracket assembly with a Mini PC running Microsoft Teams Rooms along with HDMI and Ethernet adapters. Also included is a 10.1" touchscreen controller and the Jabra PanaCast 50 Video Bar. It can all be controlled via the XiO Cloud service, which requires a separately available subscription.

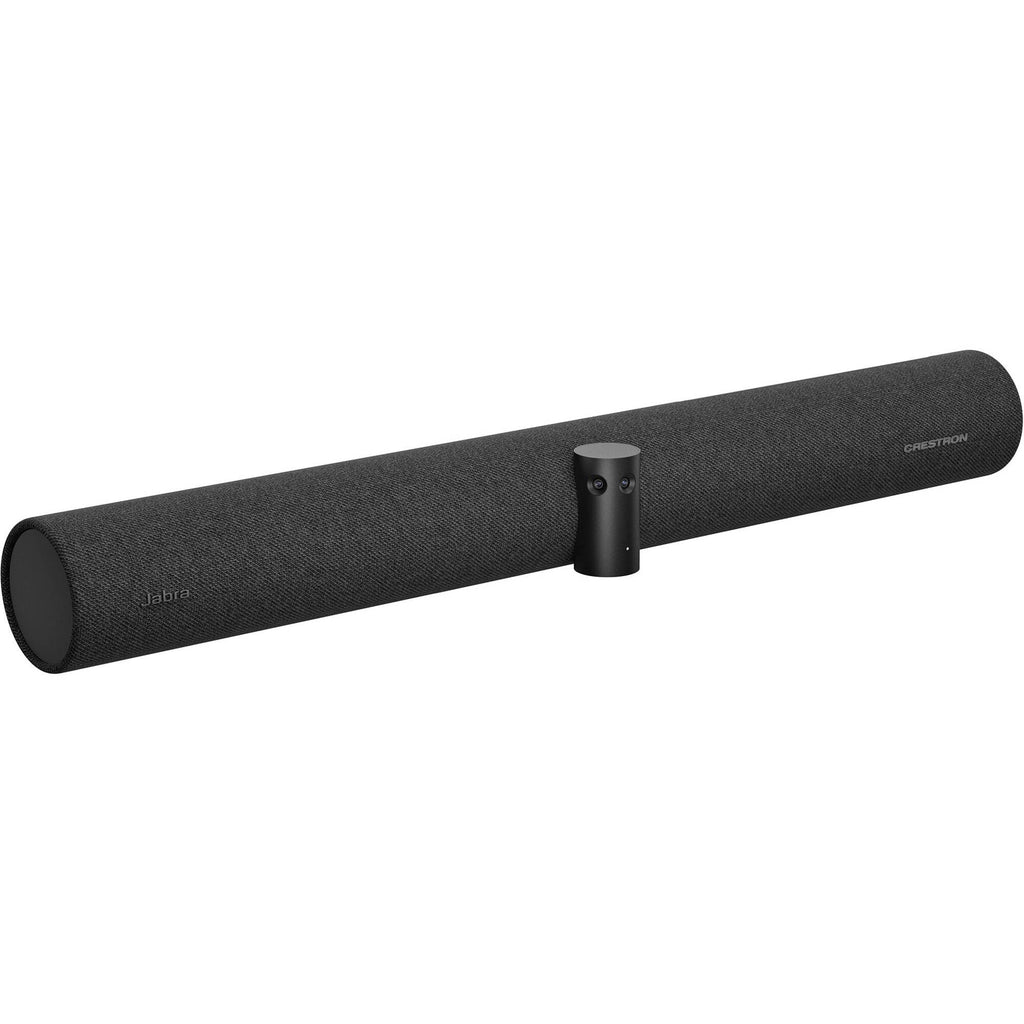

Jabra PanaCast 50 Intelligent Video Bar
- Complete conferencing solution with speakers, microphones, and cameras in one front-of-room device
- Eight-microphone beamforming array
- High-powered 2-way stereo speakers produce high-quality sound
- Full-duplex audio performance with 2-way voice quality
- Three built-in cameras capture the room in a seamless 180? horizontal field of view
- Panoramic 4K video resolution
- 6x lossless digital zoom
- Automatically adjusts the field of view to frame all participants
- Microsoft Teams Rooms and Zoom Rooms software certified
Native Microsoft Teams Rooms
Designed to enhance the Crestron Flex system, the UC-ENGINE-BRKT-T-UPGRD-BRKTX system upgrade brings the full Microsoft Teams Rooms UC (Unified Communications) experience to any meeting space in an enterprise or SMB facility.

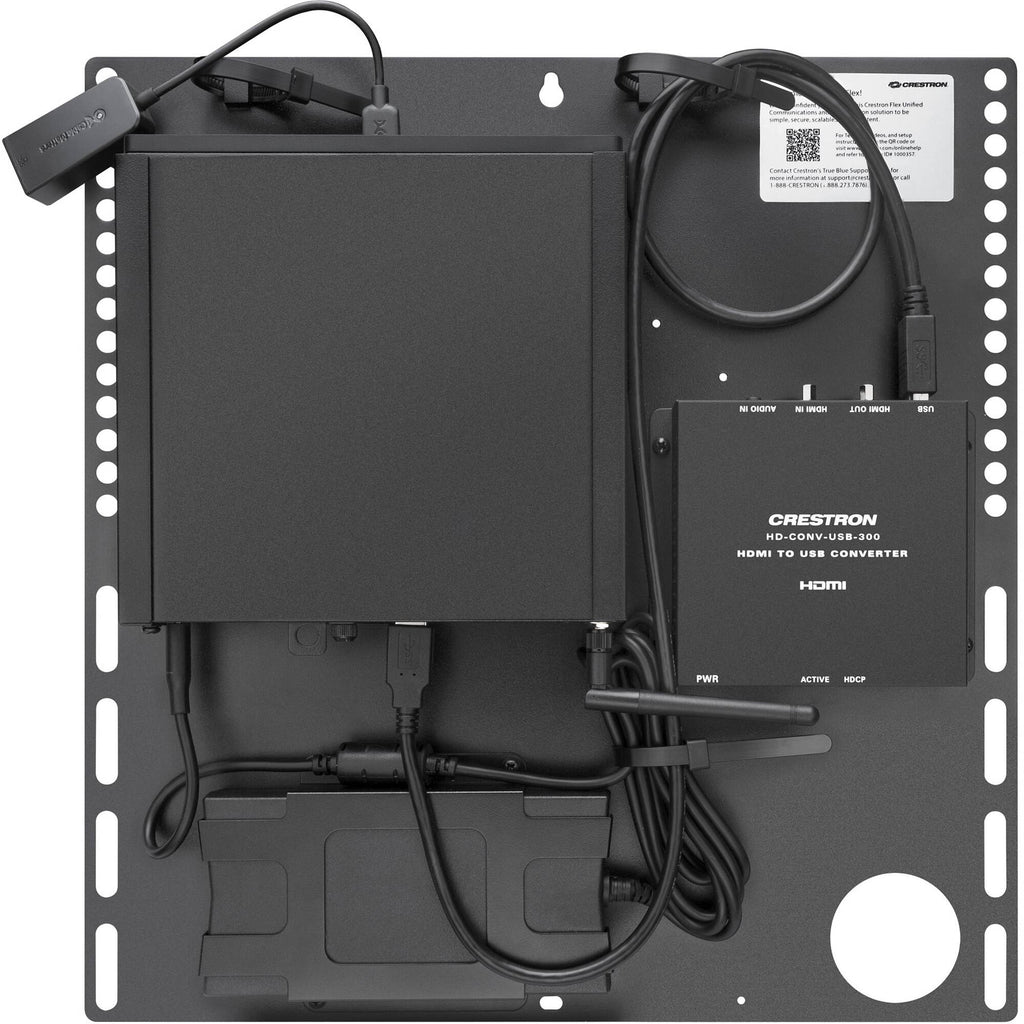

Simplified Deployment
The included UC Bracket Assembly provides preassembled components on one ready-to-mount bracket to simplify installation. The assembly can be mounted on a wall, or it can be attached to the rear of the display device. Crestron's direct connection method further simplifies installation with a single connection from the Flex tabletop conference device or touchscreen to the UC Bracket Assembly.
Enterprise-Grade Security
This upgrade enhances the Crestron Flex system, which is equipped for mass deployment throughout any sized corporate, university, medical, military, or government facility with enterprise-grade security.
Easy Provisioning and Device Management
The XiO Cloud service is an IoT cloud-based provisioning service that enables installers and IT managers to deploy and manage thousands of devices easily. It allows for system alerts, network management, provisioning, and the pairing of a control device to the system's UC Engine. System updates are controlled via Windows software updates.

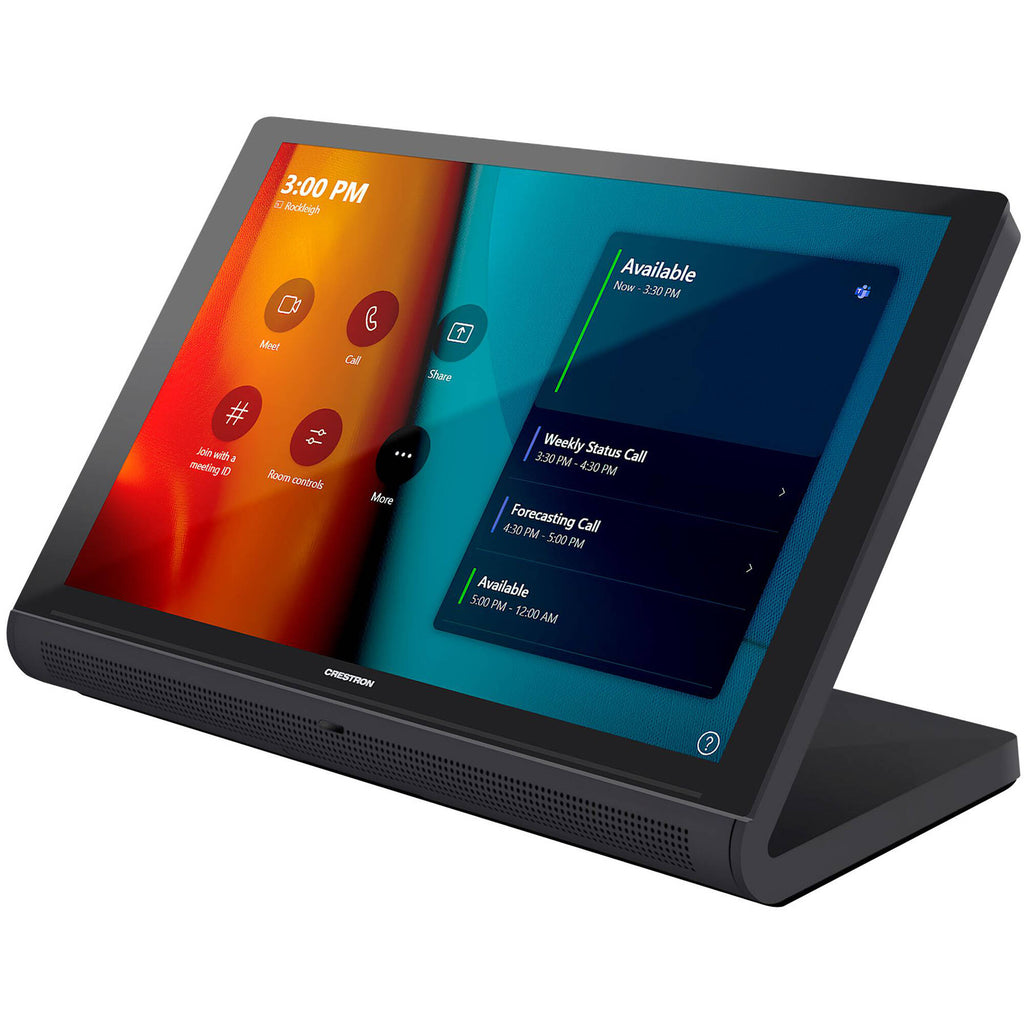

Touchscreen Control
The included 10" touchscreen controller can be used to control the Microsoft Teams Rooms environment.
Items Included
- Crestron Flex Small Room Conference System with Video Bar for Microsoft Teams Rooms
- Crestron Jabra PanaCast 50 Intelligent Videobar for Flex Systems
- Tabletop Touchscreen Controller (10.1")
- Mini PC with Microsoft Teams Preinstalled
- USB-to-Ethernet Adapter
- HDMI to USB 3.0 Converter
- Limited 3-Year Manufacturer Warranty
Additional Resources
Crestron UC-B31-T Specs
Key Specs
| Resolution and Frame Rate |
UHD 4K at up to 30 fps
|
| Image Sensor |
Size-Unspecified CMOS
|
| Sensor Resolution |
13 MP
|
| System Connection |
USB-C 3.0 / 3.1/3.2 Gen 1
|
Sensor
| Resolution and Frame Rate |
UHD 4K at up to 30 fps
|
| Number of Lenses |
3
|
| Image Sensor |
Size-Unspecified CMOS
|
| Sensor Resolution |
13 MP
|
| Field of View |
Horizontal: 180?
Vertical: 54? |
| Zoom |
6x (Digital)
|
| Pan |
No
|
| Tilt |
No
|
General
| System Connection |
USB-C 3.0 / 3.1/3.2 Gen 1
|
| Other I/O |
1x RJ45 10/100 Mbps Ethernet
1x 1/8" / 3.5 mm Input |
| Focus Type |
Auto
|
| Bluetooth |
No
|
| Wi-Fi |
No
|
| Power Source |
AC Adapter
|
| Low-Light Correction |
No
|
| Input Power |
100 to 240 VAC, 50 / 60 Hz
|
| OS Compatibility |
Windows
|
Microphone
| Microphone |
8
|
| Pickup Range |
15' / 4.6 m
|
| Polar Pattern |
Omnidirectional
|
| Frequency Range |
100 Hz to 8 kHz
|
| Sensitivity |
-37 dB
|
Speakers
| Built-In Speakers |
Yes
|
| Frequency Response |
80 Hz to 20 kHz
|
Physical
| Privacy Shutter |
No
|
| Security |
No
|
| Attachment Method |
Wall Mount
|
| Built-In Light |
No
|
| Dimensions (W x H x D) |
25.6 x 4.9 x 3.5" / 650.0 x 125.0 x 90.0 mm
|
| Weight |
4.9 lb / 2.2 kg
|
