Description
Crestron Flex Video Overview
The

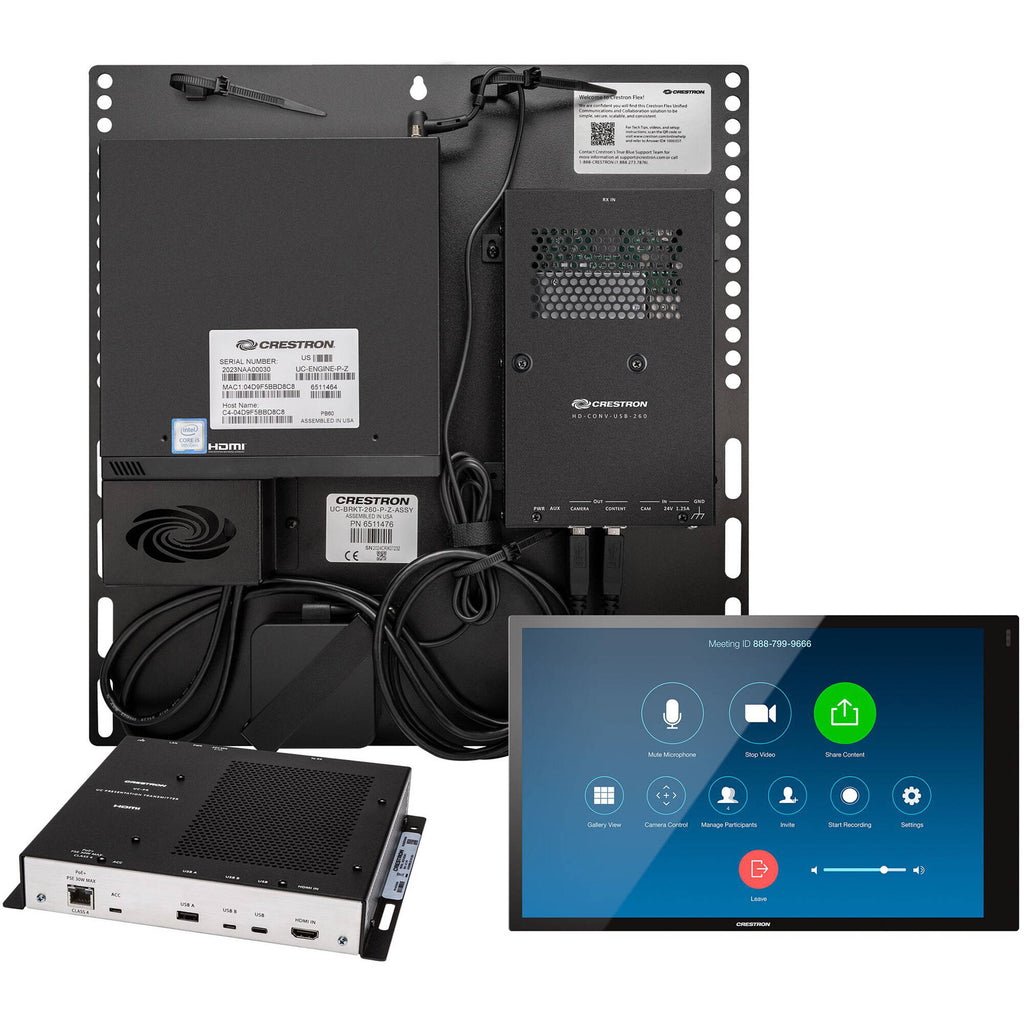

Crestron Flex Video Conference System Integrator Kit for Zoom Rooms provides a preassembled customizable video conferencing system for corporate offices, universities, and other fields focused on streamlined collaboration. The system comes ready to install with incorporated mounting brackets and a USB-C to HDMI adapter for easy setup. This advanced kit includes a 10.1" touch screen display with an intuitive interface and preinstalled software, and a UC Presentation Transmitter for Bring Your Own Device (BYOD) capability.
Complete Conferencing Solution
Fully Customizable
This video conferencing solution acts as a hub to connect Zoom-compatible devices in a single ready-to-use platform. Designed to be fully customizable, Crestron Flex integration allows an ordinary office room into a complete video conference setup using the monitors, cameras, and other AV equipment of your choice. The versatility of this system lets you control the size and scope of your conferencing needs. Support for up to three displays and Crestron facilities control capability (additional equipment required) elevate private meeting rooms and multi-team spaces into collaborative conferencing suites.
Express Deployment
The UC Engine Assembly comes pre-built with a preloaded PC, HDMI to USB-C interface, and mounting brackets. By arriving ready-to-go, building a collaborative hub from scratch or upgrading your current Zoom room is quick and requires minimal installation. A 10.1" touch screen display features an intuitive user interface to easily swap between video displays and content sharing options. The UC Presentation Transmitter bolsters the utility by allowing guests to connect their personal device to the Flex platform, with automatic switching between the two. Multiple Flex systems can be managed remotely via XiO Cloud services with an optional subscription.
In the Box
- Crestron Flex Advanced Video Conference System Integrator Kit for Zoom Rooms with Wall Mount Touch Screen
- 10.1" Wall Mount Touch Screen
- UC Engine PC with Preloaded Zoom and Crestron Software
- UC Presentation Transmitter
- HDMI to USB 3.0 Converter
- Mounting Hardware
- Active Converter DisplayPort to HDMI Cable (6')
- 2 x RJ45 to RJ45 Ethernet Lan Cable for UC Engine (Black, 7')
- 2 x RJ45 to RJ45 Ethernet LAN Cable (Blue, 20')
- HDMI Cable (6')
- PoE Injector
- Limited 3-Year Manufacturer Warranty
Crestron Flex Video Specs
Touch Screen |
|
UC Engine |
|
UC Presentation Transmitter |
|
Display |
Touch Screen: 10.1" Multi-touch Capacitive Touch LCD
UC Engine: N/A UC Presentation Transmitter: N/A |
Display Resolution |
Touch Screen: 1920 x 1200
UC Engine: N/A UC Presentation Transmitter: N/A |
Video Output |
Touch Screen: N/A
UC Engine: 1080p via HDMI | up to 3 Displays UC Presentation Transmitter: HDMI over CAT5 |
CPU |
Touch Screen: N/A
UC Engine: 6th Generation Intel Core i7-6770HQ Processor UC Presentation Transmitter: N/A |
Power Input |
Touch Screen: Power Over Ethernet with Included PoE Injector
UC Engine: 100-240 VAC | 50 / Hz with Included AC Adapter UC Presentation Transmitter: LAN PoE via RJ-45 Port | 24 VDC, 3.75 A, 100-240 VAC, 90W |
Input Connections |
Touch Screen: N/A
UC Engine: N/A UC Presentation Transmitter: 1 x USB-A 2.0 Port | 1 x USB-B 2.0 Port | 1 x USB-C 3.0 Port with 60W Charging | 1 x USB-B 3.0 Port (for Firmware Loading Only) |
Mounting |
Touch Screen: Included Mounting Bracket
UC Engine: Pre-installed Mounting Bracket UC Presentation Transmitter: Integrated Mounting Flanges |
Dimensions |
Touch Screen: 5.87 x 9.46 x 2.01" / 149 x 240 x 51 mm
UC Engine: 15 x 14.5 x 1.87" / 381 x 368.3 x 47.5 mm UC Presentation Transmitter: 9.3 x 8.2 x 1.6" / 236 x 208 x 41 mm |
Weight |
Touch Screen: 1.61 lb / .73 kg
UC Engine: 7.95 lb / 3.6 kg UC Presentation Transmitter: Not Specified By Manufacturer |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
