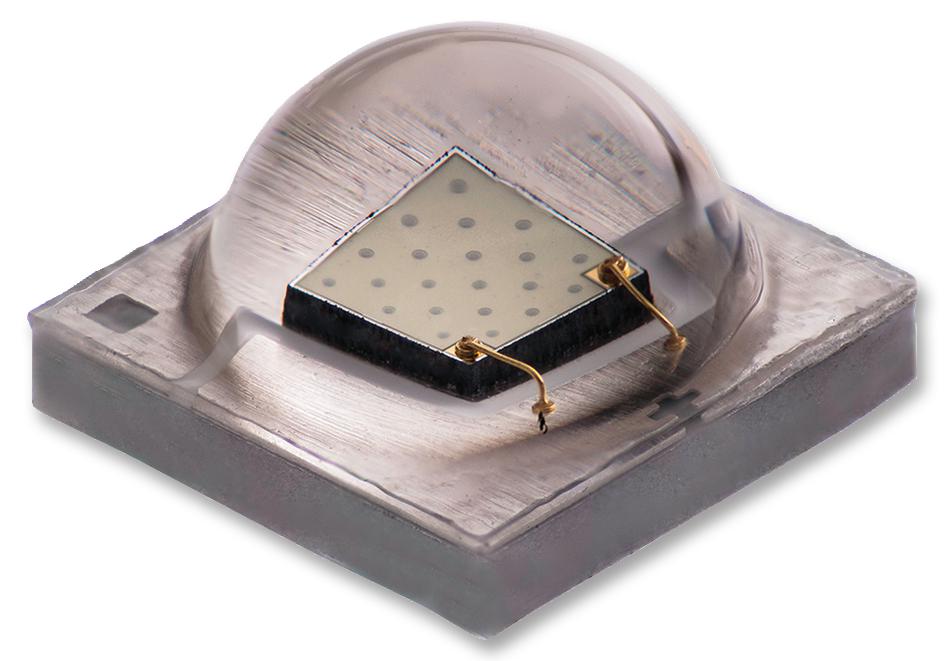

Cree LED XPEBBL-L1-0000-00201 High Brightness Xlamp XP-E2 Blue 485 nm 135 ° 39.8 lm 1 A

The XLamp XP-E2 series LED delivers high performance and lower system cost to XLamp XP LED designs. Built on Cree's revolutionary SC³ Technology� Platform, XP-E2 LEDs deliver higher lumens per watt and lumens per dollar to lower system costs for existing XP-E designs. XP-E2 LEDs leverage the same XP footprint and are optically compatible with the original XP-E LED, providing drop-in-ready performance enhancements to shorten design cycle and improve customer time-to-market. Characterized and binned at 85°C, the XLamp® XP-E2 White LED delivers up to 20% more lumens-per-watt and double the lumens-per-dollar compared to the original XP-E LED. The XP-E2 White LED can enable a broad range of high-lumen applications, from indoor and outdoor to portable and lamp retrofits. The XLamp XP-E2 Colour LEDs deliver up to 88% higher maximum light output compared to alternative high-power colour LEDs, enabling lighting manufacturers to more cost-effectively address a wide spectrum of applications.

• ANSI-compatible chromaticity bins
• White binned at 85°C
• 1A Maximum drive current
• As low as 5°C/W low thermal resistance
• 110 to 135° Wide viewing angle
• Unlimited floor life at <=30°C/85% RH
• Reflow solderable, JEDEC J-STD-020C compatible
• Electrically neutral thermal path
• REACH compliant
• UL recognized component (E349212)

Applications

LED Lighting, Automotive

Other details

Brand	CREE LED
Part Number	XPEBBL-L1-0000-00201
Quantity
Technical Data Sheet EN
Product Change Notice EN
