Description

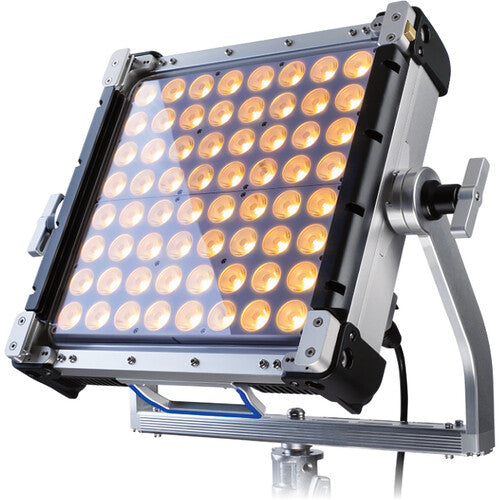

Creamsource Vortex4 Overview
Achieve soft lighting and a wide range of colors, effects, and illumination settings with the Vortex4 Soft RGB LED Light Panel from Creamsource. The Vortex4 Soft is specifically designed for those requiring a soft LED source that blends performance and efficiency with its 325W output. With an open-face 110? beam, this soft version produces up to 9770 lux at 3.3' while keeping the RRGBBW (red, deep red, green, blue, royal blue, white) LED configuration of the Vortex4 hard panel. Users still get full hue/saturation control, 0 to 100% dimming control, and a CRI/TLCI of 95. The Vortex4 series enables a standard wide CCT range of 2200 to 15,000K with four independently controllable zones. Here, Creamsource supplies the essential accessories. The light is delivered with a yoke, a flat diffuser, and a power cable.
Bright Soft Lighting
Vortex4 Soft is a 325W high-power RRGBBW LED all-in-one lighting system in a compact 15 x 15 x 4.8" configuration. Achieve a very bright yet soft output with up to 9770 lux at 3.3' with an open face 110? beam angle.
Advanced Technology
The Vortex Connect feature includes built-in LumenRadio CRMX TimoTwo, Ethernet with sACN, Bluetooth, Wi-Fi, 5-pin DMX, USB-A, and a Creamsource accessory port, enabling a wide range of control possibilities and future protocol support. Additionally, effects, color gels, and the latest FrameSync technology are built into the latest CreamOS architecture. Rigging points have been built into the fixture to accommodate rapid rigging of a large array of units, and the Vortex4 Soft is IP65 water-resistant and sealed for security and efficiency.
High-Speed Capability & Synchronization
The 5000 fps functionality enables flicker-free operation in high-speed modes. Another particularity is a sync input for triggering and syncing to the camera shutter.
IP65 Weather Resistant
The Vortex4 Soft is built and designed to withstand all weather conditions and is rated IP65 for rain, snow, or dust protection. The Vortex4 Soft is an ultraquiet fan-based system with optimum thermal efficiency. The fan system and heatsink placement allow core electronics to be sealed and isolated.
Connectivity
Interaction between Vortex4 Soft and various third-party instruments and protocols is endless, opening various wired and wireless control options. Vortex Connect connectivity options include built-in LumenRadio CRMX TimoTwo, Ethernet, Bluetooth, 5-pin DMX, Wi-Fi, USB-A, and a Creamsource accessory port.
Browser-Based Control
The CreamOS V3.0 has a multilingual web interface that allows you to configure and manage multiple Vortex fixtures from any browser.
Design
Made of durable aluminum and technopolymer, the Vortex4 Soft features a removable quick release yoke, eight 3/8"-16 rigging points, and an integrated power supply. It also includes a dedicated 48 VDC input for battery-powered operation.
Other Details
- 29,100 lumens
- Plus/minus green
- Hue, saturation, XY, gels, and effects
- 0-100% dimming with ultrasmooth low-end mode
- Color LCD screen
- Low-noise variable speed fans
- 50,000-hour estimated LED lifespan
- Waterproof connectors
- Compatible with third-party equipment and apps
UPC: 686696590072
Items Included
- Creamsource Vortex4 Soft RGB LED Light Panel
- Yoke
- Flat Diffuser
- Power Cable
-
Limited 3-Year Manufacturer Warranty
Registration Extension: 2-Year
Additional Resources
No additional resources available
Creamsource Vortex4 Specs
Key Specs
| Item Type |
1x LED Light Panel
|
| Included Storage Case |
No
|
| Photometrics |
3200K: 925 fc / 9960 Lux (Unmodified)
5600K: 907 fc / 9770 Lux (Unmodified) |
| Color Temperature |
2200 to 15,000K
|
| Color Modes |
RGB, Daylight, Tungsten
|
| Color Accuracy Standard |
CRI 95
TLCI 95 |
| Dimming |
App-Controlled / Built-In Dimmer / DMX
|
| Front Accessory Mount |
Proprietary
|
| Wireless Remote Control Type |
Bluetooth
Wireless DMX |
| Power Source |
AC Power (Cable Included)
Battery (Not Included) |
| Battery |
1x Battery Power Station, 48 VDC (Not Included)
|
| Input Power |
48 VDC
100 to 240 VAC, 50 / 60 Hz |
| Power Consumption |
325 W
|
| Fixture Mounting |
8x 3/8"-16 Female Thread
Proprietary |
Light Fixture
| Item Type |
1x LED Light Panel
|
| Included Filters |
Diffusion
|
| Included Storage Case |
No
|
| Photometrics |
3200K:
925 fc / 9960 Lux at 3.3' / 1 m (Unmodified) 112 fc / 1210 Lux at 9.8' / 3 m (Unmodified) 42 fc / 460 Lux at 16.4' / 5 m (Unmodified) 5600K: 907 fc / 9770 Lux at 3.3' / 1 m (Unmodified) 109 fc / 1180 Lux at 9.8' / 3 m (Unmodified) 29 fc / 320 Lux at 16.4' / 5 m (Unmodified) |
| Color Temperature |
2200 to 15,000K
|
| Color Modes |
RGB, Daylight, Tungsten
|
| Color Accuracy Standard |
CRI 95
TLCI 95 |
| Dimming |
App-Controlled / Built-In Dimmer / DMX
|
| Cooling System |
Fan
|
| Expected Lamp Life |
50,000 Hours
|
| Beam Angle |
110?
|
| Built-In Flash |
No
|
| Pixel Zones |
4
|
| Preprogrammed Effects |
Yes
|
| Umbrella Mount |
No
|
| Front Accessory Mount |
Proprietary
|
Connectivity
| Wireless Remote Control Type |
Bluetooth
Wireless DMX |
| Mobile App Compatible |
Yes: iOS Only
App Name: Luminair Functionality: Remote Control |
Power & I/O
| Power Source |
AC Power (Cable Included)
Battery (Not Included) |
| Inputs/Outputs |
1x powerCON TRUE1 AC Power Input
1x Unspecified Power Input (48 VDC at 6.9 A) |
| Battery |
1x Battery Power Station, 48 VDC (Not Included)
|
| Input Power |
48 VDC
100 to 240 VAC, 50 / 60 Hz |
| Included Adapter / Cable |
1x USA Type-A/B to powerCON TRUE1 Cable
|
| Inline Switch |
No
|
| Power Consumption |
325 W
|
Mounting
| Yoke Type |
Manually-Operated Yoke (360? Tilt)
|
| Fixture Mounting |
8x 3/8"-16 Female Thread
Proprietary |
General
| Display |
LCD
|
| Environmental Resistance |
Dust/Water-Resistant (IP65)
|
| Operating Conditions |
Up to 104?F / 40?C
|
| Certifications |
CE, CSA, ETL, FCC, RCM, UKCA
|
| Materials |
Aluminum, Polymer
|
| Dimensions |
15 x 15 x 4.8" / 38.1 x 38.1 x 12.2 cm (Fixture without Yoke)
22.4 x 20.7 x 7.1" / 56.9 x 52.6 x 18 cm (Fixture with Yoke) |
| Weight |
19.6 lb / 8.9 kg (Fixture without Yoke)
23.6 lb / 10.7 kg (Fixture with Yoke) |
Packaging Info
| Package Weight |
33.515 lb
|
| Box Dimensions (LxWxH) |
24.9 x 23 x 8.9"
|
