Description

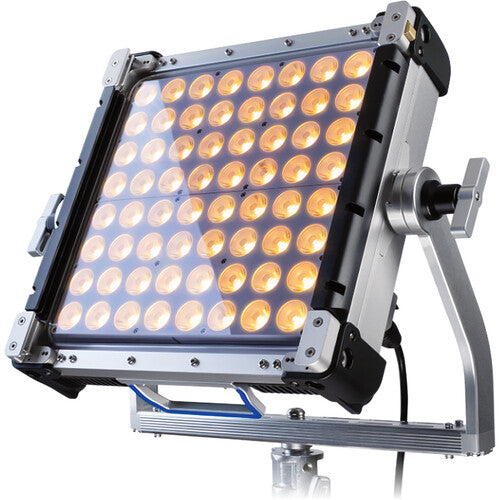

Creamsource Vortex4 Overview
Get high-end production value with a wide range of colors, effects, and illumination settings with the Vortex4 RGB LED Light Panel Pro Kit from Creamsource. This all-in-one lighting system features a punchy 20? beam producing a whopping 53,100 lux at 3.3', RRGBBW (red, deep red, green, blue, royal blue, white) LED configuration, full hue/saturation control, 0 to 100% dimming, and a CRI/TLCI of 95. The fixture can be used with the included flat diffuser or dome modifiers, and the light has an extremely wide CCT range of 2200 to 15,000K with four independently controllable zones. Creamsource also supplies the yoke, a power cable, and a bag for storage and greater portability.
Bright LED Rivaling HMI
Vortex4 is a 325W high-power RRGBBW LED all-in-one lighting system in a compact 15 x 15 x 4.8" configuration, equivalent to an HMI 575W Fresnel. Achieve a bright 53,100 lux at 3.3' with an ultranarrow 20? beam angle.
Advanced Technology
The Vortex Connect feature includes built-in LumenRadio CRMX TimoTwo, Ethernet with sACN, Bluetooth, Wi-Fi, 5-pin DMX, USB-A, and a Creamsource accessory port, enabling a wide range of control possibilities and future protocol support. Additionally, effects, color gels, and the latest FrameSync technology are built into the latest CreamOS architecture. Rigging points have been built into the fixture to accommodate rapid rigging of a large array of units, and the Vortex4 is IP65 water-resistant and sealed for security and efficiency.
High-Speed Capability & Synchronization
The 5000 fps functionality enables flicker-free operation in high-speed modes. Another particularity is a sync input for triggering and syncing to the camera shutter.
IP65 Weather Resistant
The Vortex4 is built and designed to withstand all weather conditions and is rated IP65 for rain, snow, or dust protection. The Vortex4 is an ultraquiet fan-based system with optimum thermal efficiency. The fan system and heatsink placement allow core electronics to be sealed and isolated.
Connectivity
Interaction between Vortex4 and various third-party instruments and protocols is endless, opening various wired and wireless control options. Vortex Connect connectivity options include built-in LumenRadio CRMX TimoTwo, Ethernet, Bluetooth, 5-pin DMX, Wi-Fi, USB-A, and a Creamsource accessory port.
Browser-Based Control
The CreamOS V3.0 has a multilingual web interface that allows you to configure and manage multiple Vortex fixtures from any browser.
Design
Made of durable aluminum and technopolymer, the Vortex4 features a removable quick release yoke, eight 3/8"-16 rigging points, and an integrated power supply. It also includes a dedicated 48 VDC input for battery-powered operation.
Other Details
- Plus/minus green
- Hue, saturation, XY, gels, and effects
- 0-100% dimming with ultrasmooth low-end mode
- Color LCD screen
- Low-noise variable speed fans
- 50,000-hour estimated LED lifespan
- Waterproof connectors
- Compatible with third-party equipment and apps
UPC: 686696589908
Items Included
- Creamsource Vortex4 RGB LED Light Panel (Pro Kit)
- Yoke
- Creamsource Vortex4 Dome
- Flat Diffuser
- Power Cable
- Creamsource Soft Bag for Vortex4
-
Limited 3-Year Manufacturer Warranty
Registration Extension: 2-Year
Additional Resources
No additional resources available
Creamsource Vortex4 Specs
Key Specs
| Item Type |
1x LED Light Panel
|
| Included Light Modifier |
1x Dome
|
| Included Storage Case |
Yes
|
| Photometrics |
3200K: 4505 fc / 48,500 Lux
5600K: 4932 fc / 53,100 Lux |
| Color Temperature |
2200 to 15,000K
|
| Color Modes |
RGB, Daylight, Tungsten
|
| Color Accuracy Standard |
CRI 95
TLCI 95 |
| Dimming |
DMX
? 0 to 100% |
| Front Accessory Mount |
Proprietary
|
| Wireless Remote Control Type |
Bluetooth
Wireless DMX |
| Power Source |
AC Power (Cable Included)
|
| Battery |
1x Battery Power Station, 48 VDC (Not Included)
|
| Input Power |
48 VDC at 6.9 A
100 to 240 VAC, 50 / 60 Hz at 3.3 A |
| Power Consumption |
325 W
|
| Fixture Mounting |
8x 3/8"-16 Female Thread
|
Light Fixture
| Item Type |
1x LED Light Panel
|
| Included Light Modifier |
1x Dome
|
| Included Storage Case |
Yes
|
| Photometrics |
3200K:
4505 fc / 48,500 Lux at 3.3' / 1 m 622 fc / 6700 Lux at 9.8' / 3 m 232 fc / 2500 Lux at 5600K: 4932 fc / 53,100 Lux at 3.3' / 1 m 678 fc / 7300 Lux at 9.8' / 3 m 250 fc / 2700 Lux at 16.4' / 5 m |
| Color Temperature |
2200 to 15,000K
|
| Color Modes |
RGB, Daylight, Tungsten
|
| Color Accuracy Standard |
CRI 95
TLCI 95 |
| Dimming |
DMX
? 0 to 100% |
| Cooling System |
Fan
|
| Expected Lamp Life |
50,000 Hours
|
| Beam Angle |
20?
|
| Built-In Flash |
No
|
| Preprogrammed Effects |
Yes
|
| Umbrella Mount |
No
|
| Front Accessory Mount |
Proprietary
|
Connectivity
| Wireless Remote Control Type |
Bluetooth
Wireless DMX |
| Mobile App Compatible |
No
|
Power & I/O
| Power Source |
AC Power (Cable Included)
|
| Inputs/Outputs |
1x powerCON TRUE AC Power Input
1x Unspecified Power Input (48 VDC) 1x XLR 5-Pin DMX Input 1x XLR 5-Pin DMX Output |
| Battery |
1x Battery Power Station, 48 VDC (Not Included)
|
| Input Power |
48 VDC at 6.9 A
100 to 240 VAC, 50 / 60 Hz at 3.3 A |
| Included Adapter / Cable |
Yes
|
| Inline Switch |
No
|
| Power Consumption |
325 W
|
Mounting
| Yoke Type |
Manually-Operated Yoke
|
| Fixture Mounting |
8x 3/8"-16 Female Thread
|
General
| Display |
LCD
|
| Environmental Resistance |
Dust/Water-Resistant (IP65)
|
| Operating Conditions |
Up to 104?F / 40?C
|
| Certifications |
CE, ETL, FCC
|
| Materials |
Aluminum, Polymer
|
| Dimensions |
15 x 15 x 4.8" / 38.1 x 38.1 x 12.2 cm (Fixture without Yoke)
22.4 x 20.7 x 7.1" / 56.9 x 52.6 x 18 cm (Fixture with Yoke) |
| Weight |
21.8 lb / 9.9 kg (Fixture without Yoke)
25.6 lb / 11.6 kg (Fixture with Yoke) |
Packaging Info
| Package Weight |
42.8 lb
|
| Box Dimensions (LxWxH) |
27.25 x 24.5 x 13.5"
|
