Description
Cre8audio MR. PHIL TER Overview
- 1Description
- 2Envelope
- 3Amp In (VCA)
- 4Classic Low-Pass Ladder Filter

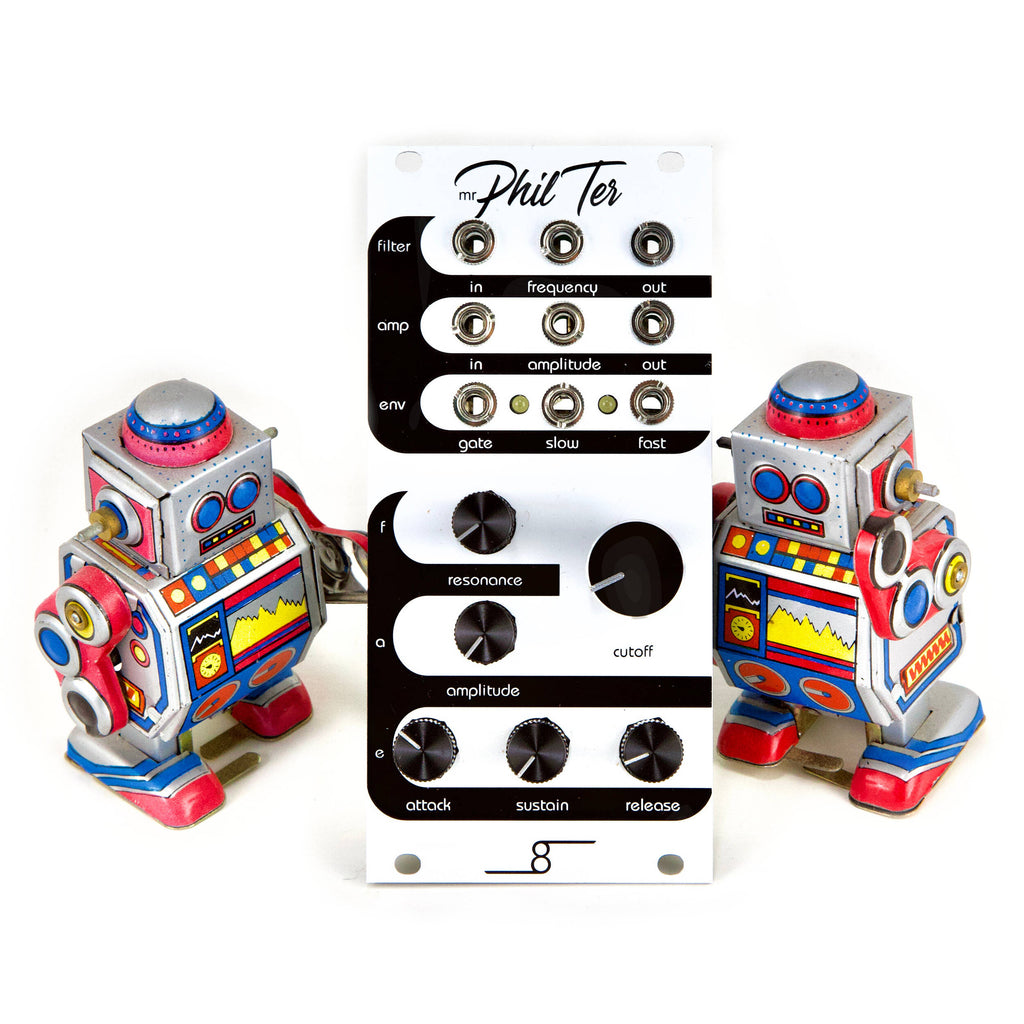

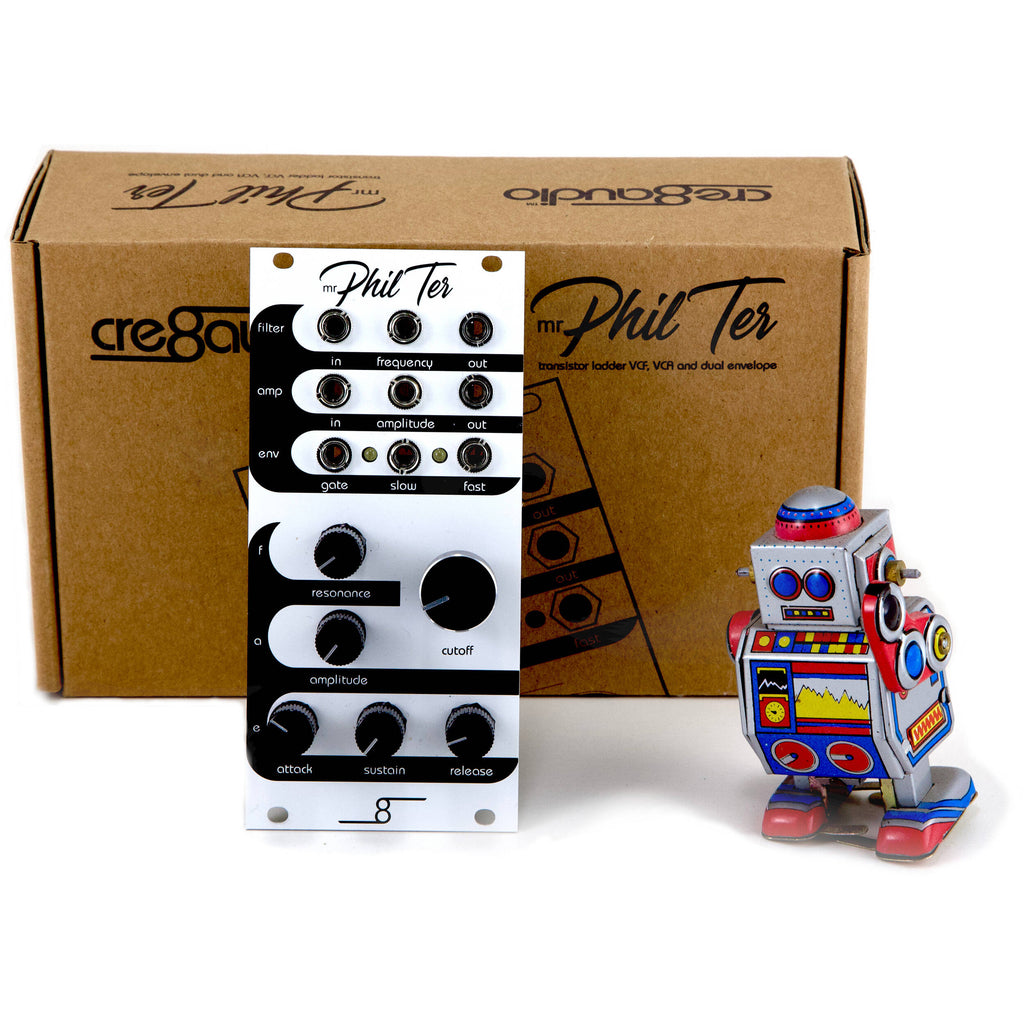

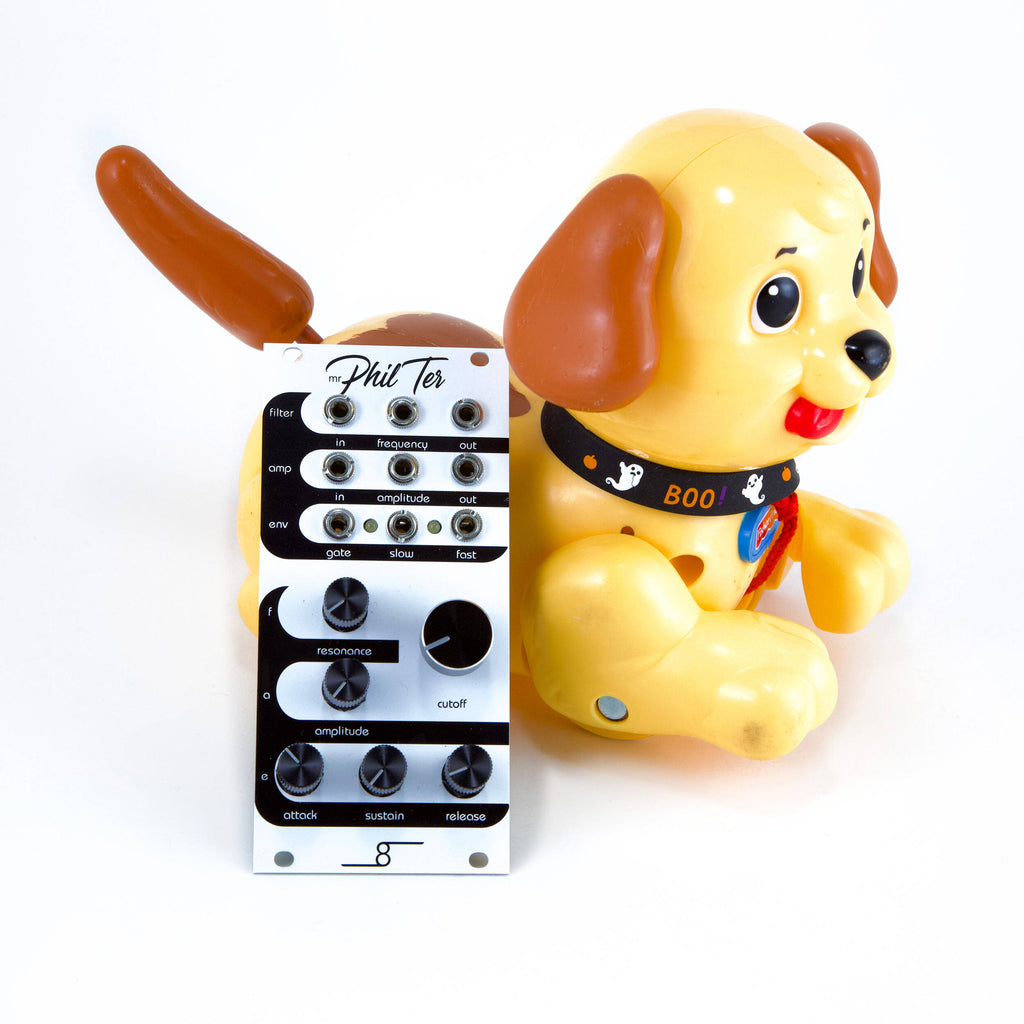

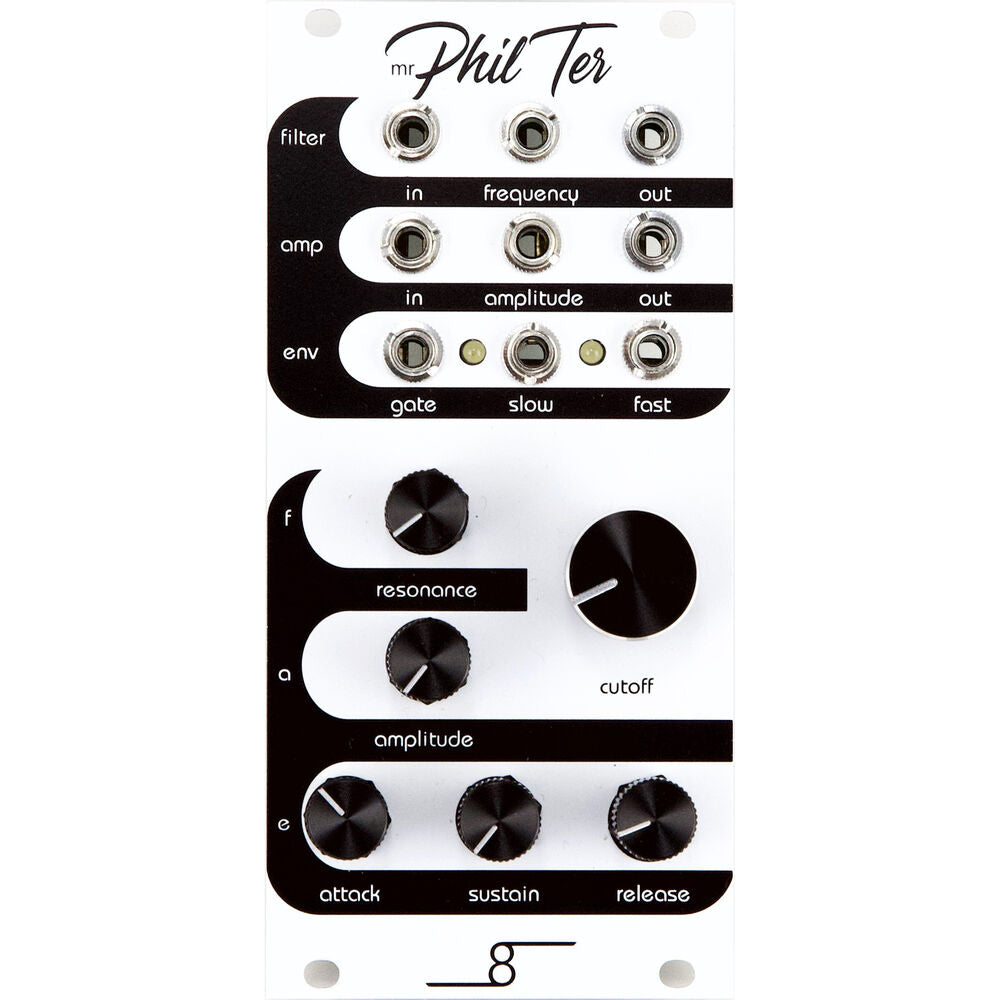

Music producers, sound designers, and analog synthesizer enthusiasts looking for a compact Eurorack module packed with features will be pleased with the Cre8audio Mr. Phil Ter, a 12 HP voltage-controlled amplifier (VCA), envelope generator, and filter.
The Mr. Phil Ter's envelope generator is digital and features slow and fast attack, release, and decay times. A special Easter Egg mode allows the unit to quantize itself to 7-bit for a steppy sample-and-hold effect.
The analog bits, which consist of the VCA and filter, were developed in partnership with Pittsburg Modular Synthesizers. The VCA allows you to control the amplitude of audio and CV signals. Use the onboard control knob or patch in a CV signal for an animated response. The filter is a classic low-pass transistor ladder filter that's capable of self oscillation when the resonance is cranked, resulting in a clean, trackable sine wave.
Envelope
- Voltage range: 0 to 10V
- Gate trigger threshold voltage: +5V
- Attack, Release, and Decay times 0 to 10 sec (slow). 0 to 5 sec (fast)
- Easter egg mode: quantizes itself to 7-bit for a steppy sample-and-hold effect
Amp In (VCA)
Classic Low-Pass Ladder Filter
In the Box
- Cre8audio Mr. Phil Ter VCA, Envelope Generator, and Ladder Filter Eurorack Module (12 HP)
- Limited 1-Year Warranty with Registration within 14 Days of Purchase
- Description
- Envelope
- Amp In (VCA)
- Classic Low-Pass Ladder Filter
Cre8audio MR. PHIL TER Specs
| Power Specifications | Power Draw +12 V Rail: 33 mA +5 V Rail: 22 mA -12 V: 36 mA |
| Envelope | Voltage Range: 0 to10 V Gate Trigger Threshold Voltage: +5 V Attack, Release, and Decay: Slow: 0 to 10 sec Fast: 0 to 5 sec |
| Size | Horizontal Pitch (HP): 12 |
| Depth | 1" / 26 mm |
| Weight | Not Specified by Manufacturer |
| Package Weight | 0.455 lb |
| Box Dimensions (LxWxH) | 7.6 x 4.5 x 2.5" |
