Description
Cre8audio EastBeast Overview
- 1Description
- 2East-Coast-Style Semimodular Analog Synthesizer
- 3
- 4Mighty Big Oscillator
- 5PGH Filter
- 6Envelope and LFO
- 7Get Patched
- 8MIDI
- 9Performance Features

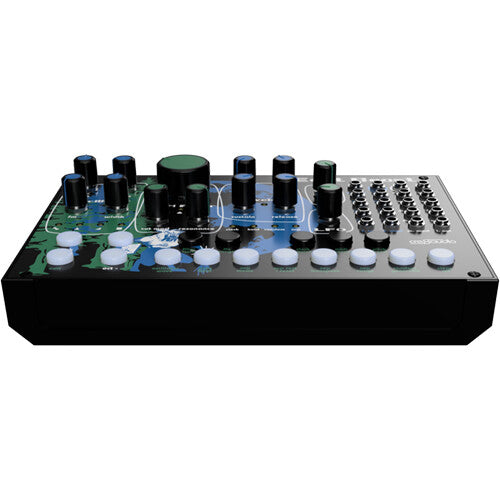

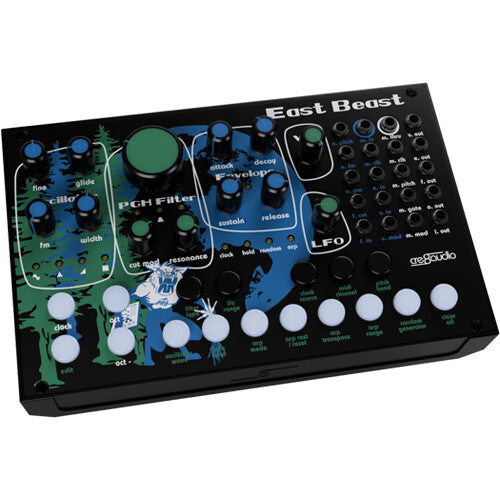

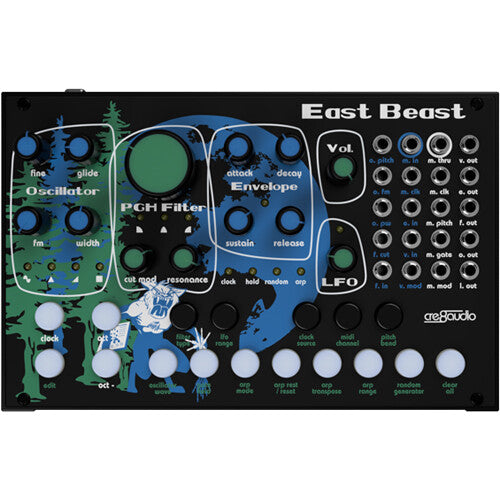

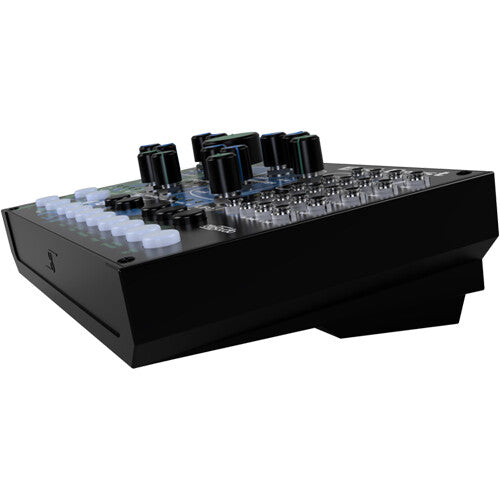

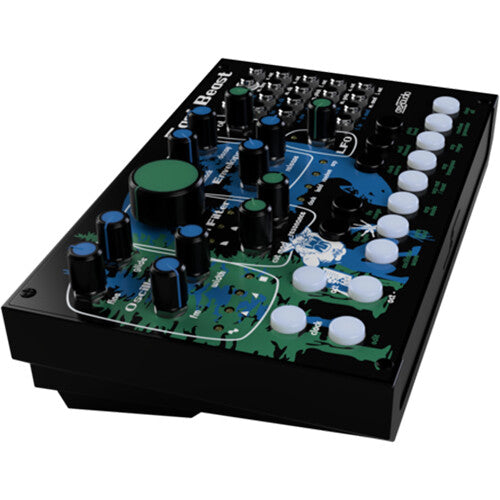

East-Coast-Style Semimodular Analog Synthesizer
Analog synthesizer fans in search of an affordable 100% analog synthesizer will love the
Cre8audio East Beast, an east-coast-style semimodular synthesizer with a big, fat-sounding voltage-controlled oscillator, a multimode filter, and several performance features. The instrument can be removed from its desktop enclosure and placed into a 40 HP Eurorack case.
Mighty Big Oscillator
- East Beast�s oscillator, designed in partnership with the too-serious-for-words people from Pittsburgh Modular Synthesizers, is a part of their 5th generation of analog oscillators stemming from a superserious 10 years of continued research into analog oscillator development.
- Its circuitry is not a clone or based on any outside designs. It is made with 100% modern components. This keeps it very stable, and giving it a super-rich, and unique sound.
- Oscillator waveforms�sine, triangle, saw, and square

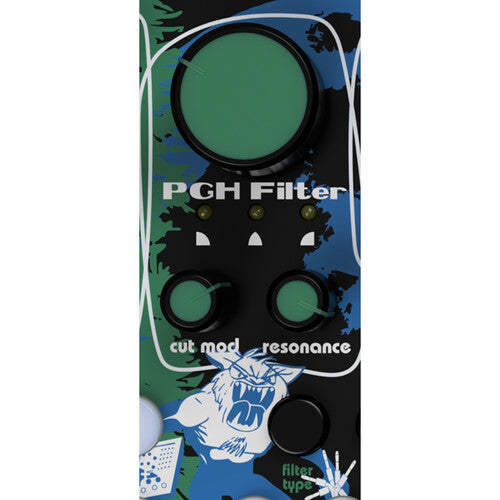

PGH Filter
- Most of the filters you are used to hearing are transistor ladder filters, or copies of transistor ladder filters. This is not one of those. The whole goal in making this filter was to create a creamy smooth filter with no dead spots, a very common phenomenon in all filters, but check it out. No dead spots. From nasally to biting and elsewhere, it�s all one large sweet spot.
- East Beast�s filter is a multimode filter, meaning it can be used as a low-pass filter, high-pass filter, bandpass filter, or a combination of the three for an even wider sonic palate.
Envelope and LFO
To further sculpt the sounds, Cre8audio have included an envelope generator and LFO. The custom envelope circuit creates a snappy, percussive attack for expressive performance. The dual range LFO opens up a wide range of LFO and audio rate modulation possibilities.
Get Patched
Semimodular means that the East Beast will work without any patch cables or anything. But what fun is that? Who doesn't want to get wacky with their own personal spaghetti mess of cables sticking out of their synthesizer? At the very least, it makes you look sophisticated to anyone observing. In any case, East Beast has a whopping 18 Eurorack patchpoints betwixt you can patch and connect to your other gear.
MIDI
- The East Beast offers a fancy MIDI in and MIDI thru, so you can chain multiple MIDI monstrosities together.
- Enjoy plugging a MIDI controller into East Beast and rocking out and/or sequencing like mad? Again, no judgment.
Performance Features
East Beast includes quite a few additional performance features including a built-in tap-tempo clock, arpeggiator, and sequencer. There are a lot of opportunities to inject some randomness, too.
In the Box
- Cre8audio East Beast Analog East-Coast-Style Semimodular Synthesizer
- Power Adapter
- 4 x Nazca Noodles Patch Cables
- 2 x 3.5mm to 5-Pin DIN MIDI Pigtails
- Limited 1-Year Manufacturer Warranty
Table of Contents
- Description
- East-Coast-Style Semimodular Analog Synthesizer
- Mighty Big Oscillator
- PGH Filter
- Envelope and LFO
- Get Patched
- MIDI
- Performance Features
Cre8audio EastBeast Specs
Key Specs
| Sound Generation |
Analog
|
| Maximum Polyphony |
Not Specified by Manufacturer
|
| Audio I/O |
1 x 1/8" / 3.5 mm TS Unbalanced Mono Line Output
|
| MIDI I/O |
1 x 1/8" / 3.5 mm TRS Input (DIN 5-Pin Adapter Included)
1 x 1/8" / 3.5 mm TRS Output (DIN 5-Pin Adapter Included) |
| CV/Gate I/O |
9 x 1/8" / 3.5 mm CV/Gate Input
9 x 1/8" / 3.5 mm CV/Gate Output |
| Patch Points |
10 x 1/8" / 3.5 mm Input
10 x 1/8" / 3.5 mm Output |
| Eurorack Current Consumption |
213 mA on +12 V Rail
151 mA on -12 V Rail |
| Horizontal Pitch |
40 HP
|
General
| Item Type |
Desktop Synth Module
|
| Sound Generation |
Analog
|
| Keyboard |
No
|
| Expression Controls |
No
|
| Number of Pads |
No
|
| Display |
No
|
Sounds
| Maximum Polyphony |
Not Specified by Manufacturer
|
| Built-In Effects |
Yes
|
| Built-In Speaker |
Yes
|
Synthesis
| Oscillators |
1 x Variable (FM, Noise, Sawtooth, Sine, Triangle)
|
| Filters |
Number of Filters: 1 per Patch
Characteristic: Analog SEM-Style Type: Low-Pass, Band-Pass, High-Pass |
| LFOs |
Number of LFOs: 1 x Global
Waveforms: Triangle LFO Rate: 2 to 500 Hz Controls/Modes: Clock Sync |
Sequencing & Recording
| Sequencer |
Number of Steps: 32 x Step
Number of Sequencer Patterns: 13 x User |
| Arpeggiator |
Yes
|
Connectivity
| Audio I/O |
1 x 1/8" / 3.5 mm TS Unbalanced Mono Line Output
|
| Pedal Support |
No
|
| MIDI I/O |
1 x 1/8" / 3.5 mm TRS Input (DIN 5-Pin Adapter Included)
1 x 1/8" / 3.5 mm TRS Output (DIN 5-Pin Adapter Included) |
| CV/Gate I/O |
9 x 1/8" / 3.5 mm CV/Gate Input
9 x 1/8" / 3.5 mm CV/Gate Output |
| Control Voltage Level |
+10 V
|
| Patch Points |
10 x 1/8" / 3.5 mm Input
10 x 1/8" / 3.5 mm Output |
| Sync I/O |
No
|
| Network I/O |
No
|
| USB |
No
|
| Media/Memory Card Slot |
No
|
Compatibility
| Included Software |
No
|
| Mobile App Compatible |
No
*As of December, 2022: Check with manufacturer for the most up-to-date compatibility |
Power
| Power Requirements |
AC/DC Power Adapter (Included)
|
| Eurorack Current Consumption |
213 mA on +12 V Rail
151 mA on -12 V Rail |
| AC/DC Power Adapter |
12 VDC (Included)
|
Physical
| Color |
Black
|
| Horizontal Pitch |
40 HP
|
| Included Accessories |
No
|
Packaging Info
| Package Weight |
2.515 lb
|
| Box Dimensions (LxWxH) |
12.5 x 8.5 x 4"
|
