Countryman Isomax 2 Overview
- 1 Description
- 2 Unparalleled Precision
- 3 Complete Control
- 4 Effortless Possibilities
- 5 Polar Pattern
The black I2 Instrument Microphone, Standard Gain, with TA4F Connector for Revolabs HD Wireless Transmitters from Countryman is a mic that has been engineered from the ground up for natural on- and off-axis frequency response, low-noise, and precise polar patterns with deep nulls. This tiny instrument microphone can be used to capture audio in sound reinforcement applications for saxophone, violin, viola, cello, double bass, acoustic guitars, piano, brass, and percussion instruments.
The I2 instrument microphone is suitable for distance miking that is invisible in front of audiences and on camera. This version offers a standard gain and is suitable for close miking and loud instruments like horns. It is supplied with a foam windscreen, a basic clip, and a carrying case. In addition, the 5' cable is permanently attached to the mic and terminates to a TA4F connector for direct connection to Revolabs HD wireless bodypack transmitters.
Unparalleled Precision
The I2 maintains excellent pattern control and frequency response at all angles. It offers uncolored recordings and reduced feedback issues.
Complete Control
Flexible close miking techniques can be aided by the various selection of instrument mounts (sold separately), which position securely and gently to strings, brass, and more.
Effortless Possibilities
Small size and sonic precision makes this microphone suitable for X-Y, M-S, and other techniques that rely on accurate, coincident positioning, and consistent patterns.
Polar Pattern
The cardioid polar pattern is effective for picking up sound directly in front of the microphone and is less sensitive to sound directly behind the microphone. It picks up about 1/3 less ambient noise than the omnidirectional polar pattern, so the working distance (the distance a performer could be positioned from the microphone) is approximately 1.7 times that of the omni. The cardioid pattern works best when you can position the microphone directly towards the sound you wish to record (a lead singer, for example) and directly away from unwanted sound sources like a crowd or a loud monitor).

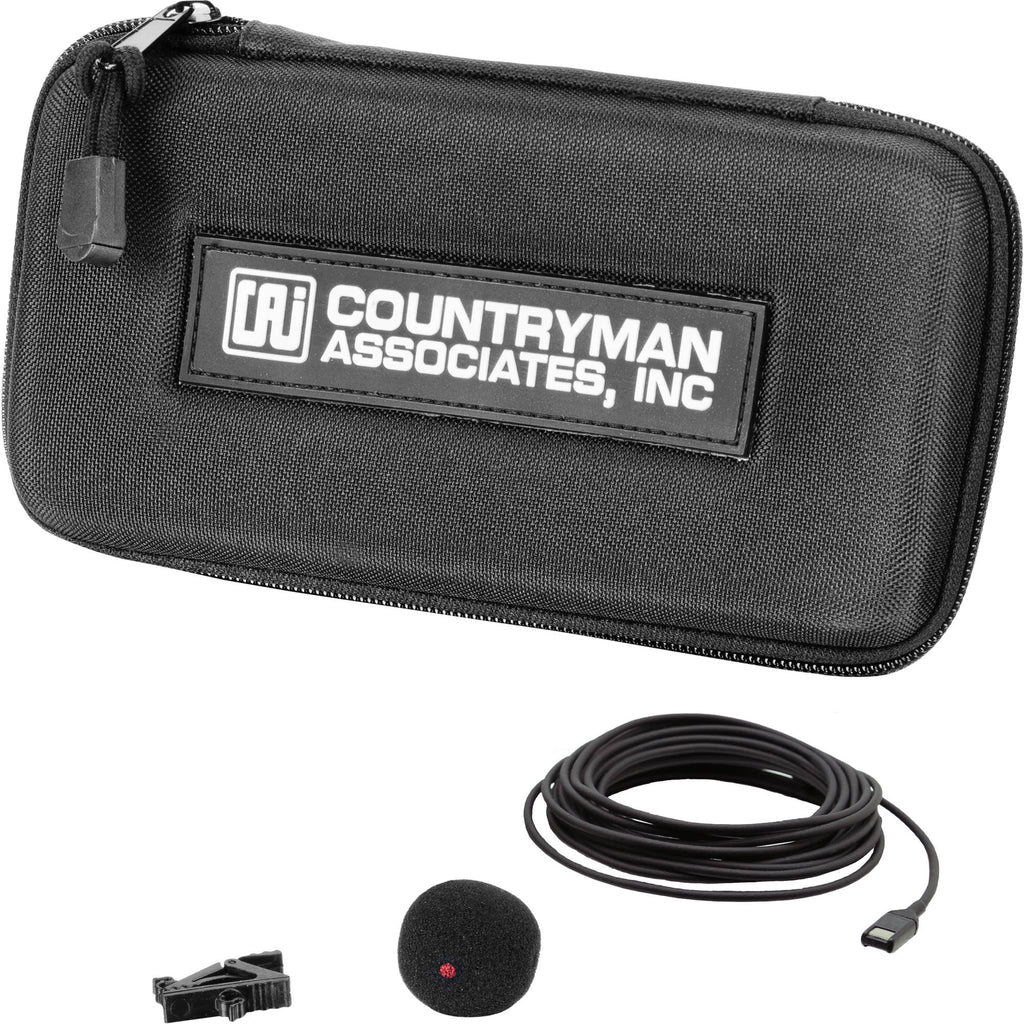

In the Box
- Countryman I2 Instrument Mic, Standard Gain, with TA4F Connector for Revolabs HD Wireless Transmitters (Black)
- Foam Windscreen
- Basic Clip
- Carrying Case
- Limited 1-Year Warranty
Table of Contents
- Description
- Unparalleled Precision
- Complete Control
- Effortless Possibilities
- Polar Pattern
Countryman Isomax 2 Specs
Microphone
| Form Factor | Instrument-Mount |
| Sound Field | Mono |
| Capsule | 1 x Electret Condenser |
| Polar Pattern | Cardioid |
| Windscreen | Foam (Included) |
Performance
| Frequency Range | 50 Hz to 20 kHz |
| Maximum SPL | 150 dB SPL (1% THD) |
| Sensitivity | -56.5 dBV/Pa (1 kHz) |
| Output Level | 1.5 mV/Pa |
| Equivalent Noise Level | 38 dB A-Weighted |
Connectivity
| Output Connectors | 1 x TA4/Mini XLR 4-Pin Female |
| Cable Length | 5' / 1.52 m |
Power
| Operating Current Consumption | 4 mA |
Physical
| Color | Black |
| Mounting | Mic Clip (Included) |
| Dimensions | H: 0.28 x W: 0.41 x L: 0.14" / H: 7 x W: 10.5 x L: 3.5 mm |
