Description
Corsair RM1200x Overview
- 1Description
- 2SHIFT Design
- 380 PLUS Gold Efficiency
- 4Cooling Fan
- 5105° Capacitors
- 6Case Compatibility
Streamline your installation process while also giving your system ample power with the Corsair RM1200x SHIFT 80 PLUS Gold Modular Power Supply. Not only does the SHIFT allow you to pick and choose the cables you need for your equipment, but it also places Corsair's Type 5 Gen 1 micro-fit PSU connectors on the side, working alongside your dedicated cable management spaces for a more organized experience.
Offering up to 1200W and built off the ATX 12V Version 3.0 standard, you are able to deliver ample power to your gaming-focused components with ease while balancing electrical loads. Modular cable design allows you to pick and choose which cables you need or want to use depending on your system's configuration, giving you more breathing room inside the case while reducing cable clutter. Aside from the standard motherboard and CPU cables, you also get an array of PCIe cables giving you a total of eight connectors between four 6+2 connectors on four cables and two 6+2 connectors on two split cables. For NVIDIA 40 series graphics cards, a single dedicated 12VHPWR cable is included that further reduces cable clutter. You also get 16 SATA connections and eight PATA connectors for storage drives and peripherals, respectively.
In the Box
- Corsair RM1200x SHIFT 80 PLUS Gold Modular Power Supply
- 24-Pin ATX Cable
- 2 x 8-Pin (4+4) EPS ATX12V Cables
- 12+4-Pin 12VHPWR Cable
- 6+2-Pin 1-to-2 PCIe Cable
- 6+2-Pin 1-to-1 PCIe Cable
- SATA Cables
- PATA Cables
- Limited 10-Year Manufacturer Warranty
- Description
- SHIFT Design

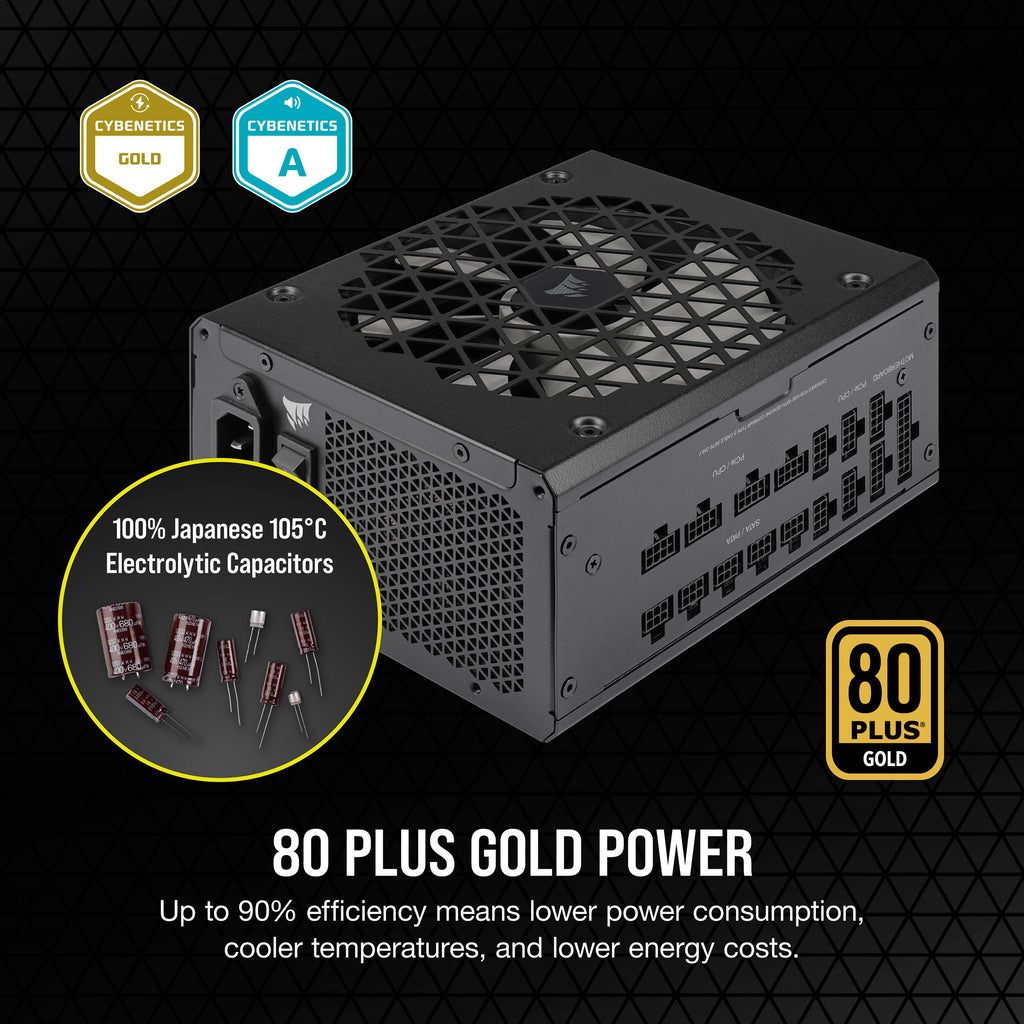

- 80 PLUS Gold Efficiency
- Cooling Fan
- 105° Capacitors
- Case Compatibility
Corsair RM1200x Specs
| Total Connectors |
1x 20+4-Pin ATX Motherboard
2x 8-Pin EPS CPU 1x 16-Pin PCIe (12VHPWR) 4x 6+2-Pin PCIe 4x 6+2-Pin PCIe 12x 15-Pin SATA 8x 4-Pin Peripheral / Molex |
| Cable Design |
Flat, Modular
|
| Total Wattage |
1200 W
|
| Number of +12 V Rails |
1
|
| Efficiency Rating |
80 PLUS Gold
|
| Form Factor |
ATX
|
| Total Connectors |
1x 20+4-Pin ATX Motherboard
2x 8-Pin EPS CPU 1x 16-Pin PCIe (12VHPWR) 4x 6+2-Pin PCIe 4x 6+2-Pin PCIe 12x 15-Pin SATA 8x 4-Pin Peripheral / Molex |
| Cable Design |
Flat, Modular
|
| PCIe Connector Distances |
29.5" / 750 mm
|
| SATA Connector Distances |
31.5" / 800 mm
|
| Peripheral Connector Distances |
29.5" / 750 mm
|
| ATX Connector Distance |
24" / 610 mm
|
| EPS Connector Distances |
25.6" / 650 mm
|
| Total Wattage |
1200 W
|
| Number of +12 V Rails |
1
|
| Combined Power for +12 V |
1200 W
|
| Max Load for +12 V |
100 A
|
| Combined Power for +3.3/+5 V |
150 W
|
| Max Load for +3.3 V |
20 A
|
| Max Load for +5 V |
20 A
|
| Max Power for +5 Vsb |
15 W
|
| Max Load for +5 Vsb |
3 A
|
| Peak Power |
1200 W
|
| AC Input Power |
100 to 240 VAC, 50 / 60 Hz at 5 to 10 A
|
| Efficiency Rating |
80 PLUS Gold
|
| Active Power Factor Correction |
No
|
| Efficiency |
87% at 20% Load
90% at 50% Load 87% at 100% Load |
| Fan Size |
140 mm
|
| Form Factor |
ATX
|
| Compliance |
ATX 12 V v3.0
|
| Protection |
Over-Current Protection, Over-Power Protection, Over-Temperature Protection, Over-Voltage Protection, Short-Circuit Protection
|
| Mean Time Between Failures (MTBF) |
100,000 Hours
|
| Dimensions |
7.1 x 5.9 x 3.4" / 180 x 150 x 86 mm
|
| Package Weight |
8.645 lb
|
| Box Dimensions (LxWxH) |
12.6 x 8.5 x 6"
|
