Description

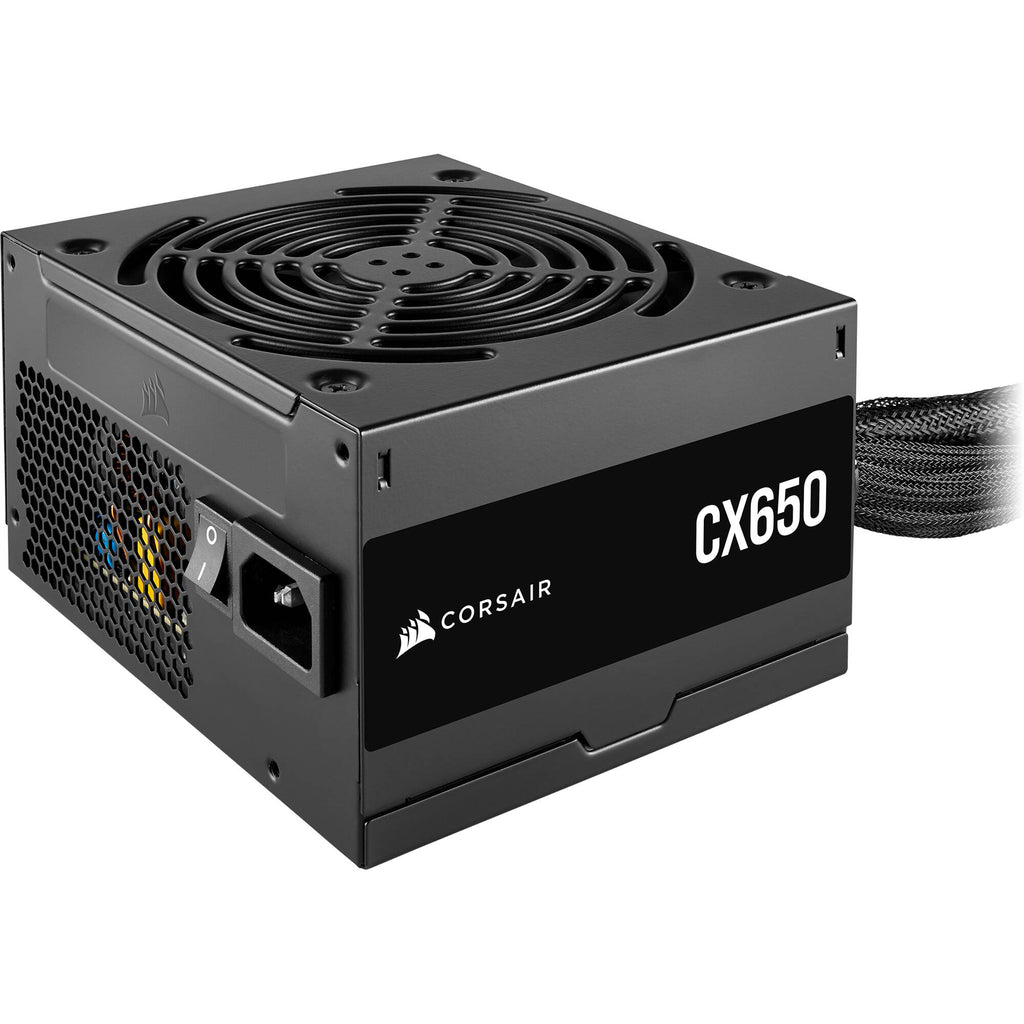

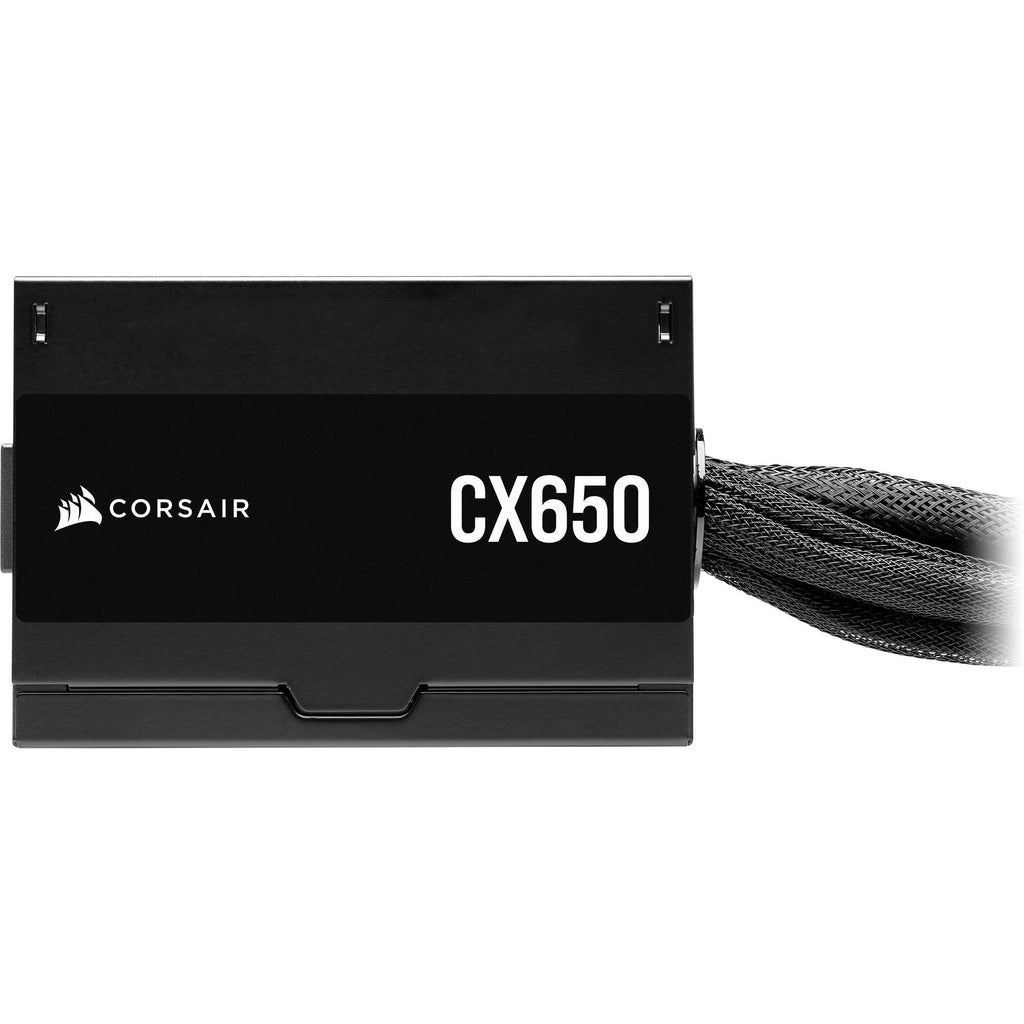

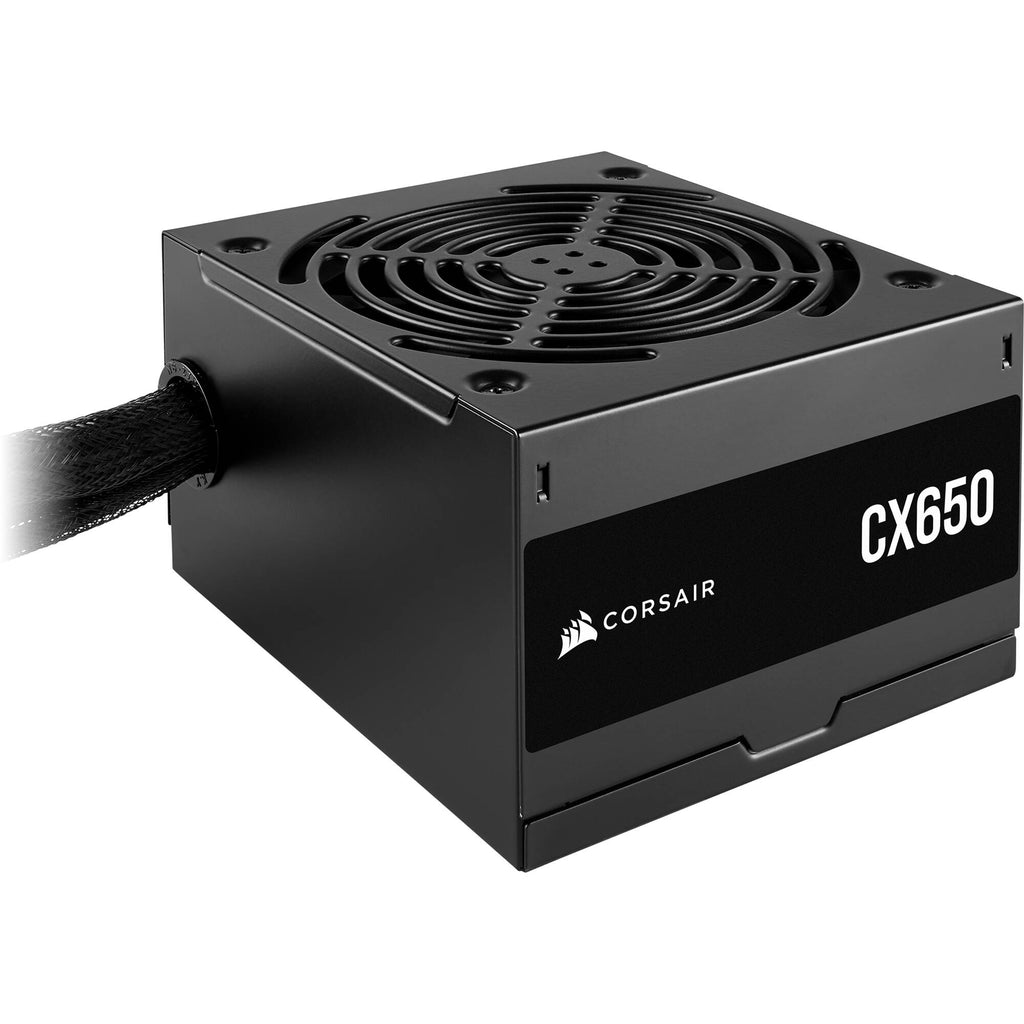

Corsair CX650 Overview

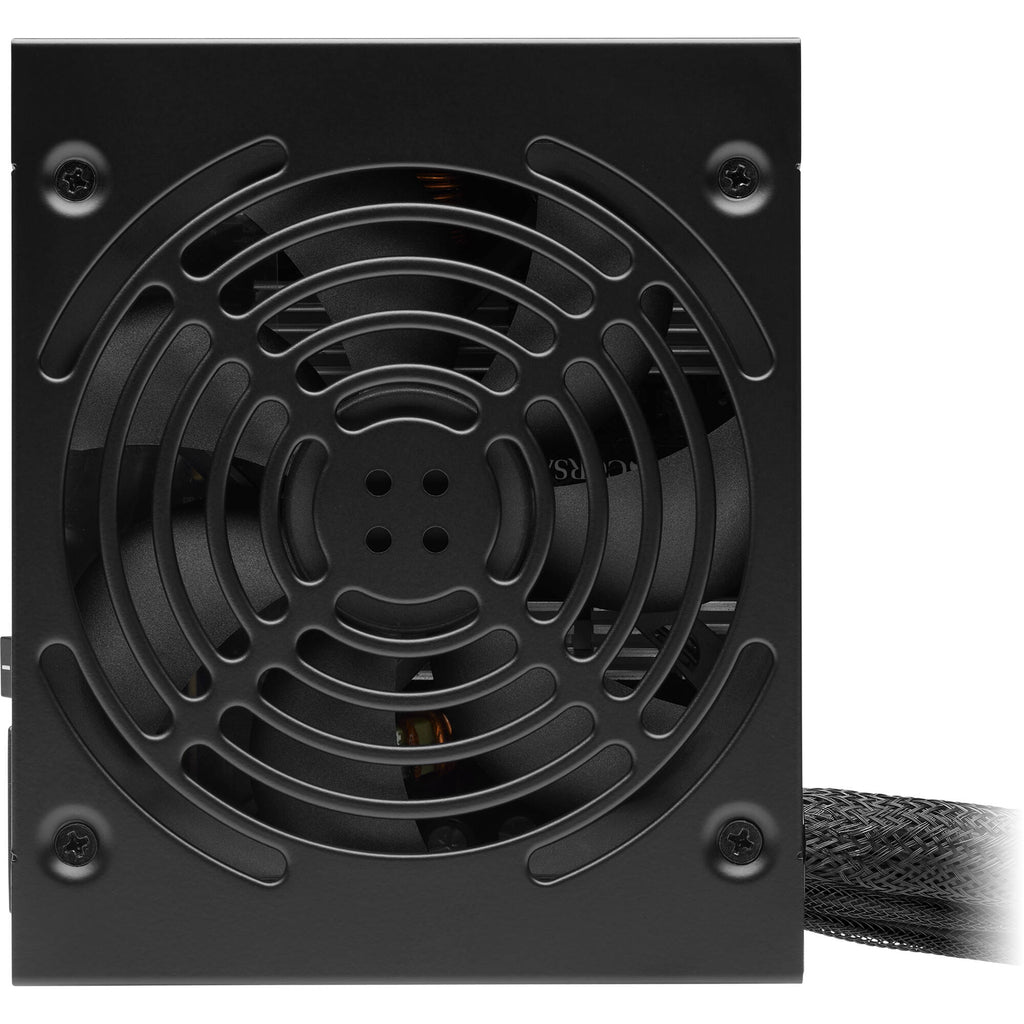

Provide reliable power to your computer with the Corsair CX Series CX650 650W 80 PLUS Bronze ATX Power Supply. Utilizing a single +12V rail, this non-modular power supply meets ATX 2.31 specifications and provides 650W of power to your next PC build. A single 120mm fan keeps the power supply cool to improve efficiency while remaining quiet. Along with the 24-pin ATX connector, there are two PCIe connectors, three SATA connectors, two PATA connectors, and an EPS connector to supply power to various areas of your motherboard.
80 Plus Bronze
The 80 PLUS Bronze rating delivers 88% operational efficiency at full load, generating less heat to lower your energy cost.
UPC: 840006670933
In the Box
- Corsair CX Series CX650 650W 80 PLUS Bronze ATX Power Supply
- AC Power Cord
- Pack of Mounting Screws
- Limited 5-Year Manufacturer Warranty
Additional Resources
Corsair CX650Specs
Key Specs
| Total Connectors |
1x 24-Pin ATX Motherboard
1x 4+4-Pin EPS CPU 2x 6+2-Pin PCIe 3x 6-Pin SATA / Peripheral 2x 4-Pin Peripheral / Molex |
| Cable Design |
Flat
|
| Total Wattage |
650 W
|
| Number of +12 V Rails |
1
|
| Efficiency Rating |
80 PLUS Bronze
|
| Form Factor |
ATX
|
Connectivity
| Total Connectors |
1x 24-Pin ATX Motherboard
1x 4+4-Pin EPS CPU 2x 6+2-Pin PCIe 3x 6-Pin SATA / Peripheral 2x 4-Pin Peripheral / Molex |
| Cable Design |
Flat
|
| PCIe Connector Distances |
19.7" / 500 mm
3.9" / 100 mm |
| SATA Connector Distances |
15.7" / 400 mm
3.9" / 100 mm 3.9" / 100 mm |
| Peripheral Connector Distances |
15.7" / 400 mm
3.9" / 100 mm |
| ATX Connector Distance |
23.6" / 600 mm
|
| EPS Connector Distances |
23.6" / 600 mm
|
Electrical
| Total Wattage |
650 W
|
| Number of +12 V Rails |
1
|
| Combined Power for +12 V |
624 W
|
| Max Load for +12 V |
52 A
|
| Combined Power for +3.3/+5 V |
130 W
|
| Max Load for +3.3 V |
24 A
|
| Max Load for +5 V |
20 A
|
| Max Power for +5 Vsb |
15 W
|
| Max Load for +5 Vsb |
3 A
|
| Max Power for -12 V |
3.6 W
|
| Max Load for -12 V |
0.3 A
|
| AC Input Power |
100 to 240 VAC, 50 / 60 Hz
|
General
| Efficiency Rating |
80 PLUS Bronze
|
| Active Power Factor Correction |
No
|
| Efficiency |
88%
|
Cooling
| Fan Size |
120 mm
|
Physical
| Form Factor |
ATX
|
| Mean Time Between Failures (MTBF) |
100,000 Hours
|
| Dimensions |
4.9 x 3.4" / 125 x 86 mm
|
Packaging Info
| Package Weight |
4.81 lb
|
| Box Dimensions (LxWxH) |
10.5 x 6.9 x 4"
|
