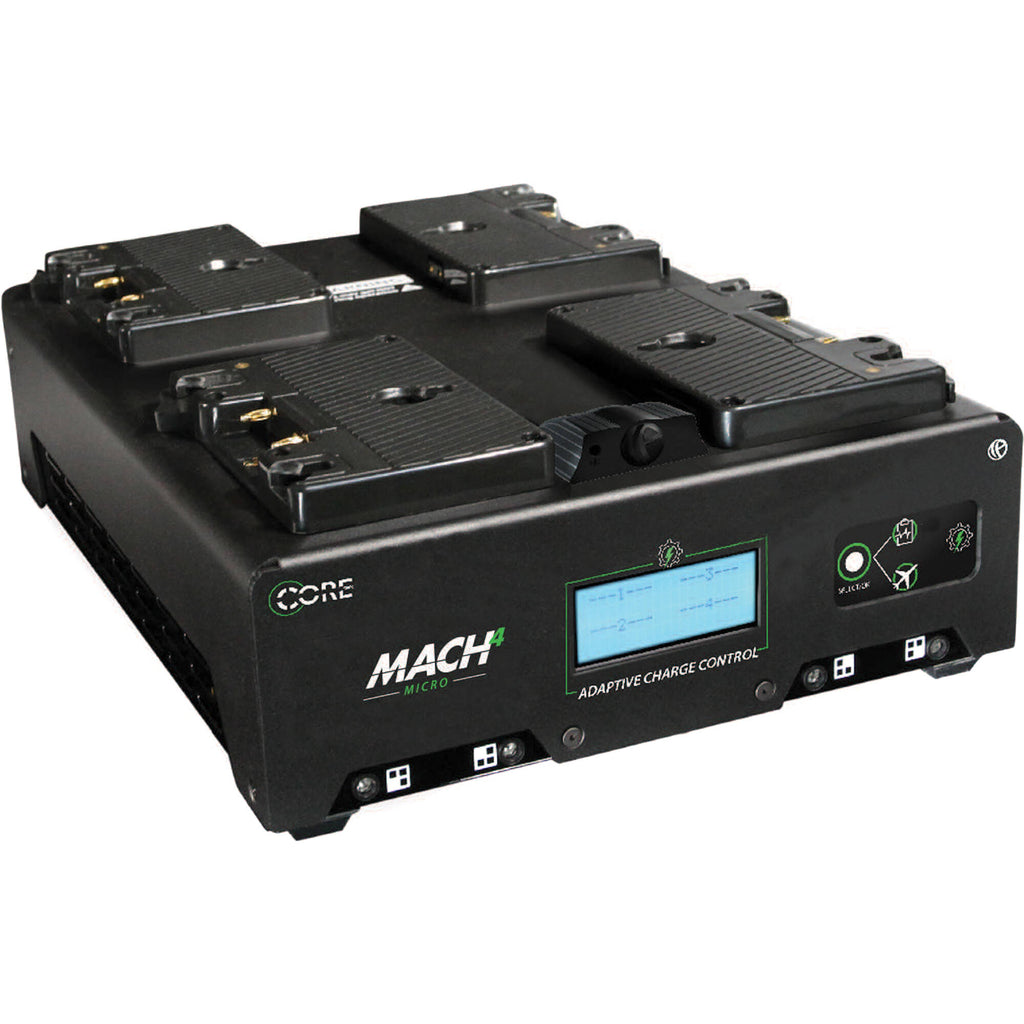

Core SWX Mach4 Micro Overview
Four independent charge bays on the Gold mount Mach4 Micro Four-Position Battery Charger from Core SWX can charge four 98Wh batteries in less than 1 hour and 40 minutes, thanks to its 4A quick charge current. Adaptive charge control technology improves battery longevity by 30% by taking into account the age, cycle count, and last full charge of your batteries. When in charge mode, the device monitors the pack for feedback and adjusts as needed so as not to overcharge the battery and to account for changes in cell performance over time. Red and green LED indicators and an LCD screen show the charging status for easy monitoring. The unit is compatible with the cloud-based VoltBridge Mesh monitoring platform to supervise your battery's status via a single IP connection.
On top of this battery management functionality, the Mach4 Micro features SafeFly discharge mode. When the AC main power is disconnected, the charger will add standalone discharge to reduce the connected batteries to under 30% power for safe transport. Enabling this feature is as simple as touching the onboard button or using the compatible Voltbridge app. The device supports 90 to 240 VAC power via its IEC connection for worldwide use. A recessed carry handle makes traveling with the Mach4 Micro a breeze, and its aluminum construction ensures a durable but lightweight design.
Core SWX Mach4 Micro Specs
Mount / Series Type |
Gold Mount |
Number of Battery Bays |
4 |
Output |
C13 IEC Male XLR 4-Pin Female |
Electrical
AC Input Power |
90 to 240 VAC, 50 / 60 Hz |
Power Output |
Gold Mount: VDC at 4 A |
Multi-Bay Charging Modes |
Simultaneous |
Recharge Time |
90 Minutes (98 Wh Batteries) |
General
Indicator |
LCD Display, LED |
Dimensions |
12.4 x 8.9 x 3.4" / 315 x 226.1 x 86.4 mm |
Weight |
5 lb / 2.3 kg |
Packaging Info
Package Weight |
6.995 lb |
Box Dimensions (LxWxH) |
17 x 13 x 4.3" |
