Core SWX HLX-TK Overview

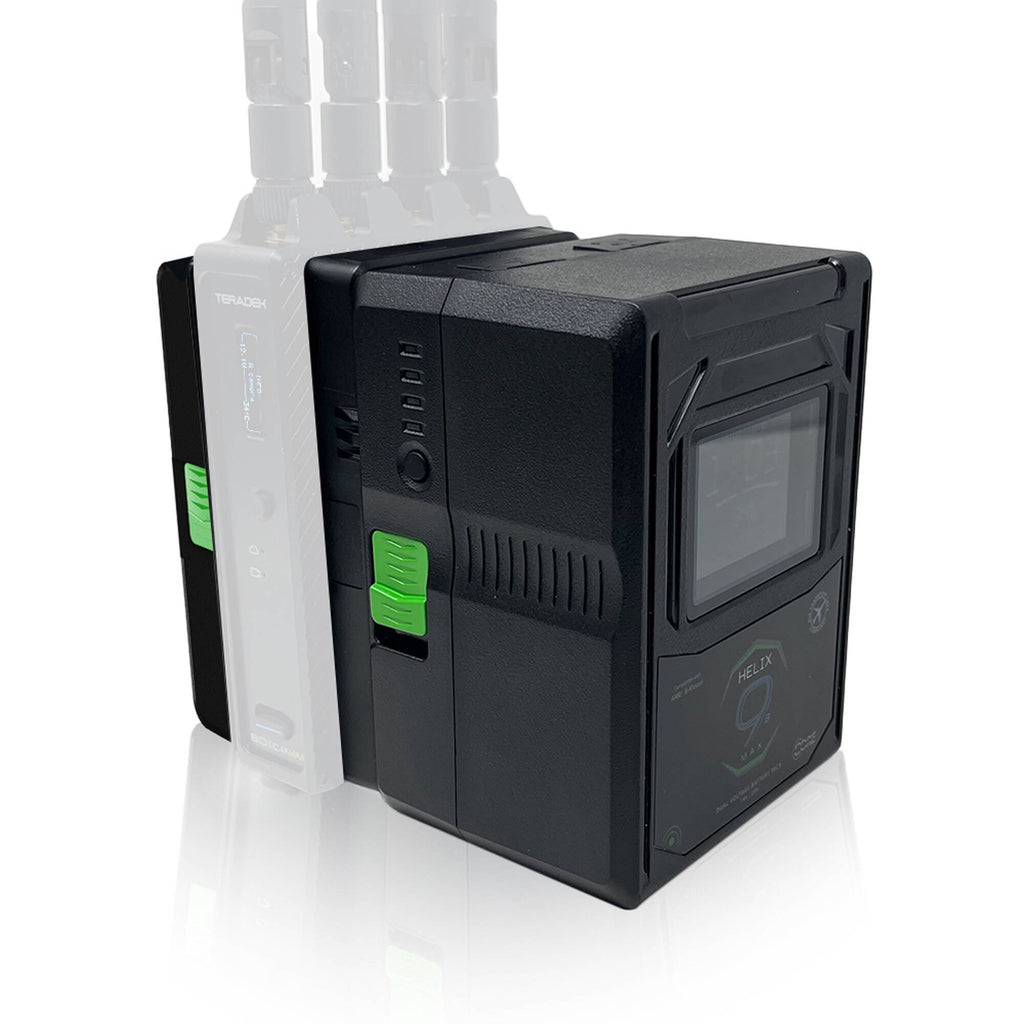

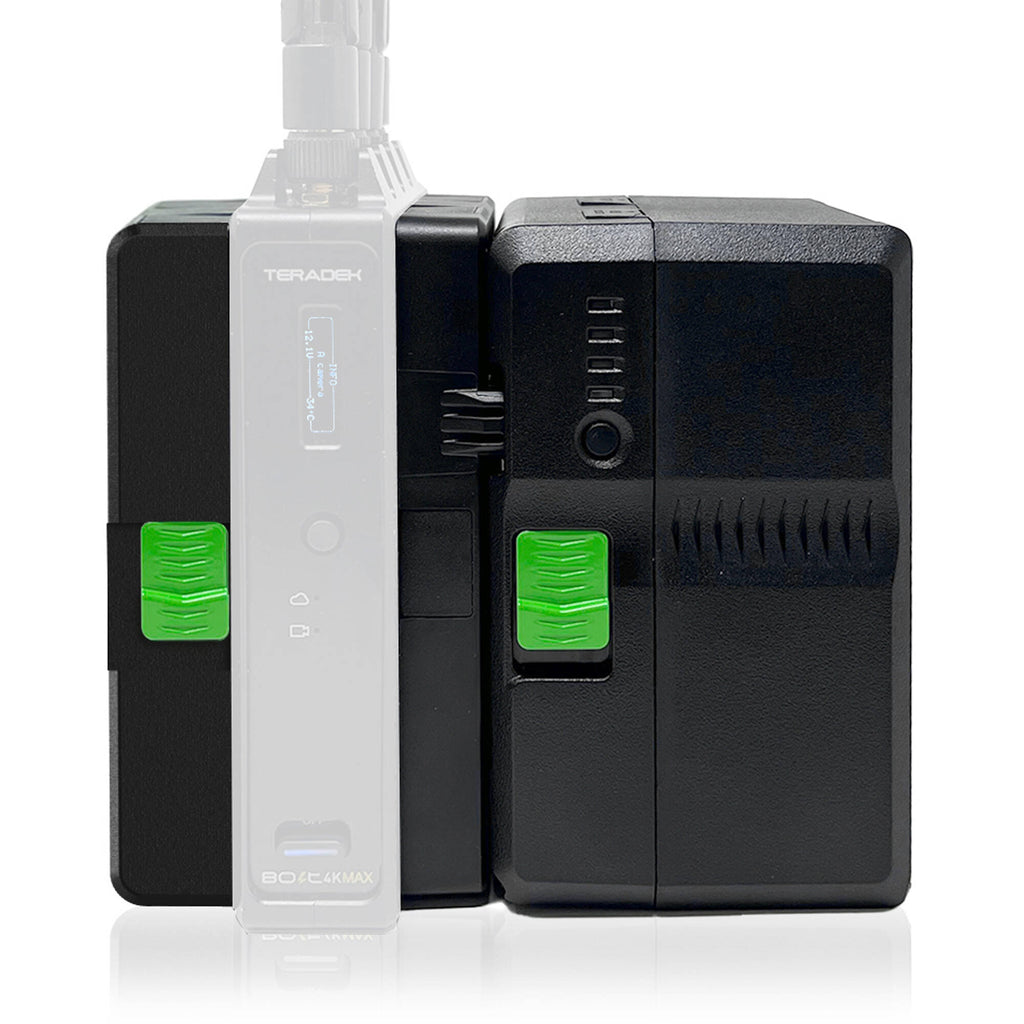

These B-mount Helix Retrofit Plates for Teradek MAX Transmitters from CoreSWX enable safely powering your Teradek MAX transmitter from the same battery that you are using to power your high-voltage Digital-Cine camera. As the MAX Transmitter supports 14 VDC battery systems and has a top-voltage range of 28 VDC, it becomes increasingly dangerous to power it from the same batteries that you use for cameras that can handle input voltage up to 33.4 VDC.

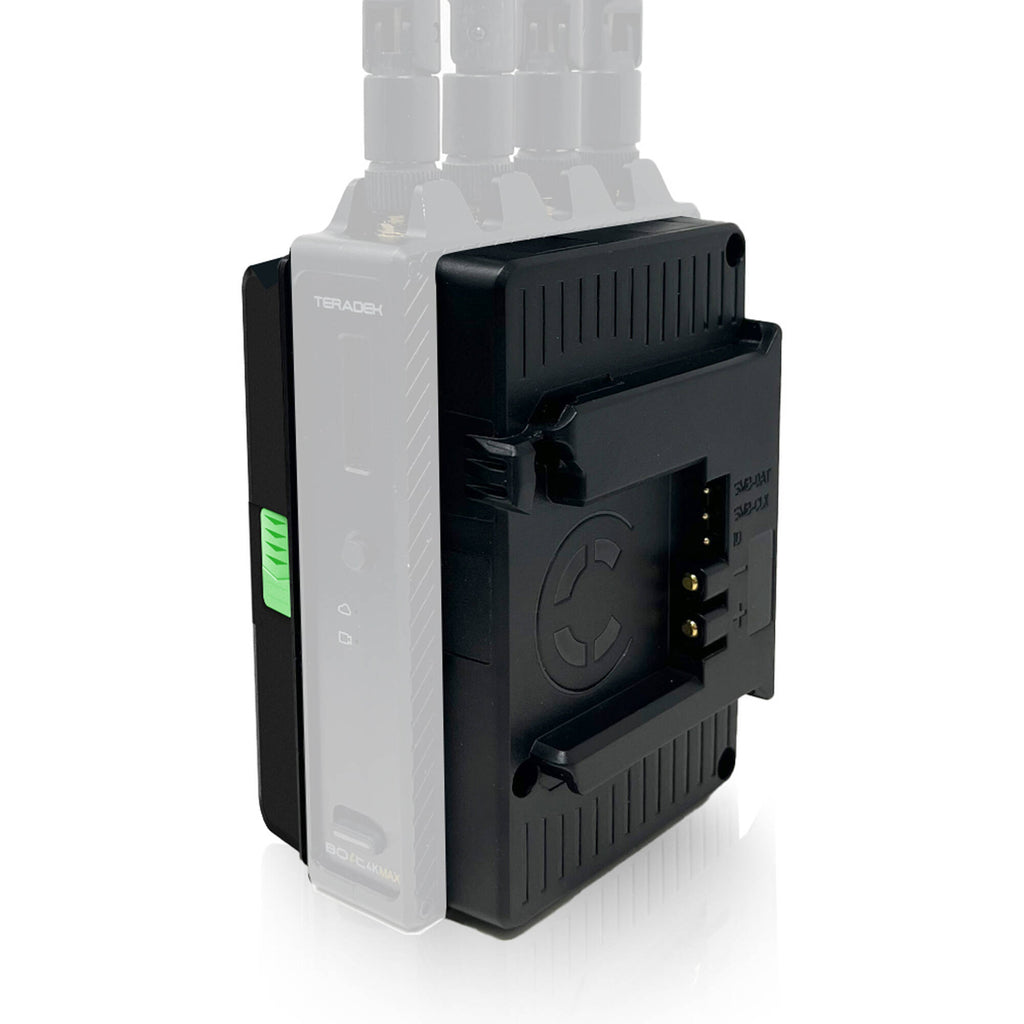

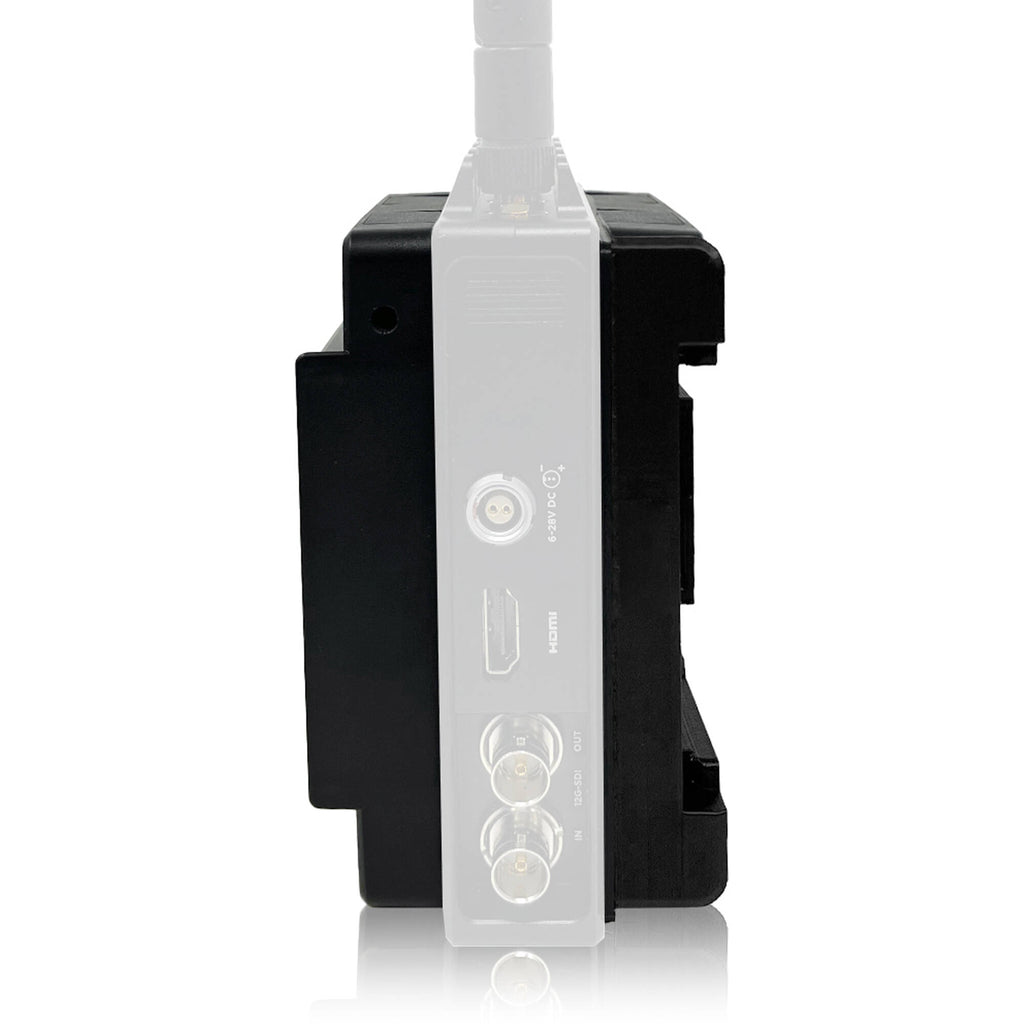

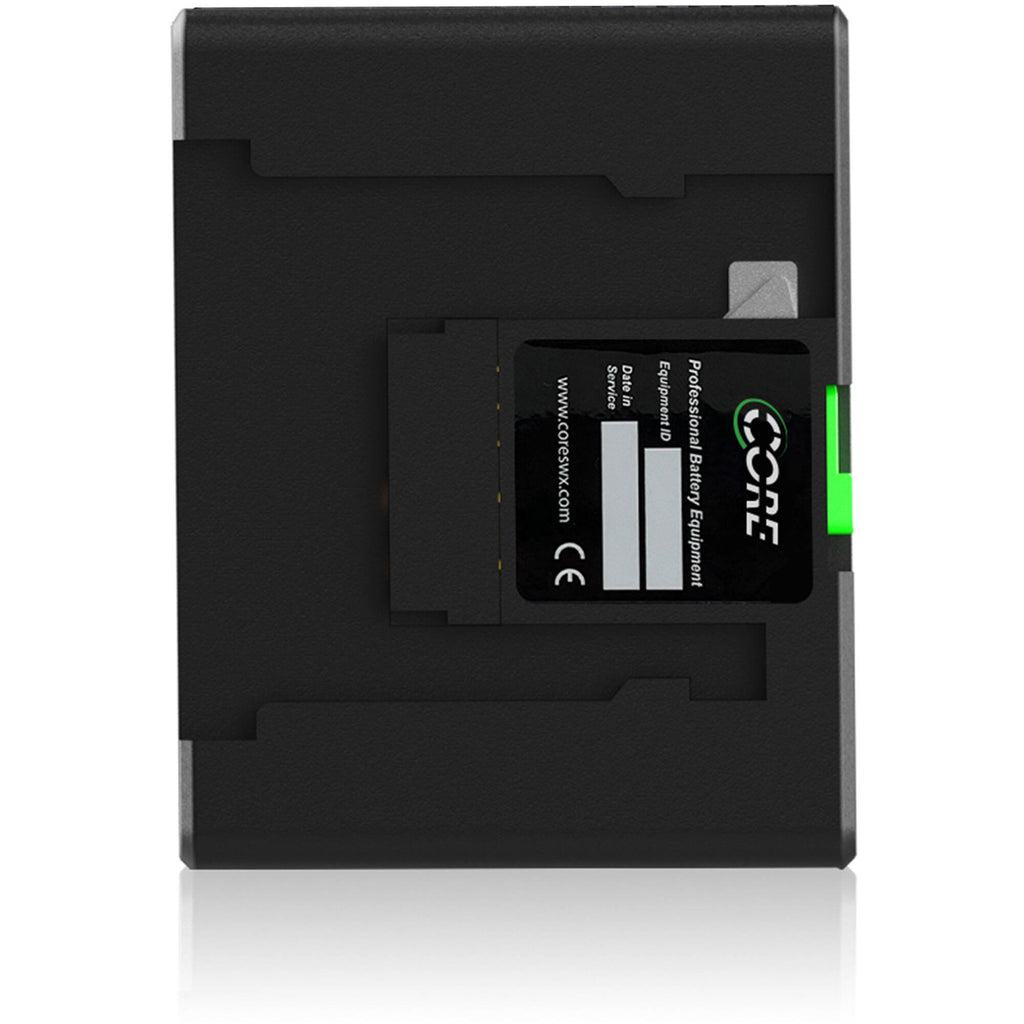

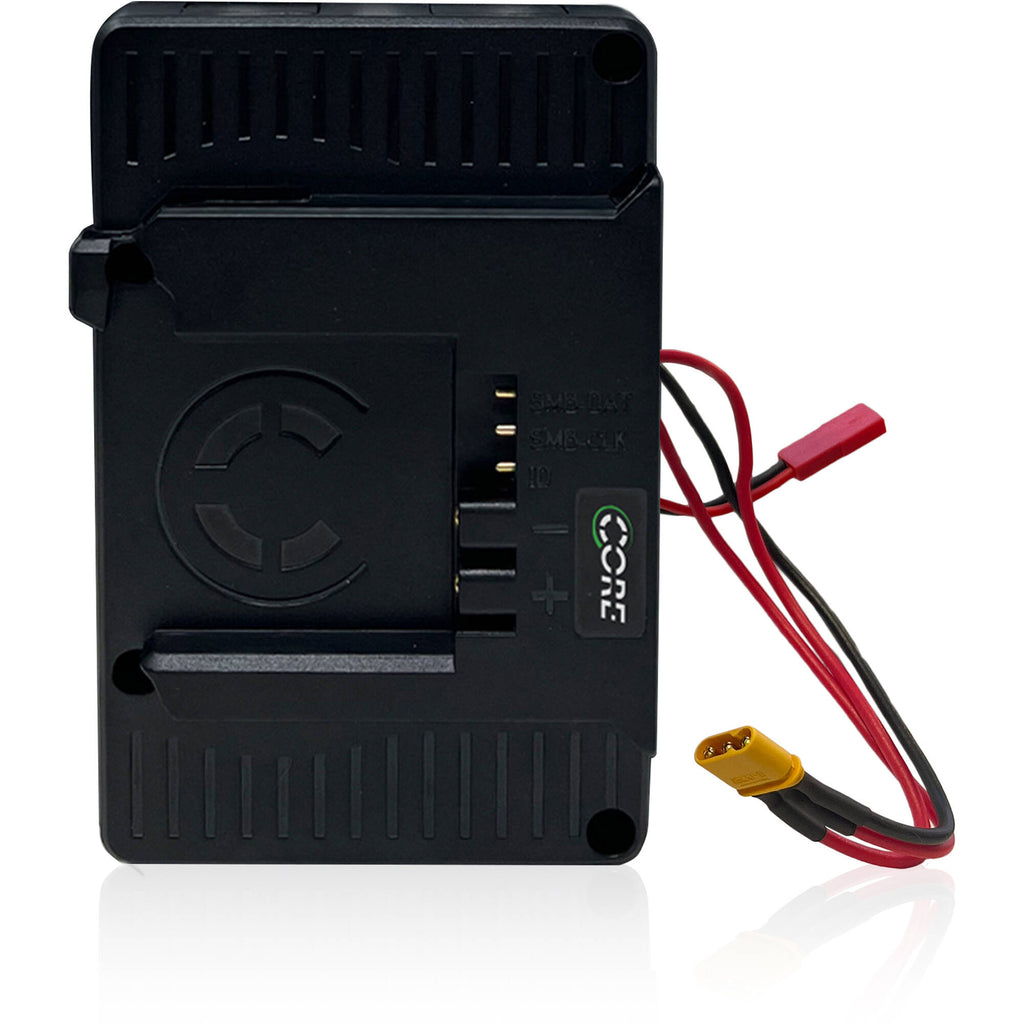

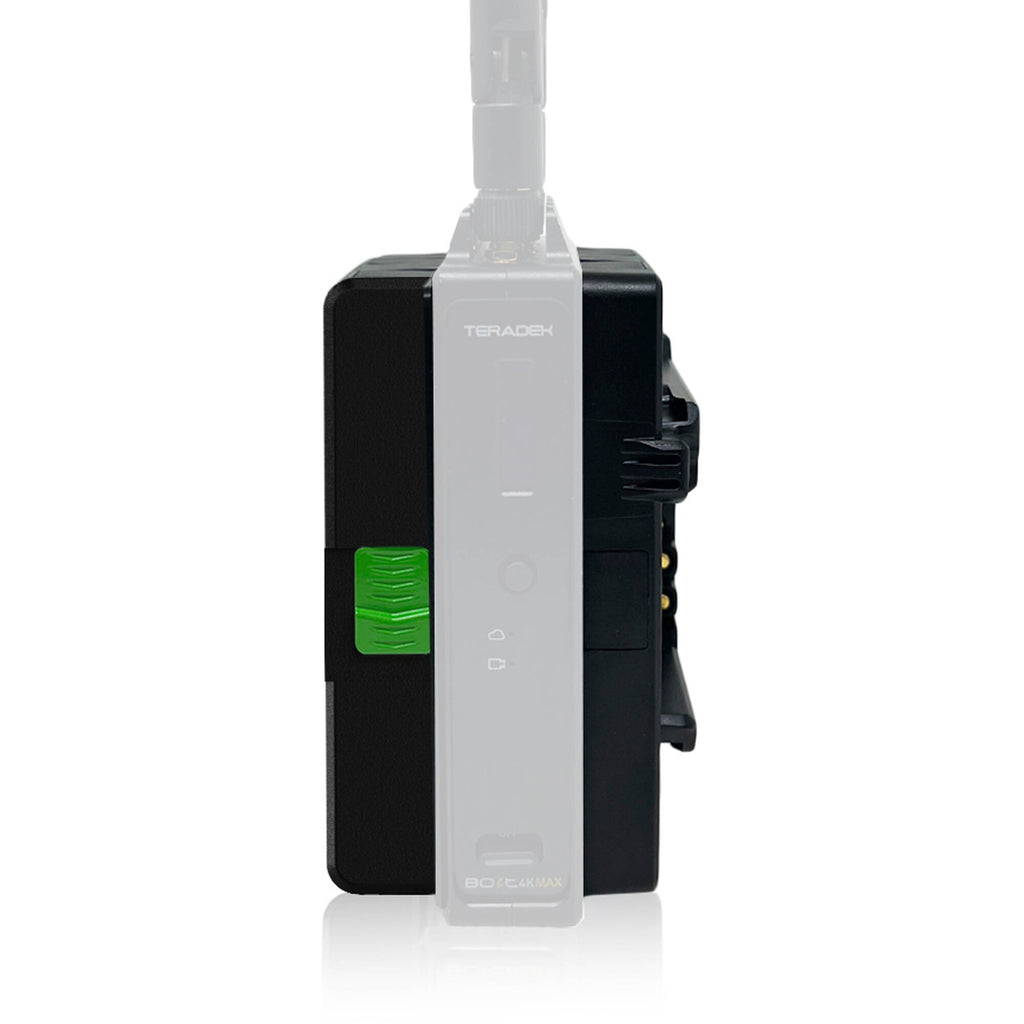

This retrofit kit replaces the original plates on your MAX transmitter, and has B-mount plates on both sides. The kit also features a 2-pin LEMO connector that outputs 12 VDC, which is safe for your transmitter.
Supports both standard 14 VDC V-mount and Gold mount. For high voltage, only supports Helix V-mount, Gold mount, and B-mount.
UPC: 184323006304
In the Box
- Core SWX Helix Retrofit Plates for Teradek MAX Transmitters (B-Mount)
Core SWX HLX-TK Specs
| Input Power |
Voltage: 11 to 34 VDC
|
| Output Power |
Passthrough: Input Voltage
Output to Transmitter: 12 VDC |
| Connectors |
Input: 1 x B-Plate
Passthrough: 1 x B-Mount Transmitter Power: 1 x 2-Pin LEMO |
| Dimensions |
5.5 x 3.25 x 0.5" / 13.97 x 8.26 x 1.27 cm
|
| Weight |
6.4 oz / 181.44 g
|
Packaging Info
| Package Weight |
0.735 lb
|
| Box Dimensions (LxWxH) |
8.65 x 5.75 x 3.95"
|
