Core SWX Quantum Overview

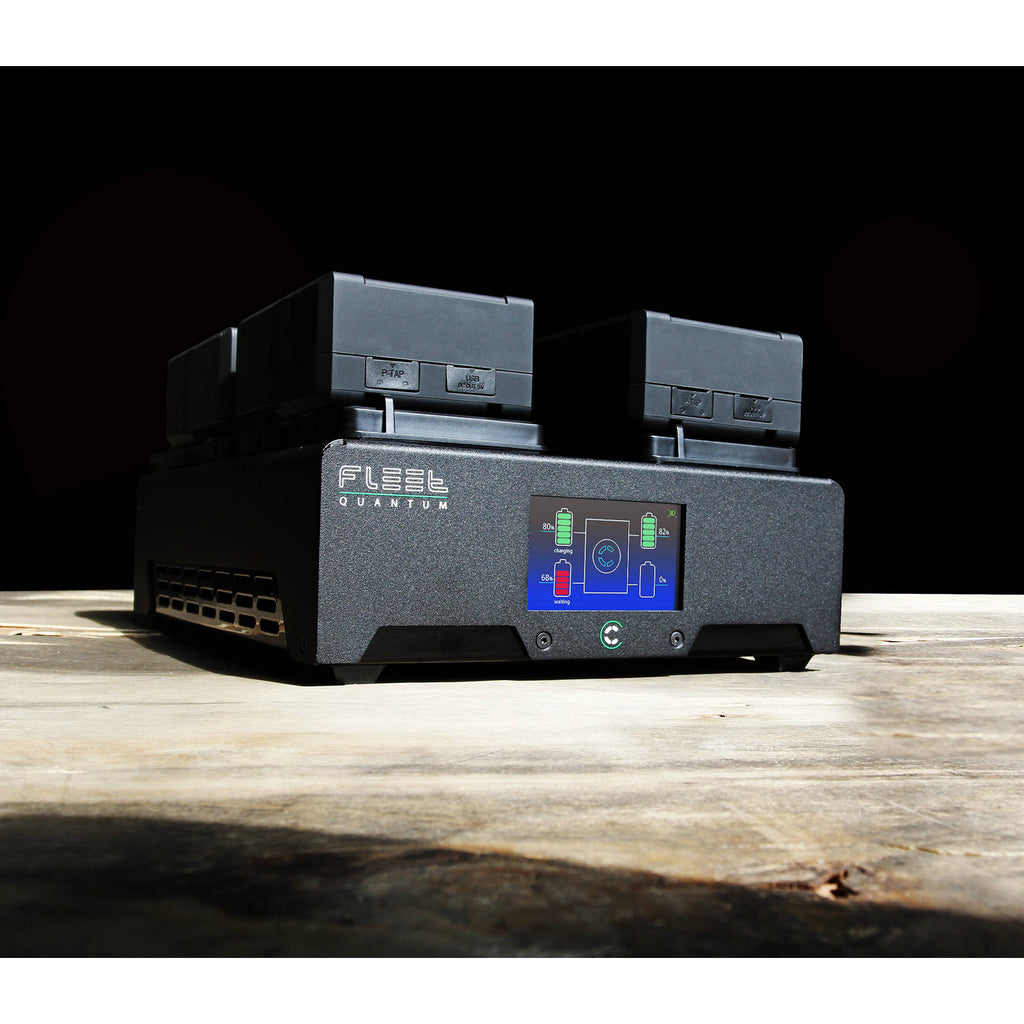

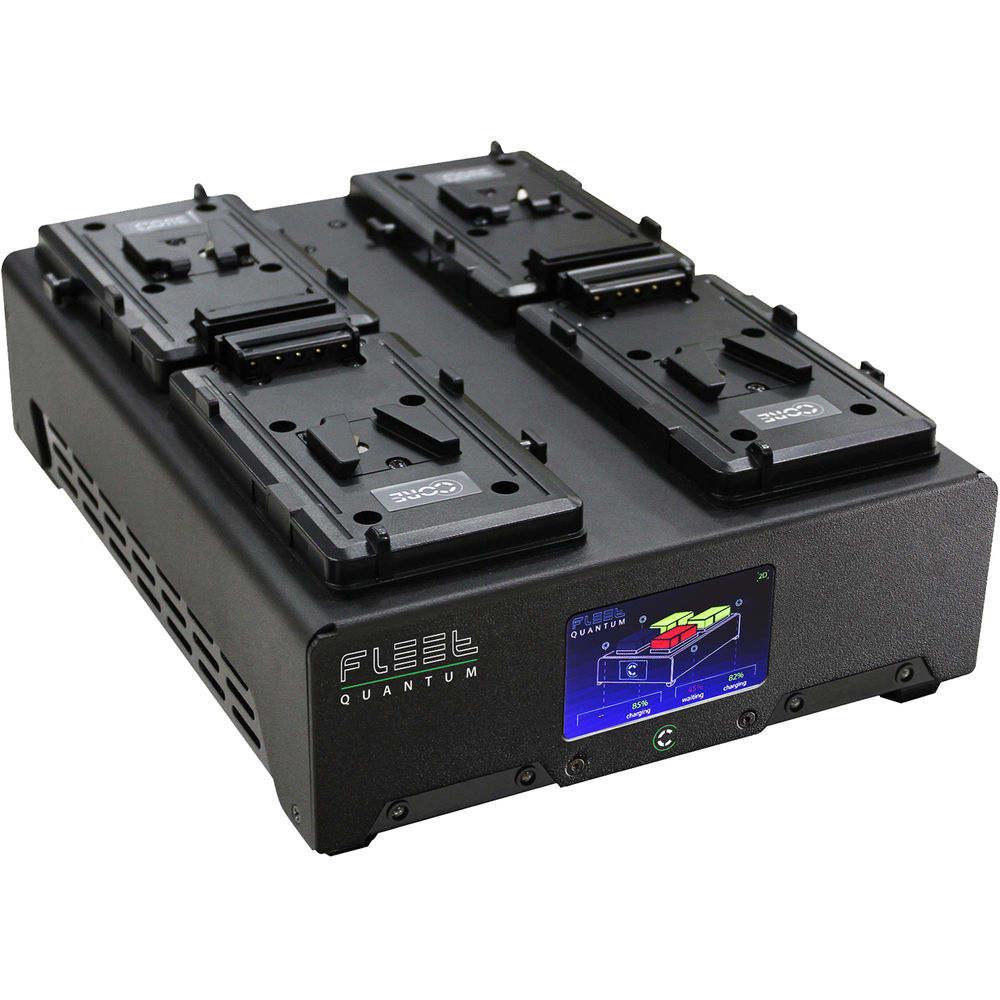

Featuring four charge bays with two independent sides, this FLEET Quantum 4-Position Charger with Touchscreen Color LCD is part of the next-generation smart charger series from Core SWX. The FLEET Quantum is capable of charging four V-mount batteries by utilizing a 2 x 2 rapid charge process. This means the right two and left two bays run independently. When four packs are placed on the charger, it charges one pack from each side with the most charge capacity first, then continues with the lesser-charged packs for the quickest charge sequence. To charge two batteries, you would place one on each side for simultaneous charging. Four 98Wh batteries can be charged in approximately three hours at a rate of 4A per hour, which also utilizes half the power used by previous models.

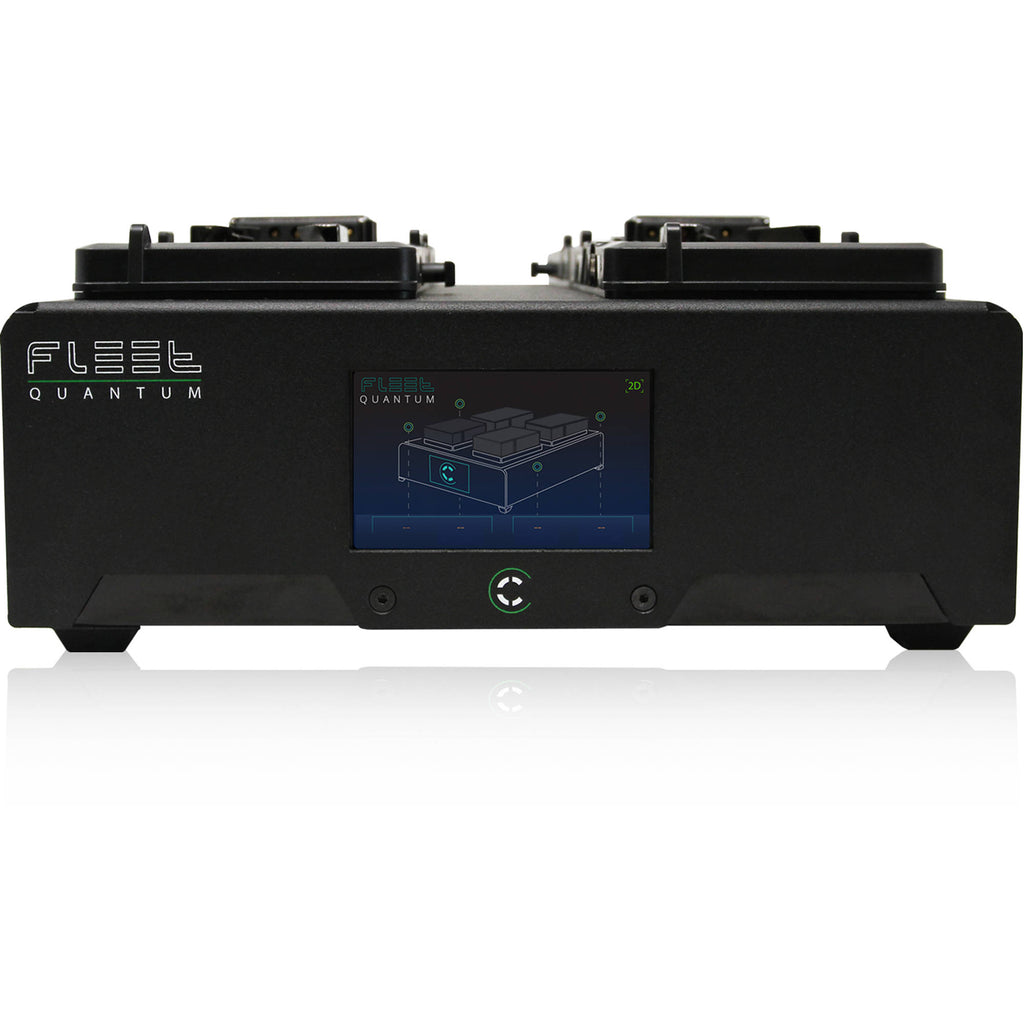

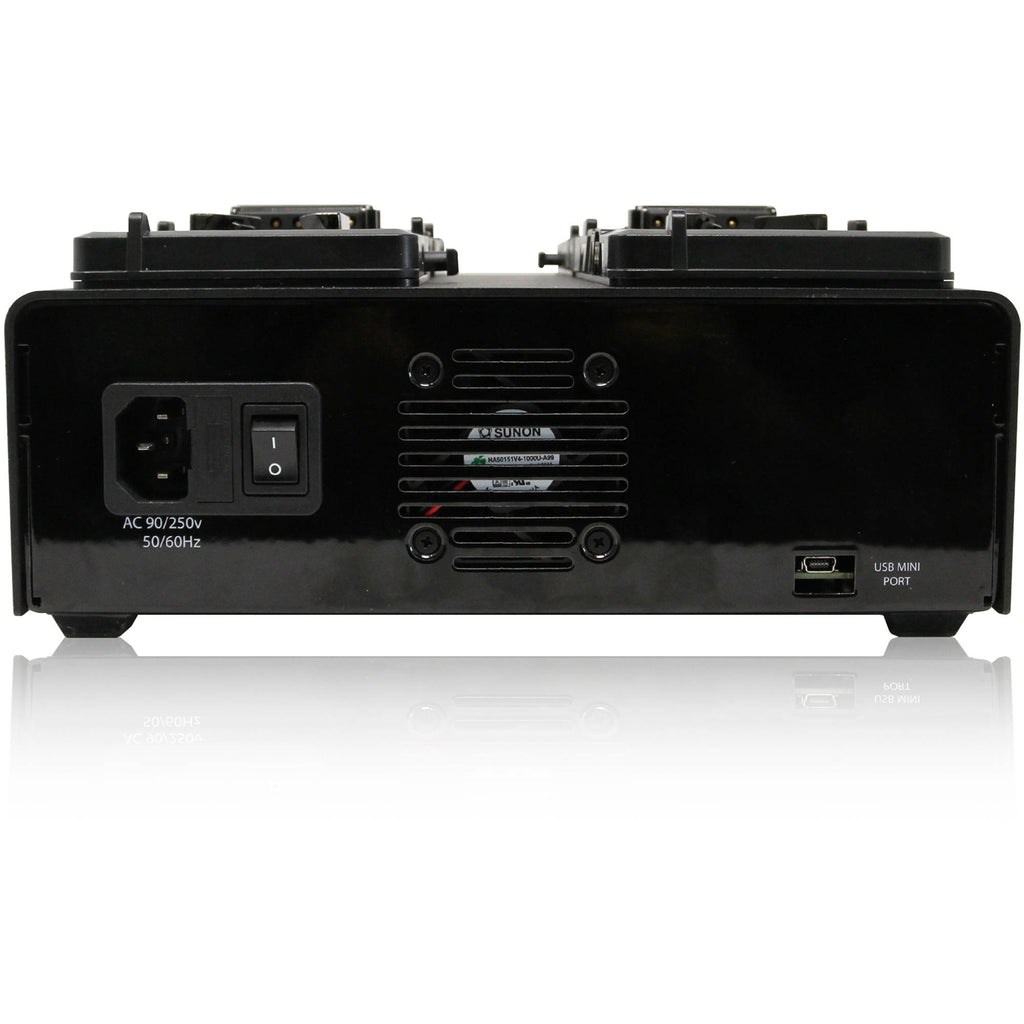

On the front of the unit, the Fleet Quantum features a large color touchscreen LCD with a GUI that provides smart battery data such as charge state, cycle count, and capacity data, and it can provide health analysis for each battery in case there are any abnormalities. Supporting 90-240 VAC input voltage, the FLEET Quantum is worldwide compatible if you incorporate the appropriate plug adapter, sold separately. A 6' long power cable is included.
- Four independent V-mount charge bays
- Supports 2 x 2 rapid charging
- Approximately three-hour charge time for four 98Wh batteries at 4A per hour
- Touchscreen color LCD with battery status and health information
- 90-240 VAC worldwide compatible input voltage
- Weighs 5 lb
- Approximately 3.4" tall
In the Box
- Core SWX FLEET Quantum 4-Position Charger with Touchscreen Color LCD (V-Mount)
- Power Cable (6')
Core SWX Quantum Specs
| Mount / Series Type |
V-Mount |
| Number of Battery Bays |
4 |
Electrical
| AC Input Power |
90 to 240 VAC, 50 / 60 Hz |
| Power Output |
VDC at 4 A |
| Multi-Bay Charging Modes |
Simultaneous |
| Recharge Time |
3 Hours |
| Chemistry |
Lithium-Ion |
General
| Indicator |
LCD Display |
| Cable Length |
6' / 1.83 m |
| Dimensions |
9.1 x 3.4 x 12.2" / 23.11 x 8.64 x 30.99 cm |
| Weight |
5 lb / 2.3 kg |
Packaging Info
| Package Weight |
6.5 lb |
| Box Dimensions (LxWxH) |
16.9 x 12.4 x 4.4" |
