Description

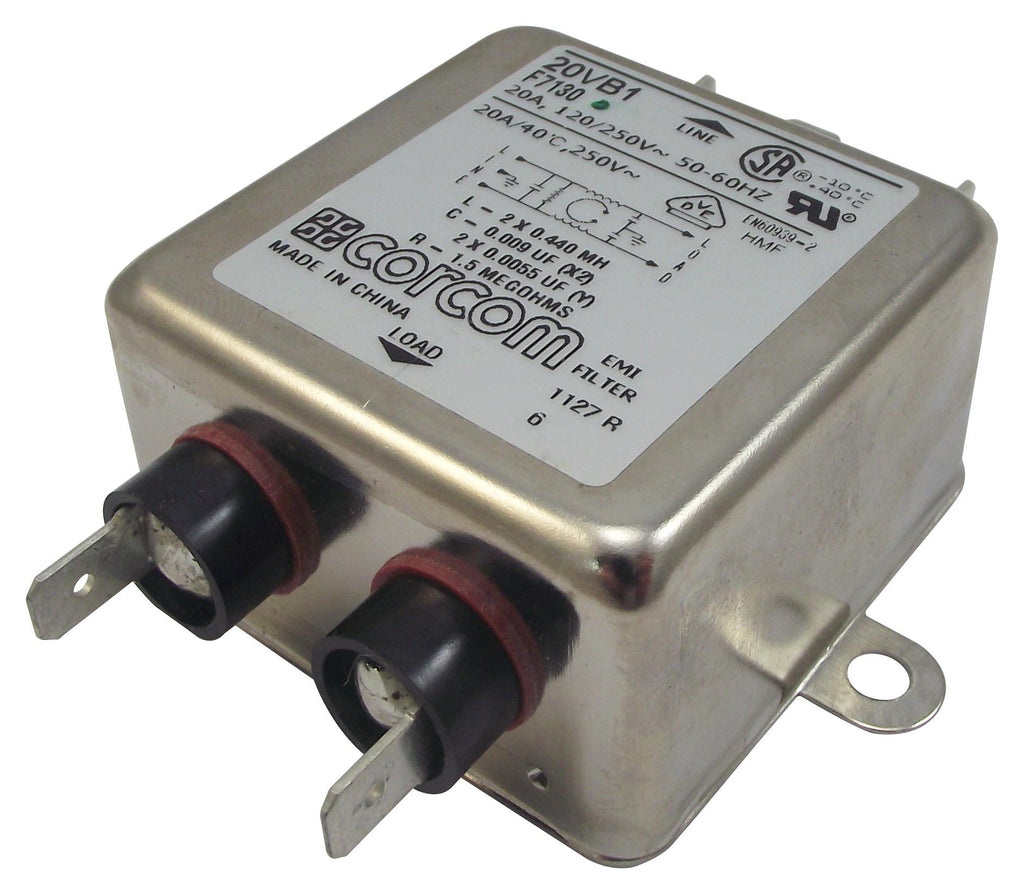

The 20VB1 is a 1-phase 20A general purpose RFI Filter for high impedance loads at low current. This B series filter meets low leakage current requirements of VDE portable equipment and non-patient medical equipment. It has quick connect terminals.
- 0.25" Spade terminals
- Flanged mounting
- -10 to 40�C Operating temperature range
Applications
Industrial, Portable Devices, Medical, RF Communications
Product details
| Leakage Current Max | 700�A |
| Capacitance | 12000pF |
| Filter Type | EMI, RFI |
| Filter Terminals | Quick Connect |
| Inductance Min | 440�H |
| Current Rating | 20A |
| Product Range | B Series |
| Voltage Rating | 250VAC |
Other details
| Brand | CORCOM - TE CONNECTIVITY |
| Part Number | 20VB1 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Drawing EN | |
| 3D Product Image EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
