Description
Contemporary Research 5122-001 Overview
- 1Description
- 2Tunes ATSC Air and Clear QAM Cable Channels
- 3HDMI Selectable Video Output Resolutions
- 4Simultaneous HDMI, S/PDIF, and Analog Stereo Audio Output
- 5Web Pages for Remote Setup
- 6Full ASCII 2-Way RS-232/Telnet Commands
- 7USB Type-A Port
- 8Sturdy Enclosure

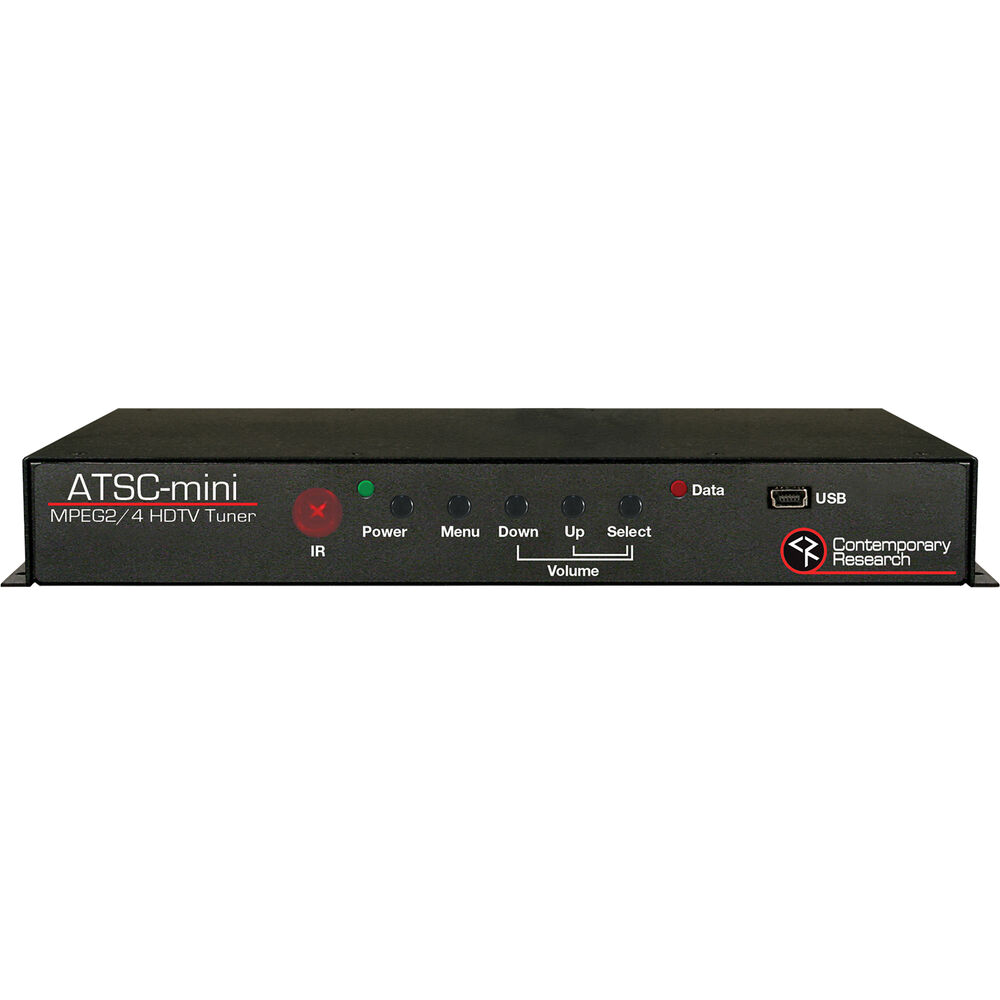

The ATSC-mini HDTV Tuner from Contemporary Research is a versatile, low-profile HDTV tuner designed for use with HD and UHD video projectors and displays in a distributed CATV system. Since not all displays or video projectors can inherently tune TV channels from off-air and cable TV signals, the ATSC-mini provides a full-function HDTV tuner that can receive ATSC and NTSC off-air channels as well as clear QAM and NTSC cable channels via its air/cable RF input. It decodes MPEG-2 and H.264 digital channels and features an HDMI output with selectable resolutions up to 4K. There is also one S/PDIF optical audio output that supports AC-3, PCM, and variable PCM as well as a 3.5mm TRS output for stereo analog output with variable level.
The integrator-friendly ATSC-mini offers 2-way RS-232, IP Telnet, and UDP as well as wireless and wired IR commands. Operate the ATSC-mini via front-panel buttons, the onboard web page, or the supplied custom-designed PC application. For flexibility of installation, two powering options are possible�PoE (Power-over-Ethernet) or the included switching power supply.
In the Box
- Contemporary Research ATSC-mini HDTV Tuner
- Power Supply
- Description
- Tunes ATSC Air and Clear QAM Cable Channels
- HDMI Selectable Video Output Resolutions
- Simultaneous HDMI, S/PDIF, and Analog Stereo Audio Output
- Web Pages for Remote Setup
- Full ASCII 2-Way RS-232/Telnet Commands
- USB Type-A Port
- Sturdy Enclosure
Contemporary Research 5122-001 Specs

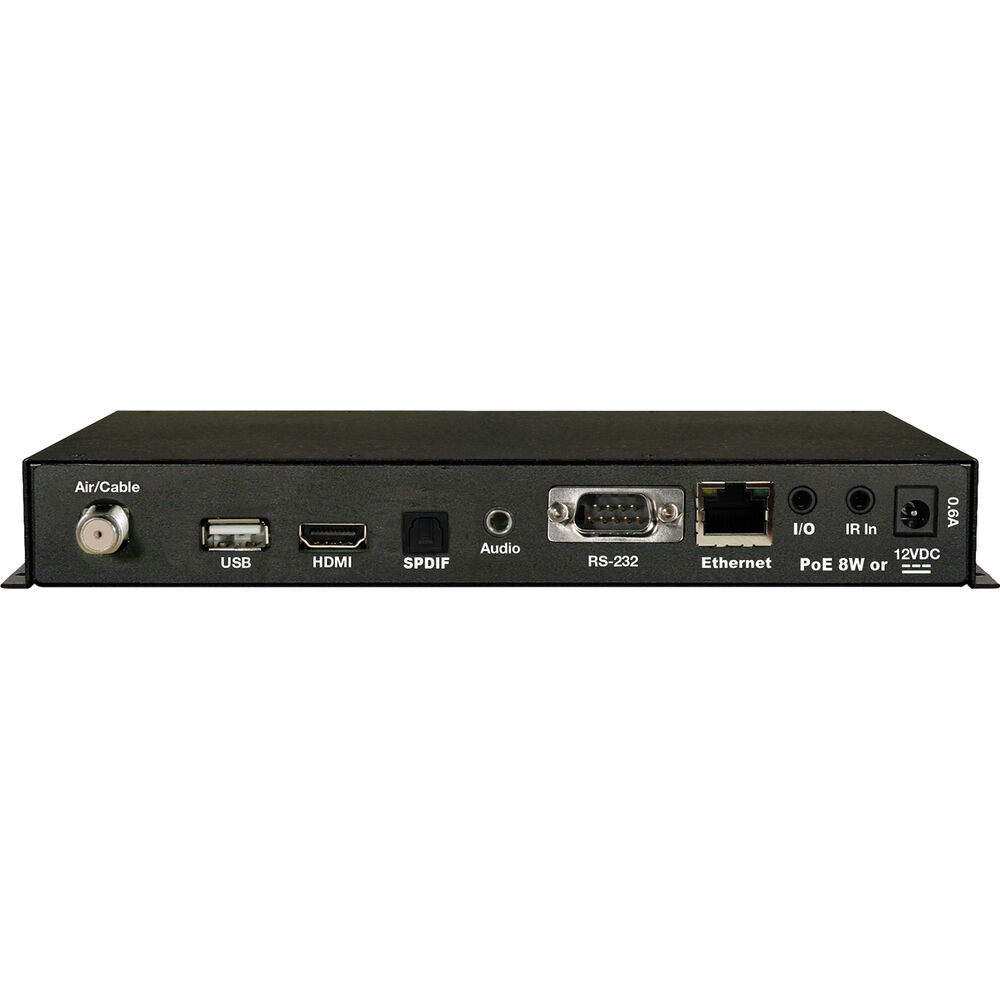

| USB I/O | 1 x Mini-USB Female Input/Output 1 x USB-A Female Input |
| Video I/O | 1 x HDMI 1.4b Output |
| Audio I/O | 1 x 1/8" / 3.5 mm TRS Line Output (Analog Stereo) 1 x TOSLINK Optical S/PDIF Output (Digital) |
| Power Source | AC Adapter with Power Brick (Included), PoE (Built-In) |
| DC Input Power | 11.5 to 15 VDC at 0.6 A |
| Power Consumption | 8 W |
| Certifications | RoHS *as per Manufacturer |
| Color | Black |
| Material of Construction | Aluminum |
| Dimensions | 8.6 x 8 x 1.1" / 218 x 203 x 29 mm |
| Weight | 14 oz / 398 g |
