₹ 45080.0 includes GST and import duties. | |
B2B customers can avail ₹ 6874.7 ITC on this product | |
100% Secure Payments | 100% Genuine product | |
The product is eligible for Free Shipping |
Description
- Compatible with 1/2" Cameras
- f/5.6 to 32C Manual Iris
- 21.6 to 4.5° Diagonal FOV
- Manual Zoom (10x) and Focus
- 0.15 to 0.45m Focus
- C-Mount Connection

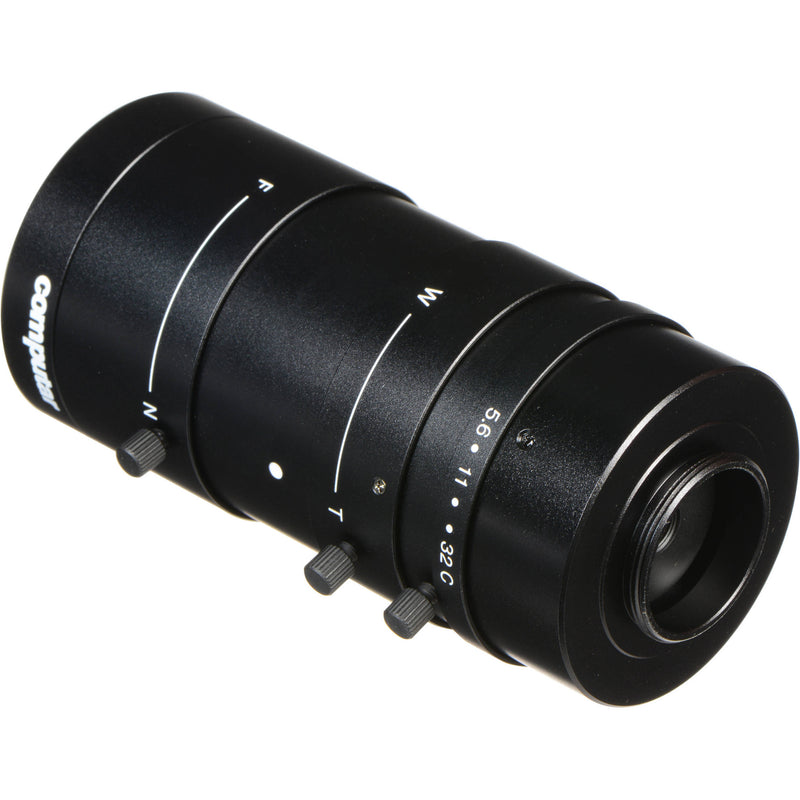

The C-Mount 13-130mm Varifocal Lens from Computar is designed for use in close-up applications such as factory automation and image processing areas. It captures images in 6.4 x 4.8mm (Ø8mm) format, and it features manual zoom and iris control. The lens is compatible with 1/2" cameras and uses a C-mount for mounting to your camera.
- Designed for C-mount cameras with 1/2" sensors
- 13-130mm focal length to clearly capture scenes requiring different focal settings
- Aperture of f/5.6 to 32C enables use in low light as well as brightly lit conditions
- Easy focal length adjustments
- Manual iris for correct exposures
- Close proximity monitoring for use in close-up applications such as factory automation
UPC: 781904360444
Focal Length | 13-130mm |
Maximum Magnification | 0.084 to 0.84 mm |
Maximum Aperture Ratio | 1:5.6 |
Image Format | 6.4 x 4.8 mm (ø8 mm) |
Operation Range | Iris: f/5.6 to f/32C Focus: 0.49 to 1.47' (0.15 to 0.45 m) |
Control | Iris / Focus / Zoom: Manual |
Angle of View | 21.6 to 4.5° (D), 18 to 3.6° (H), 13.8 to 2.7° (V) |
Operating Temperature | -4 to 122°F (-20 to 50°C) |
Effective Lens Aperture | Front: ø30mm Rear: ø6.6mm |
Back Focal Length | 23.29mm |
Flange Back Length | 0.69" (17.526 mm) |
Mount | C-mount |
Filter Size | M46.0 P = 0.75 mm |
Object Size | 6" (152.4 mm) Working Distance: 92.2 to 9.6 mm (D), 74.6 to 7.8 mm (H), 56.4 to 5.9 mm (V) 18" (457.2 mm) Working Distance: 349.4 to 34.6 mm (D), 279.2 to 28.0 mm (H), 208.8 to 21.2 mm (V) |
Dimensions | 1.88 x 3.87" (48 x 98.5 mm) |
Weight | 9.17 oz (260 g) |
Packaging Info | |
---|---|
Package Weight | 0.7 lb |
Box Dimensions (LxWxH) | 5.6 x 3.0 x 2.7" |
In the Box
computar C-Mount 13-130mm Varifocal Lens
- Limited 3-Year Warranty
