computar AG3Z2812KCS-MPWIR Overview

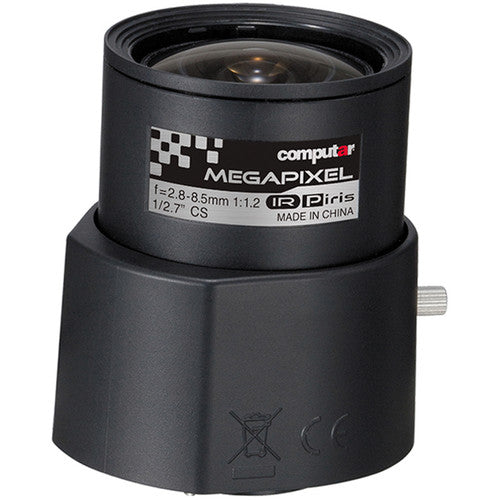

The AG3Z2812KCS-MPWIR 5MP CS-Mount Day/Night 2.8-8.5mm Varifocal Lens from Computar is compatible with 1/2.7" cameras using a CS-mount. It features a stepping motor iris and manual zoom.
Full HD format
Precise focus adjustment
IR corrected optics
Corner brightness
UPC: 781904052974
In the Box
- computar AG3Z2812KCS-MPWIR 5MP CS-Mount Day/Night 2.8-8.5mm Varifocal Lens with 3x Zoom
- Limited 3-Year Manufacturer Warranty
computar AG3Z2812KCS-MPWIR Specs
| Imager Size | 1/2.7" |
| Maximum Aperture Ratio | 1:1.2 |
| Mount Type | CS-mount |
| Focal Length | 2.8-8.5mm |
| Aperture | f/1.2 |
| Image Format | Maximum: 3.2 x 5.8 mm (Ø6.6 mm) |
| Operation Range | Iris: F1.2 ? F16C Focus: 1.64' to infinity (0.5 m to infinity) Zoom: 2.8 to 8.5mm |
| Control | Iris: Stepping motor Focus: Manual Zoom: Manual |
| Angle of View | 1/2.7" Type 150.4 to 47.1° (D), 124.7 to 41.3° (H), 63.9 to 22.7° (V) 1/3" Type 130.4 to 42.8° (D), 99.1 to 34.1° (H), 72.3 to 25.6° (V) 1/4" Type 92.1 to 32.0° (D), 72.3 to 25.6° (H), 53.5 to 19.1° (V) |
| Effective Lens Aperture | Front: Ø24.8mm Rear: Ø8.4mm |
| Back Focal Length | Tele: 7.3mm Wide: 7.3mm |
| Flange Back Length | 0.5" (12.5 mm) |
| Operating Temperature | 14 to 122°F (-10 to 50°C) |
| Dimensions | 1.6 x 1.9 x 2.3" (40 x 49 x 59 mm) |
| Weight | 2.3 oz (66 g) |
Packaging Info
| Package Weight | 0.15 lb |
| Box Dimensions (LxWxH) | 3.2 x 2.6 x 2.5" |
