Description
- For C-Mount Machine Vision Cameras
- Telecentric Lens
- Coaxial Lighting Capability
- For 2MP Sensors on 2.3" Cameras
- 2.6" Minimum Focus Distance
- 0.8x Magnification
- Low TV Distortion Correction

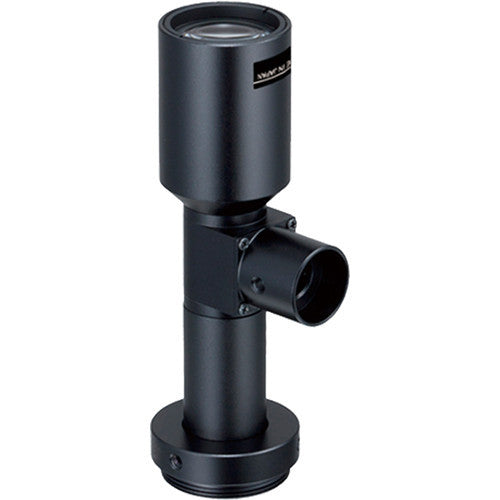

This 0.8x 2MP Telecentric C-Mount Lens with Coaxial Port for 2/3" Sensors from Computar is designed for machine vision applications and incorporates a port for a coaxial lighting fixture (not included).
It is a fixed focal length lens that resolves an image on 2/3" cameras with 2MP sensors, and it incorporates a C-Mount. Featuring a minimum working distance of 2.68", while providing a 0.8x magnification, the lens has a low corner distortion of 0.008%.
- Telecentric lenses are designed so that the light exiting the rear element is perpendicular to the sensor. Non-telecentric lens design allows the light to strike the sensor at an angle, which can lead to vignetting at the edge and corners of the sensor. The telecentric design minimizes vignetting.
- This lens incorporates a port for a coaxial lighting device (not included). This setup enables you to illuminate the target area from the position of the lens itself, as opposed to setting up lights adjacent to your target.
In the Box
computar 0.8x 2MP Telecentric C-Mount Lens with Coaxial Port for 2/3" Sensors
- Limited 3-Year Warranty
| Magnification | 0.8x |
| Mount | C-Mount |
| Coverage | 2/3" Type sensor Diameter: 0.4" / 11 mm |
| Working Distance | 2.60" / 66 mm |
| Effective Aperture | f/9.4 |
| Resolving Power | 8 �m |
| Depth of Field | 0.05" / 1.18 mm |
| Back Focal Length | 0.7" / 17mm |
| Flange Back Length | 0.69" / 17.526 mm |
| Field of View | 2/3": 0.43 x 0.32" / 11.00 x 8.20 mm 1/1.8": 0.35 x 0.26" / 8.90 x 6.60 mm 1/2": 0.31 x 0.24" / 8.00 x 6.00 mm 1/3": 0.24 x 0.18" / 6.00 x 4.50 mm |
| Operating Temperature | 14 to 122�F / -10 to 50�C |
| Dimensions | Diameter x Length: 0.98 x 3.47" / 25.00 x 88.20 mm |
| Weight | 2.2 oz / 62 g |
