Description
computar V-Series Telecentric Overview

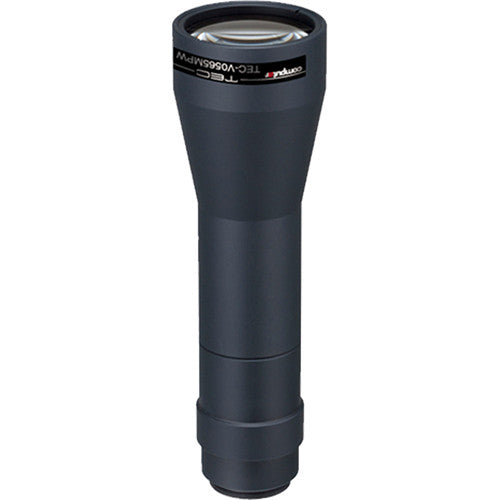

This 0.5x, 5 Megapixel Lens in C-Mount for 1" Sensors from computar is designed for machine vision applications. It is a fixed focal length lens that resolves an image on 1" cameras with 5MP sensors, and it incorporates a C-Mount. Featuring a minimum working distance of 2.56", while providing a 0.5x magnification, the lens has low corner distortion of -0.014%.
Telecentric lenses are designed so that the light exiting the rear element is perpendicular to the sensor. Non-telecentric lens designs allow the light to strike the sensor at an angle, which can lead to vignetting at the edge and corners of the sensor. The telecentric design of the lens minimizes vignetting.
UPC: 781904052820
In the Box
- computar 0.5x, 5 Megapixel Telecentric Lens in C-Mount for 1" Sensors (2.57" Working Distance)
- Limited 3-Year Warranty
computar V-Series Telecentric Specs
| Magnification | 0.5x |
| Mount | C-Mount |
| Coverage | 1"-type sensor Diameter: 0.63" / 16 mm |
| Working Distance | 2.57" / 65.2 mm |
| Effective Aperture | f/9 |
| Resolving Power | 12 µm |
| Depth of Field | 2.88 mm |
| Back Focal Length | 0.7" / 17 mm |
| Flange Back Length | 0.69" / 17.526 mm |
| Field of View | 1": 1.0 x 0.8" / 25.6 x 19.2 mm 2/3": 0.7 x 0.5" / 17.6 x 13.2 mm 1/1.8": 0.6 x 0.4" / 14.4 x 10.8 mm 1/2": 0.5 x 0.4" / 12.8 x 9.6 mm |
| Operating Temperature | 14 to 122°F / -10 to 50°C |
| Dimensions | Diameter x Length: 1.8 x 5.6" / 45 x 143.4 mm |
| Weight | 6.7 oz / 189.0 g |
Packaging Info
| Package Weight | 0.5 lb |
| Box Dimensions (LxWxH) | 6.4 x 2.5 x 2.3" |
