Description
computar M-Series Telecentric Overview

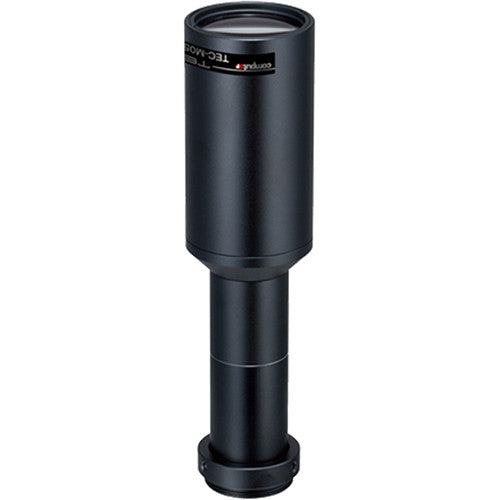

This 0.5x, 2 Megapixel Lens in C-Mount for 2/3" Sensors from Computar is designed for machine vision applications. It is a fixed focal length lens that resolves an image on 2/3" cameras with 2MP sensors, and it incorporates a C-Mount. Featuring a minimum working distance of 4.4", while providing a 0.5x magnification, the lens has low corner distortion between 0.01 to 0.03%.
In the Box
- computar 0.5x, 2 Megapixel Lens in C-Mount for 2/3" Sensors (4.4" Working Distance)
- Limited 3-Year Warranty
computar M-Series Telecentric Specs
| Magnification | 0.5x |
| Mount | C-Mount |
| Coverage | 2/3" Type sensor Diameter: 0.4" / 11 mm |
| Working Distance | 4.4" / 111.8 mm |
| Effective Aperture | f/9.4 |
| Resolving Power | 12.7 µm |
| Depth of Field | 0.1" / 3 mm |
| Back Focal Length | 0.7" / 17mm |
| Flange Back Length | 0.69" / 17.526 mm |
| Field of View | 2/3": 0.7 x 0.5" / 17.6 x 13.2 mm 1/1.8": 0.6 x 0.4" / 14.3 x 10.6 mm 1/2": 0.5 x 0.4" / 12.8 x 9.6 mm 1/3": 0.4 x 0.3" / 9.6 x 7.2 mm |
| Operating Temperature | 14 to 122°F / -10 to 50°C |
| Dimensions | Diameter x Length: 1.4 x 5.2" / 35.0 x 131.2 mm |
| Weight | 4.5 oz / 128 g |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 81898.6 |
| 3-5 | ₹ 81062.9 |
| 5-10 | ₹ 79391.5 |
| 10+ | ₹ 77720.1 |
Bulk discount will be automatically applied during checkout based on quantity.
