Description
Comprehensive HDWP85UD Overview

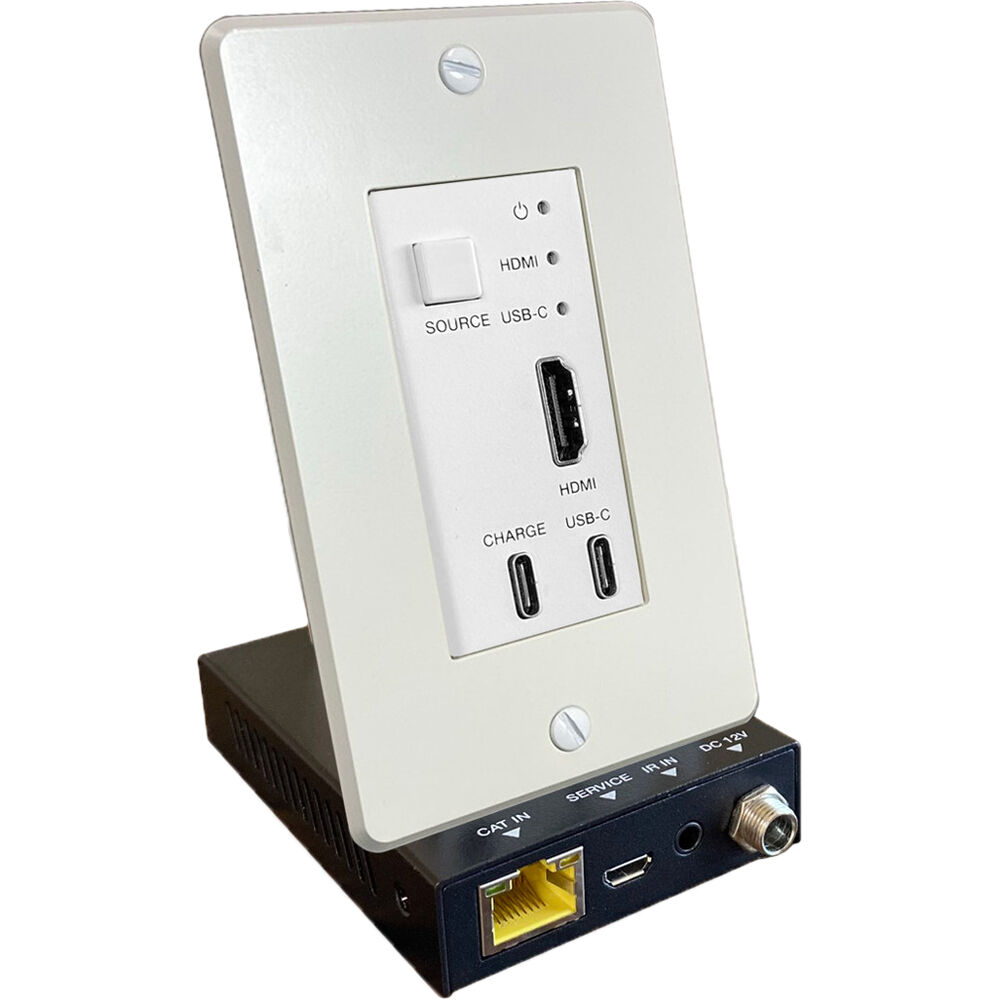

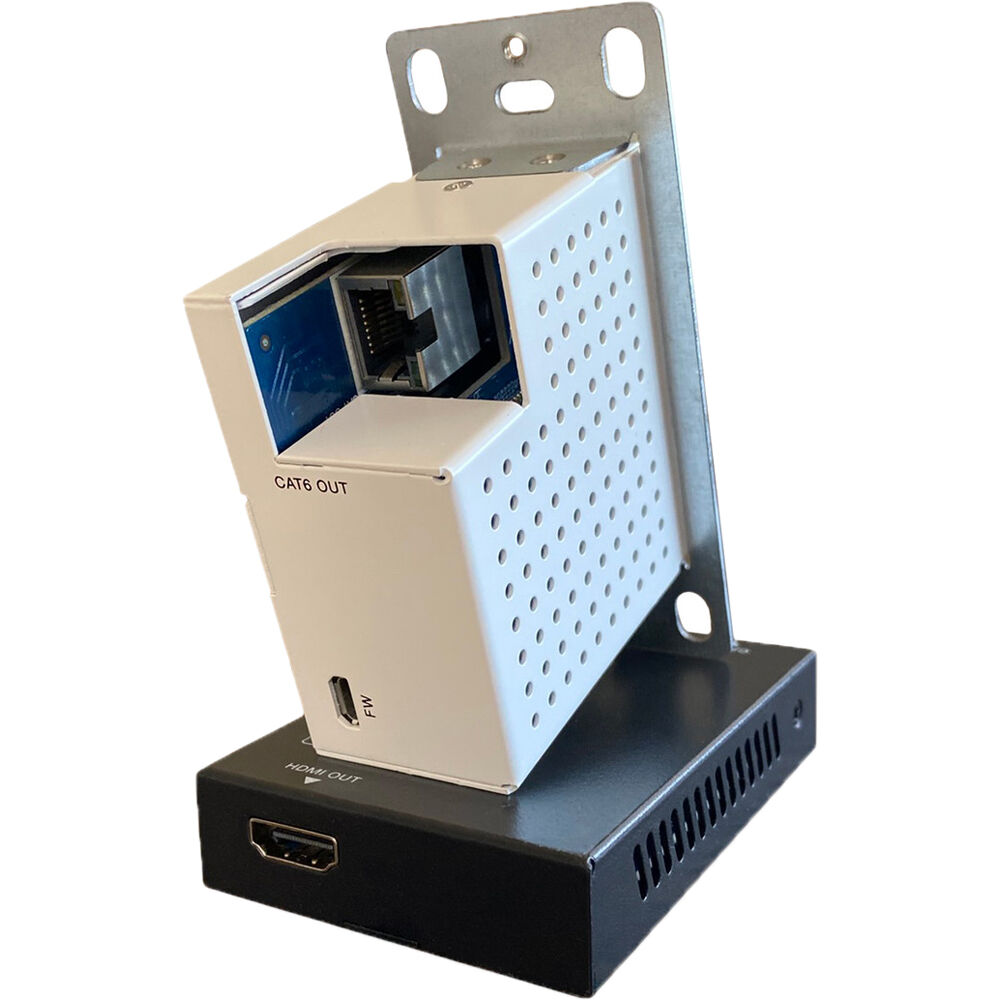

The Pro AV/IT Integrator Series HDMI & USB-C 4K extender from Comprehensive includes a one-gang Decora-style wall plate transmitter and a remote receiver. It extends UHD 4K24 video signals up to 164' or UHD 4K60 4:4:4 up to 115' via a single Cat 5e/6 cable. It also supports 3D and HDR formats. The HDMI input features an 18 Gb/s video bandwidth, and the USB-C input has a bandwidth of 5.4 Gb/s.
UPC: 808447085181
In the Box
- Comprehensive Pro AV/IT Integrator Series HDMI & USB-C UHD 4K Wall Plate Extender
- Limited 3-Year Manufacturer Warranty
Comprehensive HDWP85UD Specs
Transmitter Interfaces
| Inputs |
1 x HDMI (HDMI 2.0b)
|
| Outputs |
1 x RJ45
|
| Transmitter Other I/O |
1 x USB-C Input
1 x Micro-USB |
Receiver Interfaces
| Inputs |
1 x RJ45
|
| Outputs |
1 x HDMI (HDMI 2.0b)
|
| Receiver Other I/O |
1 x Micro-USB
1 x 1/8" / 3.5 mm IR Input |
Standards
| HDCP Support |
Yes, Version 2.2
|
Transmission
| Max Transmission Distance |
DCI 4K, UHD 4K at 24 Hz:
164' / 50 m (via Cat 5e/6) DCI 4K, UHD 4K at 60 Hz: 115' / 35.1 m |
| Video Format |
HDMI (8-Bit 4:4:4)
DCI 4K: 60 fps UHD 4K: 60 fps HDMI (8/10/12-Bit) 1080p: 60 fps |
| DTS Compatibility |
DTS, DTS 96/24, DTS-HD High Resolution, DTS-HD Master Audio, DTS:X
|
| Dolby Compatibility |
Dolby Digital, Dolby Digital Plus, Dolby TrueHD
|
| Supported Cable Types |
Cat 5e/6
|
Power
| Transmitter Power Connector |
1 x USB-C Output
|
| Receiver Power Connector |
1 x Barrel (12 VDC) Input
|
| PoE Support |
PoE Proprietary
|
| Transmitter Power Consumption |
(3 W)
|
| Receiver Power Consumption |
(3.72 W)
|
Environmental
| Operating Temperature |
32 to 104°F / 0 to 40°C
|
| Storage Temperature |
-4 to 140°F / -20 to 60°C
|
| Operating Humidity |
20 to 90% (Non-Condensing)
|
General
| Transmitter Dimensions |
1.3 x 2.6 x 2.7" / 33.3 x 65.7 x 68.7 mm (Wall Plate)
2.8 x 0.1 x 4.5" / 69.9 x 3 x 114.3 mm (Face Plate) |
| Receiver Dimensions |
3.5 x 2.4 x 0.7" / 88 x 61 x 18 mm
|
| Transmitter Weight |
6.2 oz / 175 g
|
| Receiver Weight |
5.5 oz / 155 g
|
Packaging Info
| Package Weight |
1.485 lb
|
| Box Dimensions (LxWxH) |
10.6 x 6.9 x 3"
|
