Description

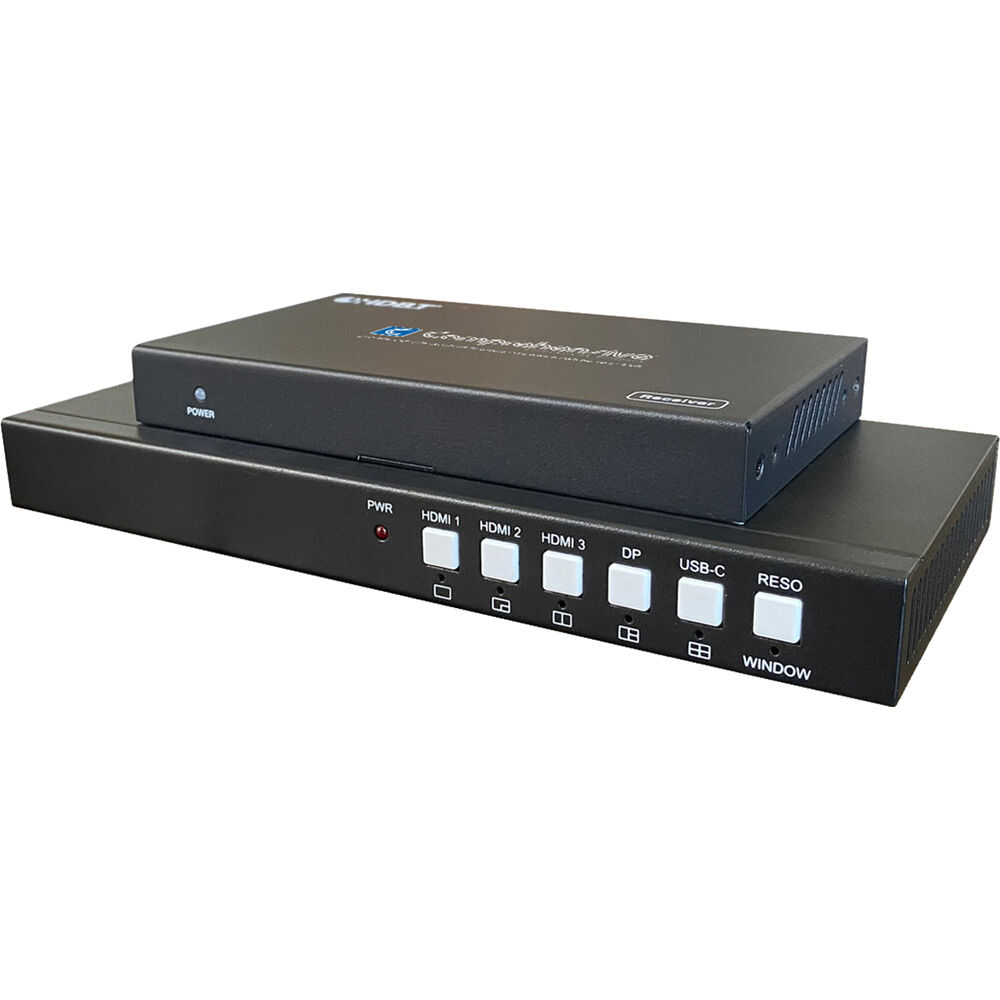

Comprehensive PS512MV Overview
Use the Pro AV/IT Integrator 5x2 Presentation Switcher with Multiview & HDBaseT Extension from Comprehensive for seamless, single-screen switching with no freezing or black or "snow" screens for meetings, lectures, and household use. This video switcher and transmitter set provides one DisplayPort, one USB-C, and three HDMI inputs and one HDMI and one HDBaseT mirrored outputs. It also features HDBaseT signal extension up to 230', 3.5mm audio de-embedding, EDID management, and a configurable multiview output. Control is offered via the front-panel buttons or RS-232 control.
Applications
- Household entertainment sharing and control
- Lecture room display and control
- Showroom display and control
- Meeting room presentation and control
- Classroom display and control
UPC: 808447085174
In the Box
- Comprehensive Pro AV/IT Integrator Series 5x2 Presentation Switcher with Multiview & HDBaseT Extension (230')
- Switcher
- Receiver
- 24V, 1A Power Adapter
- 2 x 3-Way Female Captive Screw Connector
- Limited 3-Year Manufacturer Warranty
Comprehensive PS512MV Specs
Processing
| Switching Type | IR Remote, Pushbutton, Software |
| Processing Resolution | UHD 4K at 60 |
| Color Processing | 4:4:4RGB 4:4:4YCbCr 4:2:2YCbCr 4:2:0YUV |
Input
| Video Inputs | 3 x HDMI (2.0b) 1 x USB-C 1 x DisplayPort |
| Input Video Format | DisplayPort / HDMI / USB-C UHD 4K up to 60 fps |
| Embedded Audio Input | HDMI USB-C DisplayPort |
Output
| Video Outputs | 1 x HDMI (2.0b) 1 x RJ45 (HDBaseT) |
| Output Video Format | HDMI / RJ45 UHD 4K up to 60 fps |
| Audio Outputs | 1 x 1/8" / 3.5 mm TRS Stereo |
| Embedded Audio Output | HDMI RJ45 |
| Multiview Output | 4-Way Multiview |

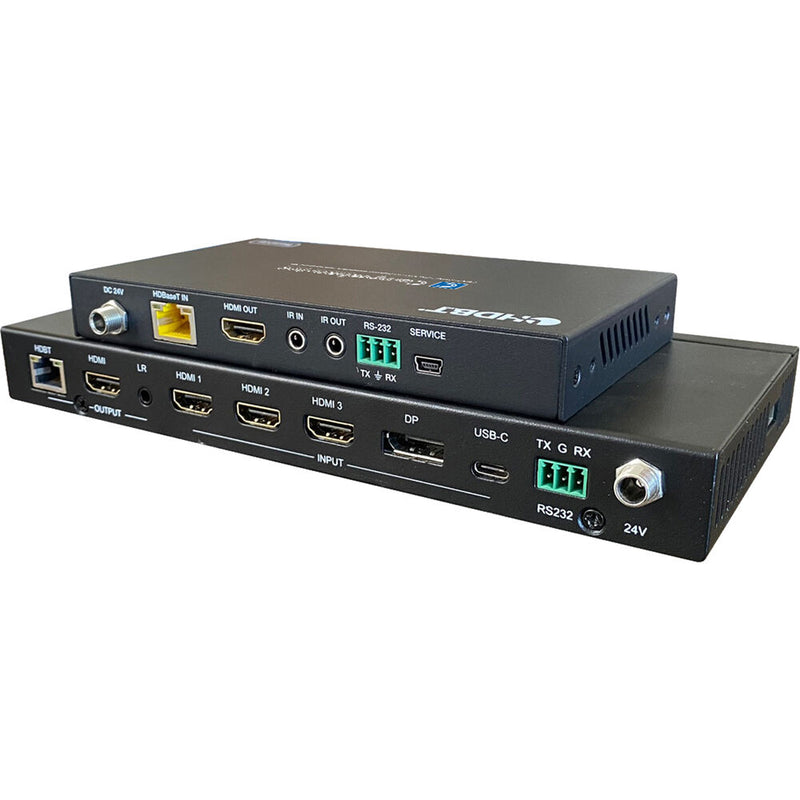

Connectivity
| Other I/O | 1 x Block 3-Pin RS-232 1 x USB-B Service 1 x 1/4" TRS IR Input 1 x 1/4" TRS IR Output |
| HDCP Support | Yes, Version 2.2 |
Hardware
| Wi-Fi | None |
| Bluetooth | None |
Power
| Power I/O | 1 x Barrel (24 VDC at 1 A) Input |
| Power Consumption | 14 W |
Environmental
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Storage Temperature | -4 to 140°F / -20 to 60°C |
| Operating Humidity | 10 to 50% (Non-Condensing) |
General
| Certifications | CE, FCC, RoHS *as per Manufacturer |
| Dimensions | 8.9 x 3.9 x 1" / 225 x 100 x 25 mm |
| Weight | 2.38 lb / 1.08 kg |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 118408.5 |
| 3-5 | ₹ 117200.25 |
| 5-10 | ₹ 114783.75 |
| 10+ | ₹ 112367.25 |
Bulk discount will be automatically applied during checkout based on quantity.
