Description
Comprehensive HDBT250 Overview

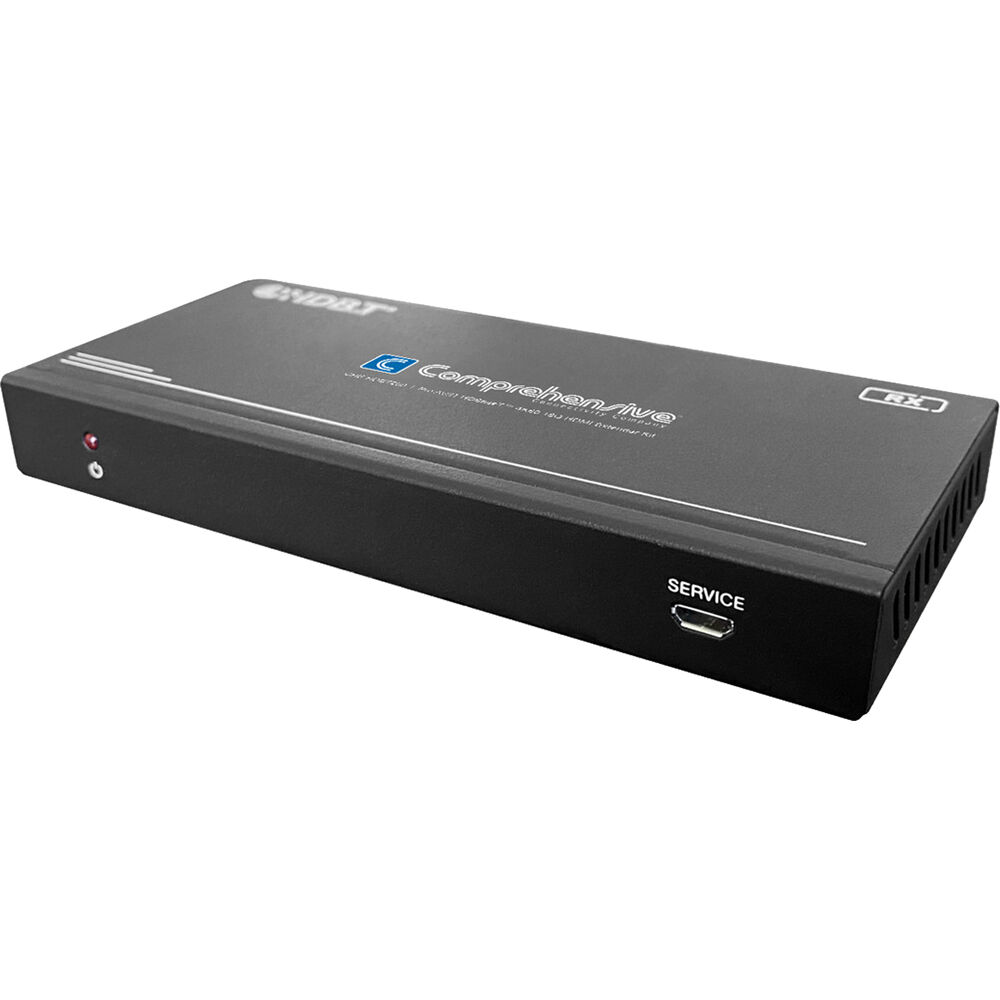

This Pro AV/IT HDBaseT 4K60 18G HDMI Extender Kit from Comprehensive can extend HDMI video and audio signals and bidirectional IR/CEC/RS-232 control over HDBaseT at a distance of up to 492' between transmitter and receiver via a single Cat 5e/6 cable. The system supports transmitting resolutions up to 4K60 up to 394' away and 1080p resolutions up to 492' away.
The transmitter supports local analog audio extraction to send audio to speakers, and it also features a local HDMI output for monitoring. In addition, the kit is equipped with bidirectional IR pass-through, which allows for source and display control, PoC (Power-over-Cable) to power both units with a single power supply, and it supports HDR and Dolby technologies.
In the Box
- Comprehensive Pro AV/IT HDBaseT 4K60 18G HDMI Extender Kit
- Transmitter
- Receiver
- IR Emitter Cable
- IR Receiver Cable
- 4 x Mounting Bracket
- 2 x 3-Pin Phoenix Connector
- Locking Power Adapter (24V, 1A)
- Limited 3-Year Manufacturer Warranty
Comprehensive HDBT250 Specs
| Inputs | 1 x HDMI (HDMI 2.0) Female |
| Embedded Audio Input | HDMI |
| Outputs | 1 x RJ45 (HDBaseT) Female 1 x HDMI (HDMI 2.0) Female |

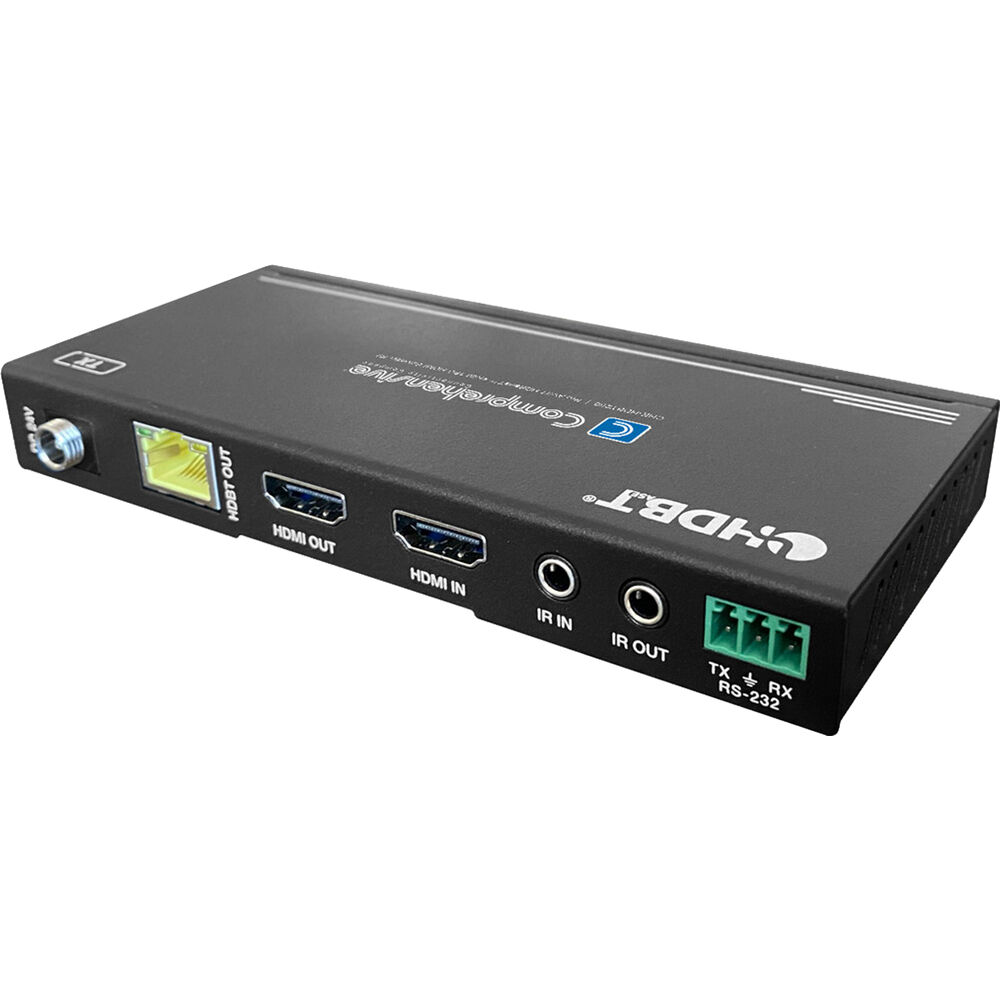

| Transmitter Other I/O | 1 x 1/8" / 3.5 mm IR Input 1 x 1/8" / 3.5 mm IR Output 1 x Block 3-Pin RS-232 Input 1 x Mini-USB 2.0 Input |
| Inputs | 1 x RJ45 (HDBaseT) Female |
| Outputs | 1 x HDMI (HDMI 2.0) Female 1 x 1/8" / 3.5 mm TRS Female |
| Embedded Audio Output | HDMI |

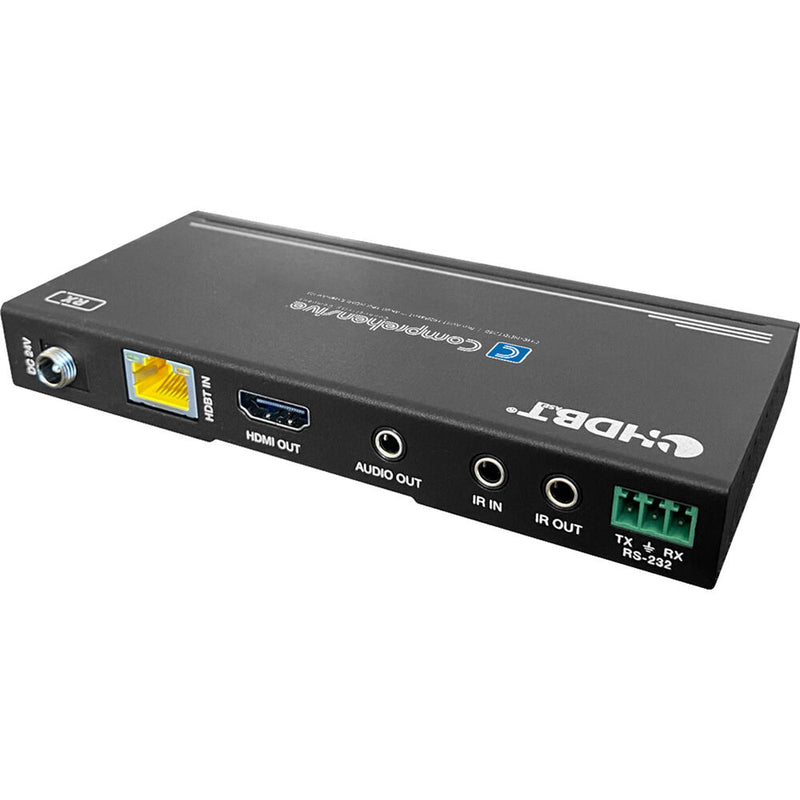

| Receiver Other I/O | 1 x 1/8" / 3.5 mm IR Input 1 x 1/8" / 3.5 mm IR Output 1 x Block 3-Pin RS-232 Input 1 x Mini-USB Input |
| HDCP Support | , Version 2.2 , Version 1.4 |
| EDID Support | None |
| Max Transmission Distance | DCI 4K at 60 Hz: 393.7' / 120 m (via Cat 5e/6) 1080p at 60 Hz: 492.1' / 150 m (via Cat 5e/6) |
| Video Format | HDMI DCI 4K: 30/50/60 fps DCI 2K: 30/50/60 fps 1080p 1080i 720p 480p |
| Audio Format | Analog: |
| DTS Compatibility | DTS-ES, DTS-HD Express, DTS-HD High Resolution, DTS-HD Master Audio, DTS:X |
| Dolby Compatibility | Dolby Digital, Dolby Digital Plus, Dolby TrueHD |
| Supported Cable Types | Cat 5e/6 |
| Transmitter Power Connector | 1 x Barrel (24 VDC at 1 A) Input |
| Receiver Power Connector | 1 x Barrel (24 VDC at 1 A) Input |
| PoE Support | PoH 802.3at |
| Transmitter Power Consumption | Device: 100 to 240 VAC (9.36 W) |
| Receiver Power Consumption | Device: 100 to 240 VAC (9.36 W) |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Storage Temperature | -4 to 140°F / -20 to 60°C |
| Operating Humidity | 20 to 90% (Non-Condensing) |
| Transmitter Dimensions | 5.5 x 2.6 x 0.7" / 140 x 65 x 18 mm |
| Receiver Dimensions | 0.5 x 0.2 x 0.1' / 140 x 65 x 18 mm |
| Transmitter Weight | 5.6 oz / 160 g |
| Receiver Weight | 5.5 oz / 155 g |
| Package Weight | 2 lb |
| Box Dimensions (LxWxH) | 10 x 7.3 x 3" |
