Comprehensive HD80U Overview
-
1Description
-
2Full 1080p at 60 Hz AV Distribution
-
3USB 2.0 Pass-Through
-
4Plug-and-Play, Power over Cable

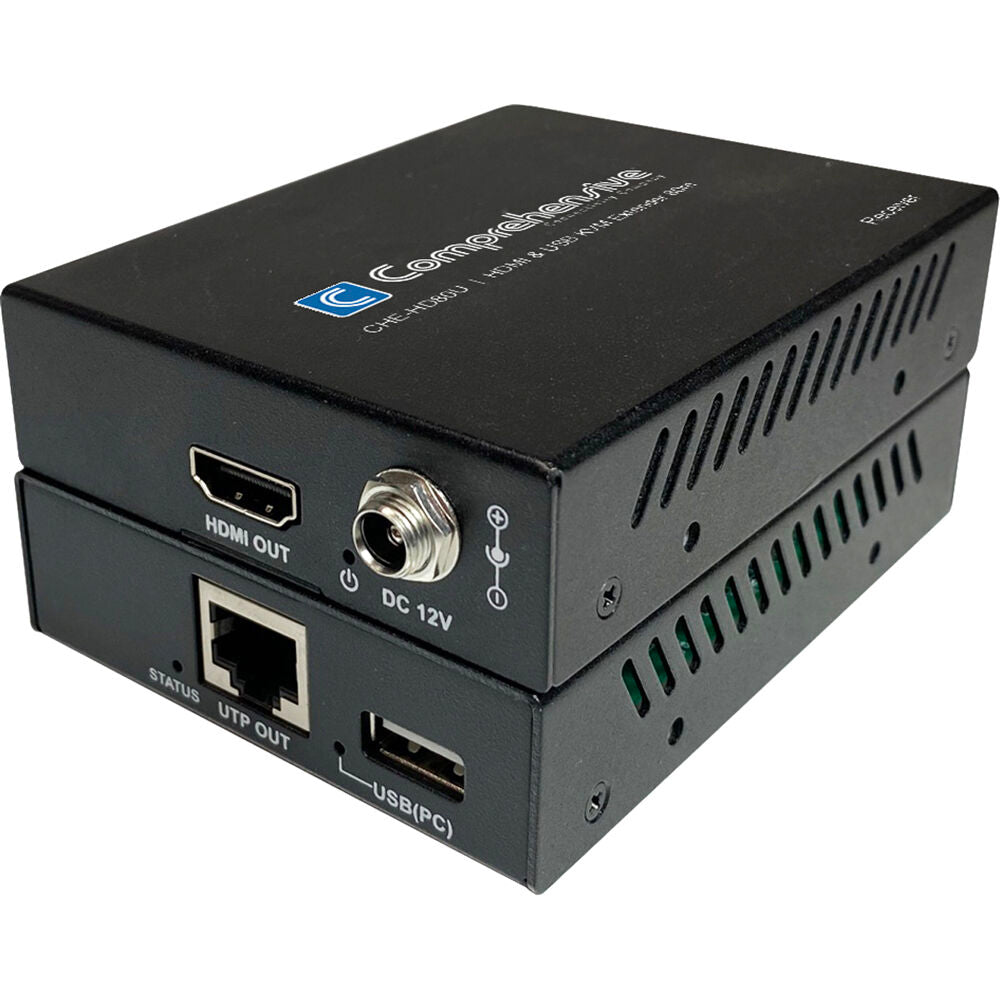

Integrate this Pro AV/IT 1080p KVM Extender Kit from Comprehensive into your classroom or office workflow to extend 1080p HDMI video and audio at 60 Hz over 260' via a Cat 5e/6 cable. Its high-speed USB 2.0 capabilities can work as a KVM extension of devices like keyboards and mice, or transfer data up to 480 Mb/s to webcams and touch boards. HDMI 1.3 and HDCP 1.4 supports full HD content and transmits lossless video.
Bidirectional power over cable capabilities can power either the transmitter or receiver with the single power adapter. The unit's plug and play compatibility makes it easy to integrate into your preexisting setup without the need for additional software installation. Its fan-less, heat dissipating design keeps it quiet for use in broadcast settings. Four included mount ears allow you install the kit into a rackmount system.
Full 1080p at 60 Hz AV Distribution
- Allows transmission up to 1080p at 60 Hz HD resolutions
- USB 2.0 data signals can be transmitted along with digital audio and video
- Ideal for point-to-point transmission up to 260'
USB 2.0 Pass-Through
- High-speed USB 2.0 pass-through capable of KVM functionality for keyboard/mouse extension
- Supports full data transfer capabilities up to 480 Mb/s for webcams, touch boards, and other USB 1.1/2.0/3.0 peripherals
Plug-and-Play, Power over Cable
- Plug-and-play compatibility allows you to integrate without driver or installation
- Bidirectional power over cable abilities with only one power adapter
![]()
UPC: 808447082647
In the Box
- Comprehensive Pro AV/IT 1080p KVM Extender Kit
- Power Supply
- 4 x Mounting Ear
- Limited 3-Year Warranty
Table of Contents
- Description
- Full 1080p at 60 Hz AV Distribution
- USB 2.0 Pass-Through
- Plug-and-Play, Power over Cable
Comprehensive HD80U Specs
Transmitter Interfaces
| Input Connectors |
1 x HDMI (HDMI 1.3) Female |
| Embedded Audio Input |
HDMI |
| Output Connectors |
1 x RJ45 Female |
| Transmitter Other I/O |
1 x USB Type-A Input |
Receiver Interfaces
| Input Connectors |
1 x RJ45 Female |
| Output Connectors |
1 x HDMI (HDMI 1.3) Female |
| Embedded Audio Output |
HDMI |
| Receiver Other I/O |
1 x USB Type-A Input |
Standards
| HDCP Support |
Version 1.4 |
| EDID Support |
Auto-Detect |
Transmission
| Max Transmission Distance |
262.5' / 80 m (via Cat 5e/6) |
| Video Format |
HDMI
1080p: 25/30/50/60 fps
720p: 50/60 fps
480p |
| Supported Cable Types |
Cat 5e/6 |
Power
| Transmitter Power Connector |
1 x Barrel (12 VDC at 2 A) Input |
| Receiver Power Connector |
1 x Barrel (12 VDC at 2 A) Input |
| Transmitter Power Consumption |
Device: (3.6 W) |
| Receiver Power Consumption |
Device: (3.5 W) |
Environmental
| Operating Temperature |
32 to 113°F / 0 to 45°C |
| Storage Temperature |
-4 to 158°F / -20 to 70°C |
| Operating Humidity |
10 to 90% (Non-Condensing) |
| Storage Humidity |
10 to 90% (Non-Condensing) |
General
| Transmitter Dimensions |
3.9 x 3 x 0.9" / 98 x 75 x 23 mm |
| Receiver Dimensions |
3.9 x 3 x 0.9" / 98 x 75 x 23 mm |
| Transmitter Weight |
7.9 oz / 225 g |
| Receiver Weight |
7.9 oz / 225 g |
Packaging Info
| Package Weight |
1.86 lb |
| Box Dimensions (LxWxH) |
8.1 x 5.5 x 3.1" |
