Description
Comprehensive LC-LC-MM-7M Overview

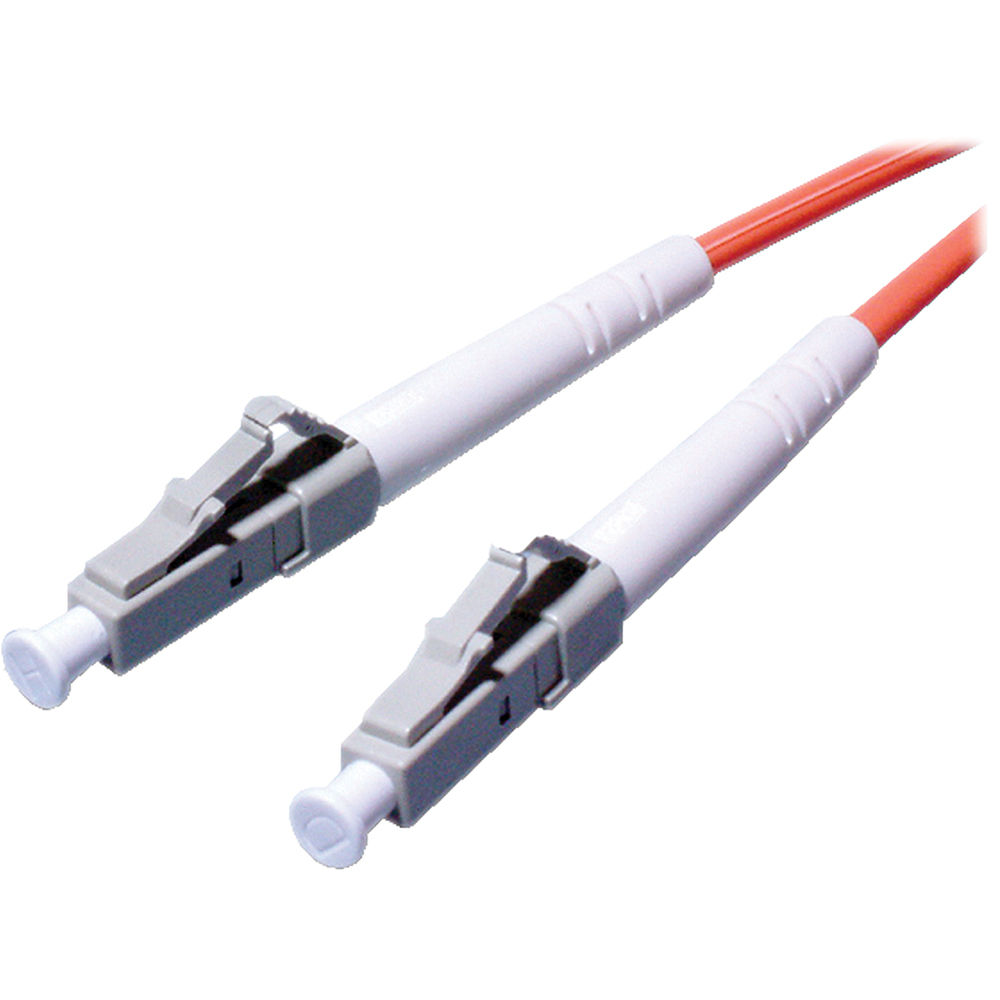

The 23' LC MM 3mm Zipcord LSZH Cable (Orange) from Comprehensive is a high quality single-mode patch cable having male LC connectors at both ends. This cable is suitable for gigabit Ethernet applications. Each cable is 100% optically inspected and tested for insertion loss.
Designed for Gigabit Ethernet applications
Jacket outer diameter of 3mm
UPC: 800991163957
In the Box
- Comprehensive LC MM 3mm Zipcord LSZH Cable (23', Orange)
- Limited Lifetime Manufacturer Warranty
Comprehensive LC-LC-MM-7M Specs
| Connectors |
LC Male to LC Male
|
| LC Connector Dimensions(H x W x D) |
0.42 x 0.49 x 1.96" (10.75 x 12.5 x 50 mm)
|
| Maximum Connector Loss |
0.3 dB
|
| Typical Connector Loss |
0.2 dB
|
| Typical Return Loss |
-25 dB
|
| Buffer Material |
PVC
|
| Buffer OD |
900 um
|
| Jacket Material |
PVC (OFNR riser-rated)
|
| Jacket OD |
0.01" (3 mm)
|
| Installation Tensile Load |
100 N (445 lb)
|
| Long-Term Tensile Load |
50 N (222 lb)
|
| Maximum Tensile Load |
100 N/cm
|
| Installation Minimum Bend Radius |
1.97" (5 cm)
|
| Long-Term Minimum Bend Radius |
1.2" (3 cm)
|
| Crush Resistance |
750 N/cm
|
| Impact Resistance |
1,000 cycles
|
| Flex Resistance |
5,000 cycles
|
| Attenuation |
At 1300 nm: 1.0 dB/km
At 850 nm: 3.5 dB/km |
| Operating Temperature |
-4 to 176°F (-20 to +80°C)
|
| Compliance |
RoHS
|
| Weight |
1.2 lb (0.54 kg)
|
Packaging Info
| Package Weight |
1.5 lb
|
| Box Dimensions (LxWxH) |
7 x 6 x 0.4"
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 9197.3 |
| 3-5 | ₹ 9103.45 |
| 5-10 | ₹ 8915.75 |
| 10+ | ₹ 8728.05 |
Bulk discount will be automatically applied during checkout based on quantity.
