Description
Comprehensive Cat 6a Shielded Overview

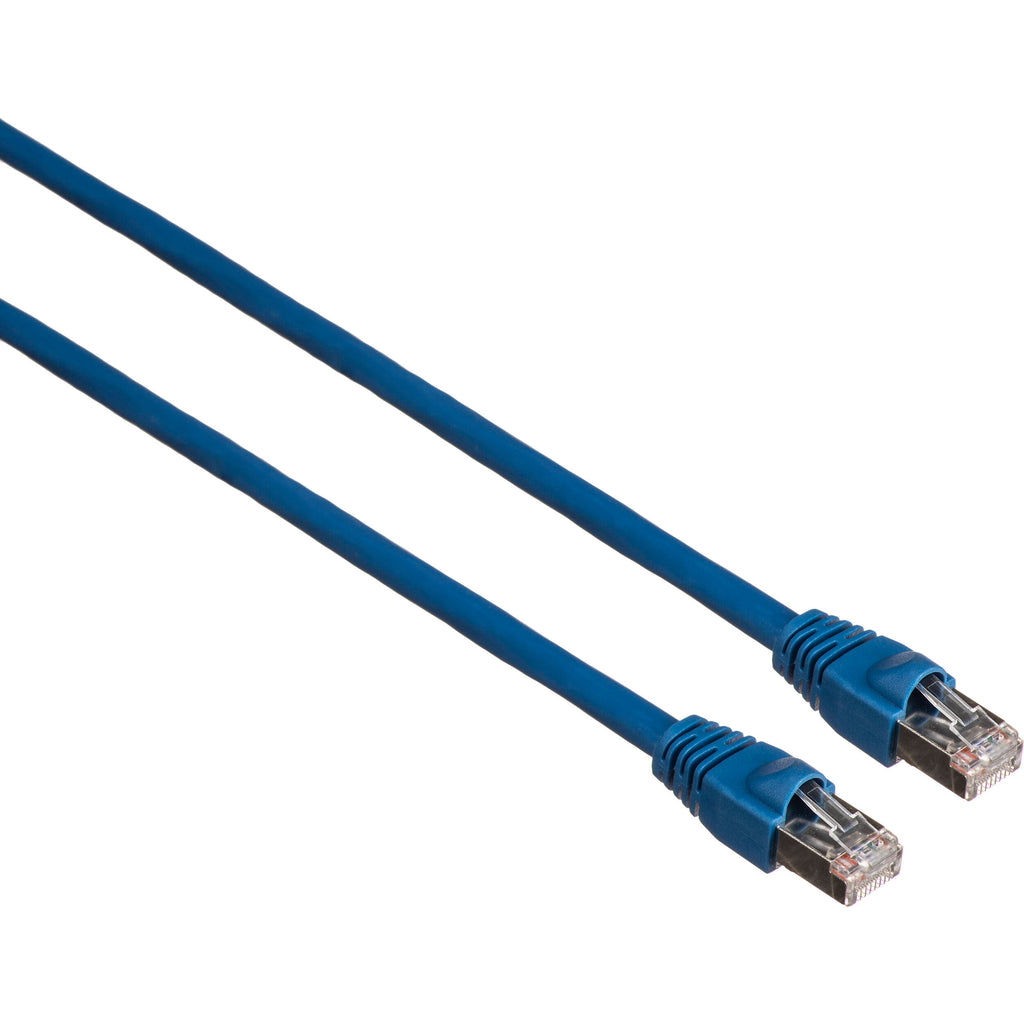

The blue Comprehensive CAT6a Shielded Patch Cable enables 10-Gigabit data transmission over a 4-conductor 24 AWG shielded twisted-pair copper cable, allowing connection distances of up to 328.08� (100 m). This 5' cable has been designed to meet Cat6a requirements that comprise of an electrical specification and an alien crosstalk of 500 MHz. Furthermore, Comprehensive has outfitted this cable with snagless boots and 50µ gold-plated contacts.
Supports IEEE 802.3af and is DTE power compliant
Provides NEXT performance beyond 600 MHz
Low-profile snagless hood is ideal for high-density switch applications
Compliant to Industry Standards: Official TIA/EIA568-B.2-10 and ISO/IEC 11801-compliant
Meets all Alien Crosstalk reduction specifications not affected by wire in adjacent cable 10 Gigabit/s transmission to 328.08' (100 m)
Performance tested to exceed 500 MHz
CAT6a Copper Patch Cable features molded connectors with snagless guards and gold-plated connector contacts that deliver maximum conductivity for high-speed data transmissions
Backward compatible with CAT5e and CAT6
PoE rated to 4 times the standard
UPC: 808447053623
In the Box
- Comprehensive CAT6a Shielded Patch Cable (5', Blue Finish)
- Limited Lifetime Manufacturer Warranty
Comprehensive Cat 6a Shielded Specs
Key Specs
| Cable Length |
5' / 1.5 m
|
| Ethernet Standards |
Cat 6a
|
| Connector 1 |
RJ45 Male
|
| Connector 2 |
RJ45 Male
|
General
| Cable Length |
5' / 1.5 m
|
| Ethernet Standards |
Cat 6a
|
| Connector 1 |
RJ45 Male
|
| Connector 2 |
RJ45 Male
|
Electrical
| Bandwidth Rating |
500 MHz
|
Physical
| Cable Configuration |
Stranded
|
| Boot Type |
Snagless
|
| Outer Diameter |
0.26" / 6.8 mm
|
| Wire Gauge |
24 AWG
|
| Jacket Type |
Polyvinyl Chloride (PVC)
|
| Conductor |
Bare Copper
|
| Connector Material |
Plastic
|
| Contact Material |
Copper
|
| Contact Plating |
Gold
|
| Environmental Protection |
No
|
| Certifications |
RoHS
|
| Weight |
0.1 lb / 0 kg
|
Packaging Info
| Package Weight |
0.22 lb
|
| Box Dimensions (LxWxH) |
9.2 x 6.1 x 0.8"
|
