Description

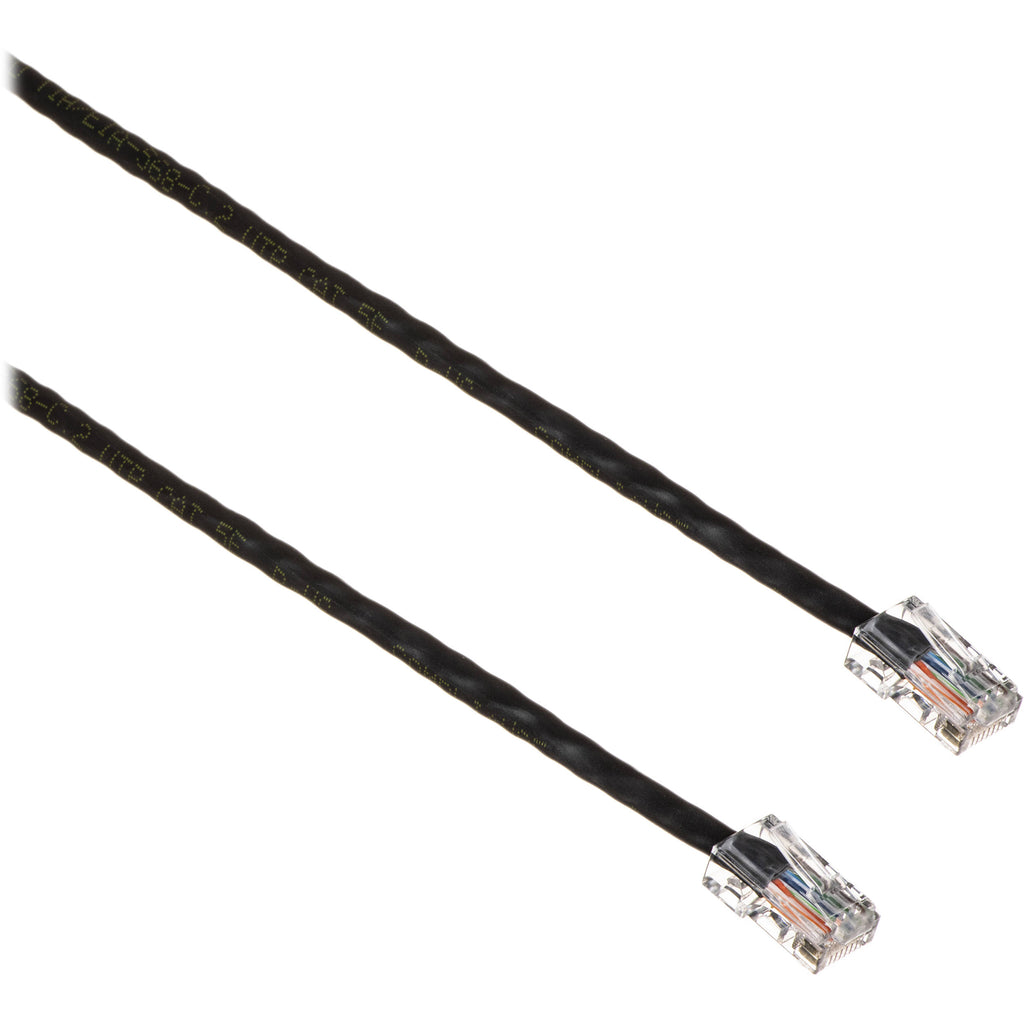

Comprehensive Cat 5e Assembly 350MHz Overview
The Comprehensive CAT5e 350 MHz Assembly Cable is used in enhanced Category 5 high-speed cabling to distribute data, voice, and video to meet the requirements of advanced fast Ethernet and gigabit computer networks. This cable is 100 feet long and will handle bandwidth-intensive applications of up to 350 MHz. Meeting Cat 5e TIA / EIA standards, it offers lower impedance and structural return loss (SRL) when compared to a standard 100 MHz cable. To keep Near-End Crosstalk levels to a minimum, Comprehensive has designed this cable with a shortened body plug without a boot. Furthermore, it has a black PVC jacket so you can color code your network installation.
Connector: 50 µ gold-plated RJ-45 male to male
Conductor: 4-pair 24 AWG stranded copper
Jacket: PVC
Applications: 1000 BASE-T; 100 BASE-T; 10 BASE-T (IEEE 802.3), 4/16 Mbps Token, Ring (IEEE 802.5); 100 VG-Any LAN, and 100 Mbps TP-PMD (ANSI X3T9.5); 55/155 Mbps ATM
Designed for network adapters, hubs, switches, routers, DSL / cable modems, patch panels, and twisted-pair applications
Exceeds Category 5e specifications
Wired: TSB 568B (AT&T 258A)
Certifications: TIA / EIA
UPC: 808447053890
In the Box
- Comprehensive CAT5e 350 MHz Assembly Cable (100 feet, Black)
- Limited Lifetime Manufacturer Warranty
Comprehensive Cat 5e Assembly 350MHz Specs
Key Specs
| Cable Length |
100' / 30.5 m
|
| Ethernet Standards |
Cat 5e
|
| Connector 1 |
RJ45 Male
|
| Connector 2 |
RJ45 Male
|
General
| Cable Length |
100' / 30.5 m
|
| Ethernet Standards |
Cat 5e
|
| Connector 1 |
RJ45 Male
|
| Connector 2 |
RJ45 Male
|
Electrical
| Bandwidth Rating |
100 MHz
|
| Conductor DC Resistance |
0.027 Ohms/ft (Up to 3280' / 1000 m)
|
Physical
| Cable Configuration |
Stranded
|
| Pin Assignment |
T568B
|
| Boot Type |
No
|
| Outer Diameter |
0.2" / 5.3 mm
|
| Wire Gauge |
24 AWG
|
| Jacket Type |
Polyvinyl Chloride (PVC)
|
| Conductor |
Bare Copper
|
| Connector Material |
Plastic
|
| Contact Material |
Copper
|
| Contact Plating |
Gold
|
| Environmental Protection |
No
|
| Certifications |
RoHS
|
| Weight |
2 lb / 0.9 kg
|
Packaging Info
| Package Weight |
1.85 lb
|
| Box Dimensions (LxWxH) |
7.3 x 6.4 x 2.2"
|
