Description

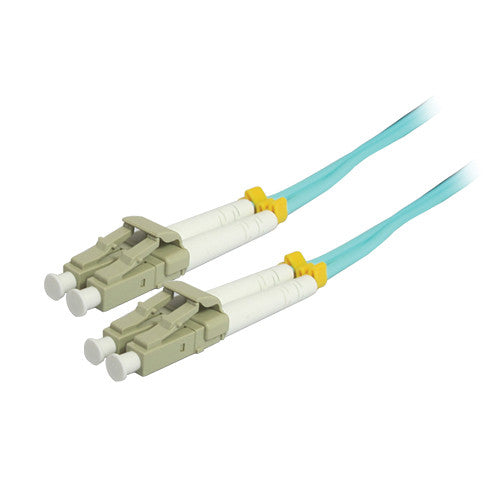

Comprehensive LC-LC-OM3-1M Overview
The aqua colored 3.3' 10GB LC/LC Duplex 50/125 Multimode Fiber Patch Cable from Comprehensive is a laser-optimized multimode fiber (LOMMF) cable that provides backward compatibility with existing 50/125 equipment while providing the performance headroom required to support laser light sources and 10 Gigabit applications. This Optical Multimode 3 (OM3) fiber cable supports 2,000 MHz/km EMB at 850nm, and provides 10 Gigabit transfers up to 984.2' (300m) using an 850nm VCSEL source. The aqua colored jacket is PVC (OFNR-rated).
10GB application support
Duplex cable is joined together in a zipcord style for easy separation
Features a laser-optimized 50µm core and 125µm cladding
Can be used with both LED and VCSEL laser light sources
Ceramic ferrules for long-lasting reliability and precision alignment
Used to connect patch panels and/or network devices that require 50/125 multimode cabling
OFNR jacket complies with stringent building codes
RoHS compliant
UPC: 808447068658
In the Box
- Comprehensive 10GB LC/LC Duplex 50/125 Multimode Fiber Patch Cable (Aqua, 3.3')
- Limited Lifetime Manufacturer Warranty
Comprehensive LC-LC-OM3-1M Specs
| Connector |
2 x LC male
|
| Fiber Type |
Optical Multimode 3 (OM3) fiber supporting 2,000 MHz/km EMB at 850 nm
|
| Loss |
Maximum Connector Loss: 0.3 dB
Typical Connector Loss: 0.2 dB Typical Return Loss: -25 dB |
| Construction |
Buffer Material: PVC
Buffer OD: 0.035" (900 µm) Jacket Material: PVC (OFNR riser-rated) Jacket OD: 0.1" (3.0 mm) |
| Additional |
Installation Tensile Load: 100 N (445 lb / 202 kg)
Long-Term Tensile Load: 50 N (222 lb / 101 kg) Maximum Tensile Load: 100 N/cm Installation (Loaded) Minimum Bend Radius: 1.97" (5.00 cm) Long-Term (Unloaded) Minimum Bend Radius: 1.2" (3.0 cm) Crush Resistance: 750 N/cm Impact Resistance: 1,000 cycles Flex Resistance: 5,000 cycles Attenuation at 1,300 nm: 1 dB/km Attenuation at 850 nm: 3.5 dB/km |
| Operating Temperature |
-4 to 176°F (-20 to 80°C)
|
| Compliance |
RoHS
|
| Dimensions |
LC Connector: 0.4 x 0.5 x 2.0" (10.8 x 12.5 x 50.0 mm) (with installed duplex clip)
|
| Cable Length |
3.3' (1.0 m)
|
| Weight |
0.06 lb (27.2 g)
|
Packaging Info
| Package Weight |
0.03 lb
|
| Box Dimensions (LxWxH) |
8 x 7 x 0.5"
|
