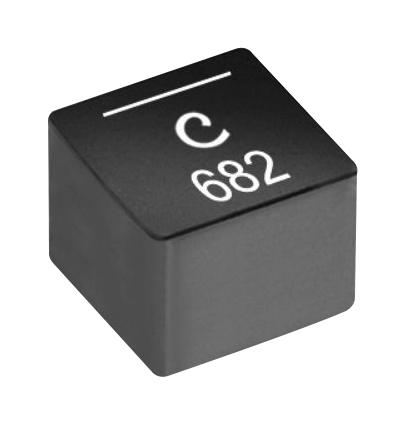

This is a Power Inductor (SMD), 8.2 µH, 9.4 A, Shielded, 7.6 A, XEL6060 Series, 6.56mm x 6.36mm x 6.1mm product from COILCRAFT with the model number XEL6060-822MEC
Product details
| Inductance |
8.2µH |
| RMS Current (Irms) |
9.4A |
| Inductor Construction |
Shielded |
| Saturation Current (Isat) |
7.6A |
| Product Range |
XEL6060 Series |
| Power Inductor Case |
6.56mm x 6.36mm x 6.1mm |
| DC Resistance Max |
0.02498ohm |
| Inductance Tolerance |
± 20% |
Other details
| Brand |
COILCRAFT |
| Part Number |
XEL6060-822MEC |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
