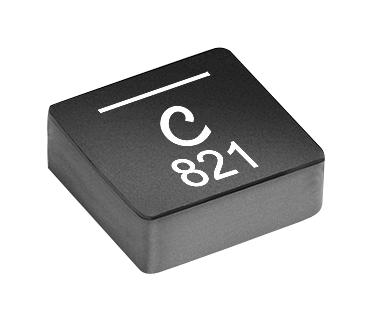

This is a Power Inductor (SMD), 820 nH, 16 A, Shielded, 21 A, XEL6030 Series, 6.56mm x 6.36mm x 3.2mm product from COILCRAFT with the model number XEL6030-821MEC
Product details
| Inductance |
820nH |
| RMS Current (Irms) |
16A |
| Inductor Construction |
Shielded |
| Saturation Current (Isat) |
21A |
| Product Range |
XEL6030 Series |
| Power Inductor Case |
6.56mm x 6.36mm x 3.2mm |
| DC Resistance Max |
0.0056ohm |
| Inductance Tolerance |
± 20% |
| RoHS Phthalates Compliant |
Yes |
Other details
| Brand |
COILCRAFT |
| Part Number |
XEL6030-821MEC |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
