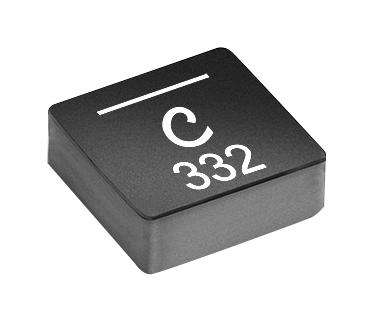

This is a Power Inductor (SMD), 3.3 µH, 8 A, Shielded, 10.5 A, XEL6030 Series, 6.56mm x 6.36mm x 3.1mm product from COILCRAFT with the model number XEL6030-332MEC
Product details
| Inductance |
3.3µH |
| RMS Current (Irms) |
8A |
| Inductor Construction |
Shielded |
| Saturation Current (Isat) |
10.5A |
| Product Range |
XEL6030 Series |
| Power Inductor Case |
6.56mm x 6.36mm x 3.1mm |
| DC Resistance Max |
0.021µohm |
| Inductance Tolerance |
± 20% |
| RoHS Phthalates Compliant |
Yes |
Other details
| Brand |
COILCRAFT |
| Part Number |
XEL6030-332MEC |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
