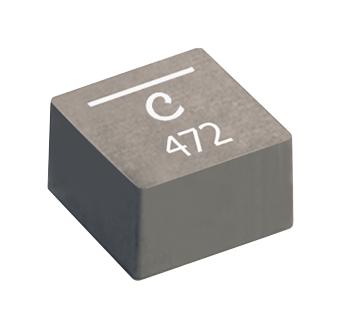

This is a Power Inductor (SMD), AEC-Q200, 900 nH, 11.2 A, Shielded, 10 A, XEL4030 Series, 4mm x 4mm x 3.1mm product from COILCRAFT with the model number XEL4030-901MEB
Product details
| Inductance |
900nH |
| RMS Current (Irms) |
11.2A |
| Inductor Construction |
Shielded |
| Saturation Current (Isat) |
10A |
| Product Range |
XEL4030 Series |
| Power Inductor Case |
4mm x 4mm x 3.1mm |
| DC Resistance Max |
0.0088ohm |
| Inductance Tolerance |
± 20% |
| RoHS Phthalates Compliant |
Yes |
Other details
| Brand |
COILCRAFT |
| Part Number |
XEL4030-901MEB |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
