Description

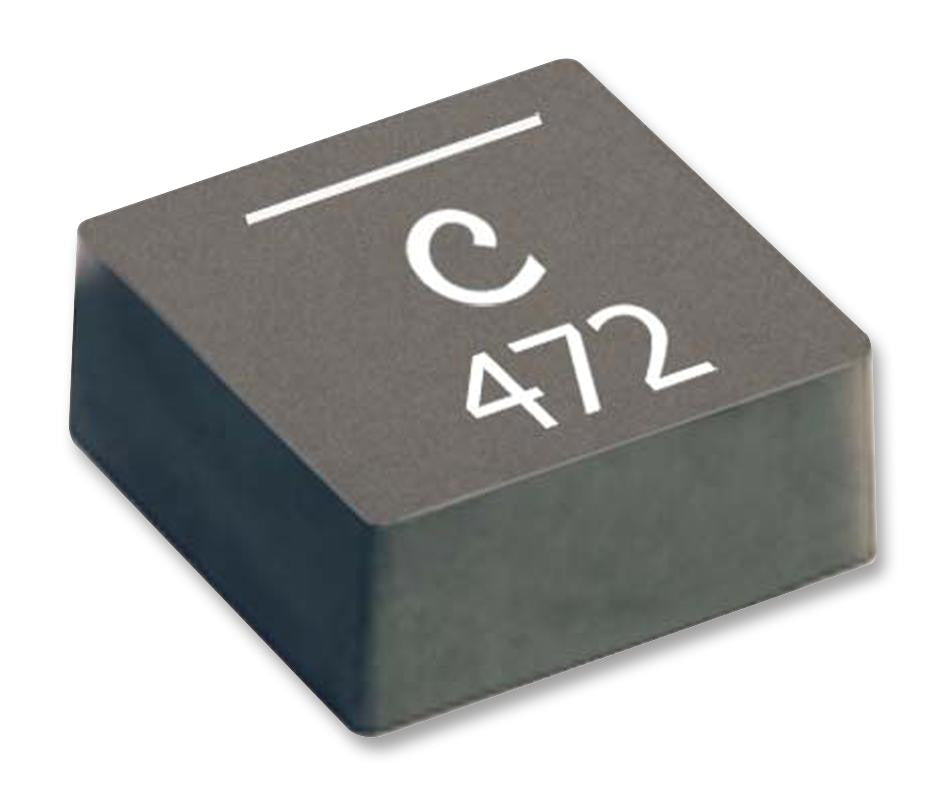

The XAL6060-103MEC is a surface mount high current shielded Power Inductor with composite core and tin-silver (96.5/3.5) over copper terminations. Resistance to soldering heat maximum three 40 seconds reflows at +260°C, parts cooled to room temperature between cycles. This inductor features moisture sensitivity level (MSL) of 1, failures in time (FIT)/mean time between failures (MTBF) is 38 per billion hours/26,315,789 hours, calculated per Telcordia SR-332 and tested to MIL-STD-202 method 215 plus an additional aqueous wash. The DC current at 25°C causes an inductance drop of 30% typical from its value without current and Inductance tested at 100kHz, 0.1Vrms, 0Adc.
- High current and very low DCR
- Halogen-free
- Soft saturation
- AEC-200 grade 1 qualified
Applications
Power Management, Automotive
Product details
| Power Inductor Case | 6.56mm x 6.36mm x 6.1mm |
| DC Resistance Max | 0.02982ohm |
| Saturation Current (Isat) | 7.6A |
| Packaging | Cut Tape |
| Inductance Tolerance | ± 20% |
| Product Range | XAL6060 Series |
| RMS Current (Irms) | 7A |
| Inductance | 10µH |
| Inductor Construction | Shielded |
Other details
| Brand | COILCRAFT |
| Part Number | XAL6060-103MEC |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
