Description

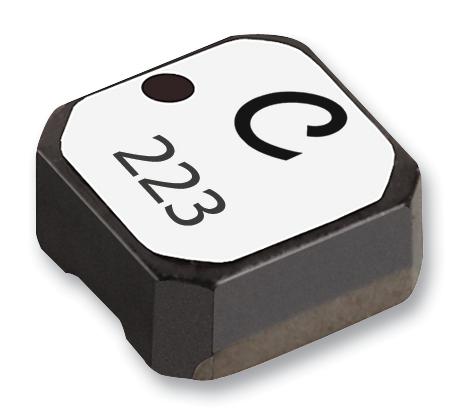

The LPS3314 series shielded Power Inductor with ferrite core and matte tin over nickel over silver termination.
- Resistance to soldering heat
- Moisture Sensitivity Level (MSL) 1
- PCB washing - Only pure water or alcohol recommended
- Very low DCR
- Excellent current handling
- Halogen-free
Industrial, Power Management
Product details
| Inductance | 4.7µH |
| RMS Current (Irms) | 900mA |
| Inductor Construction | Shielded |
| Saturation Current (Isat) | 990mA |
| Product Range | LPS3314 Series |
| Power Inductor Case | 3.3mm x 3.3mm x 1.3mm |
| DC Resistance Max | 0.175ohm |
| Inductance Tolerance | ± 20% |
| RoHS Phthalates Compliant | Yes |
Other details
| Brand | COILCRAFT |
| Part Number | LPS3314-472MRB |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
