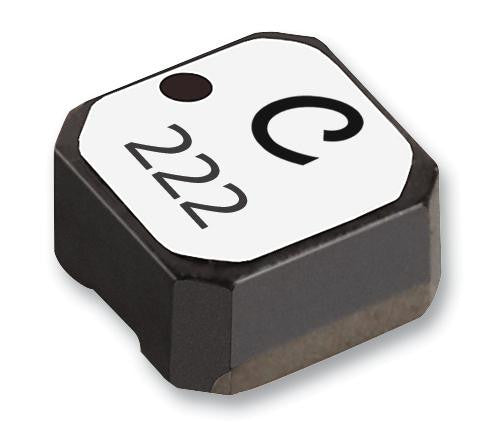

Product details
| Power Inductor Case |
2.95mm x 2.95mm x 1.4mm |
| DC Resistance Max |
0.2ohm |
| Saturation Current (Isat) |
1.2A |
| Packaging |
Cut Tape |
| Inductance Tolerance |
± 20% |
| Product Range |
LPS3015 Series |
| RMS Current (Irms) |
900mA |
| Inductance |
4.7µH |
| Inductor Construction |
Shielded |
Other details
| Brand |
COILCRAFT |
| Part Number |
LPS3015-472MRB |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
