The LPD6235 series Coupled Miniature Shielded Inductor with ferrite core and matte tin over nickel over silver termination. It provides high inductance, high efficiency and excellent current handling. The tight coupling (k >=0.97) makes the LPD6235 series ideal for use in a variety of circuits including flyback, multi-output buck, SEPIC and Zeta applications. It can be used as two single inductors connected in series or parallel, as a common mode choke or as a 1:1 transformer.
- Resistance to soldering heat
- Moisture sensitivity level 1
- PCB washing is recommended by only pure water or alcohol
- Halogen-free
- 100V Winding to winding isolation
Applications
Power Management, Industrial
Product details
| Product Range |
LPD6235 Series |
| Inductance, Parallel |
22µH |
| RMS Current - Parallel |
850mA |
| Saturation Current - Parallel |
1.5A |
| Coupled Inductor Case |
6mm x 6mm x 3.5mm |
| DC Resistance Max - Parallel |
0.15ohm |
| RoHS Phthalates Compliant |
Yes |
Other details
| Brand |
COILCRAFT |
| Part Number |
LPD6235-223MRC |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |

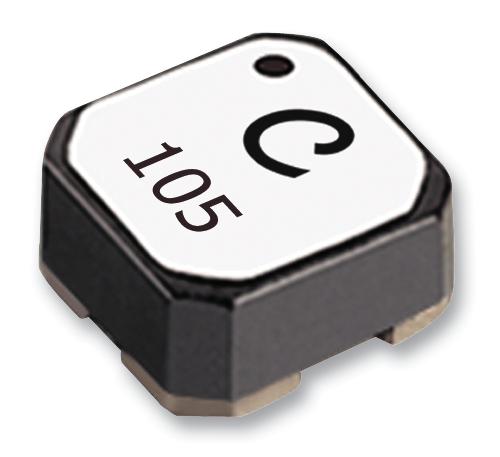

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
