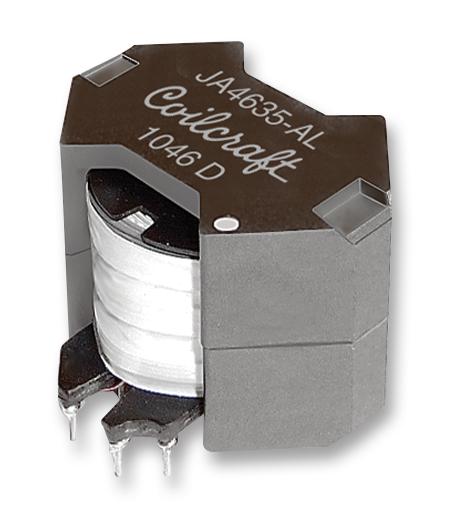

The JA4635-AL is a Flyback Transformer with ferrite core and tin-silver (96.5/3.5) over tin over nickel over phosphor bronze terminations. This transformer is developed for microchip grid-connected solar microinverter using dsPIC.
- 3000Vrms (1 minute) isolation from primary to secondary windings
- 22 to 55VDC Input voltage
Applications
Power Management, Alternative Energy
Product details
SMPS Transformer Type |
Flyback |
Current Rating |
10.5A |
Frequency Range |
150kHz |
Power Rating |
- |
Isolation Voltage |
3kV |
Primary Voltages |
- |
Secondary Voltages |
110V |
Transformer Mounting |
Through Hole |
Product Range |
- |
Other details
Brand |
COILCRAFT |
Part Number |
JA4635-AL |
Quantity |
Each |
Technical Data Sheet EN |
|
