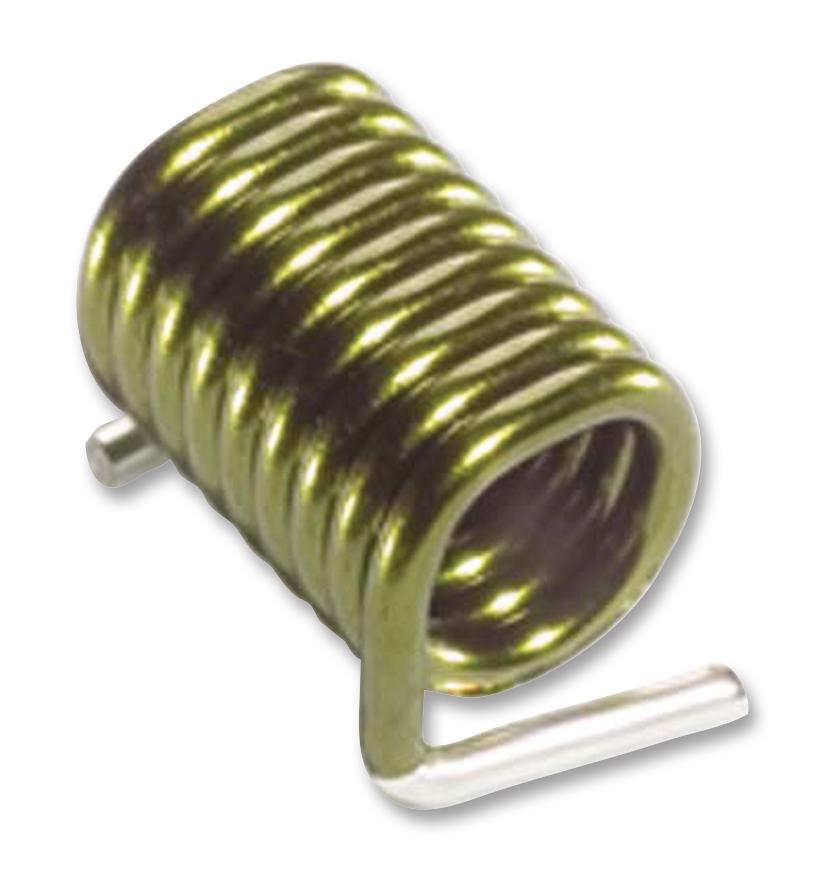

This is a Air Core Inductor, Square, 68 nH, 5.5 A, 1515SQ Series, ± 2%, 5.33mm x 3.56mm x 3.73mm, 8600 µohm product from COILCRAFT with the model number 1515SQ-68NGEB
Product details
| Inductance |
68nH |
| RMS Current (Irms) |
5.5A |
| Product Range |
1515SQ Series |
| Inductance Tolerance |
± 2% |
| Air Core Inductor Case |
5.33mm x 3.56mm x 3.73mm |
| DC Resistance Max |
0.0086ohm |
| Self Resonant Frequency Min |
2.13GHz |
| Packaging |
Cut Tape |
Other details
| Brand |
COILCRAFT |
| Part Number |
1515SQ-68NGEB |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
