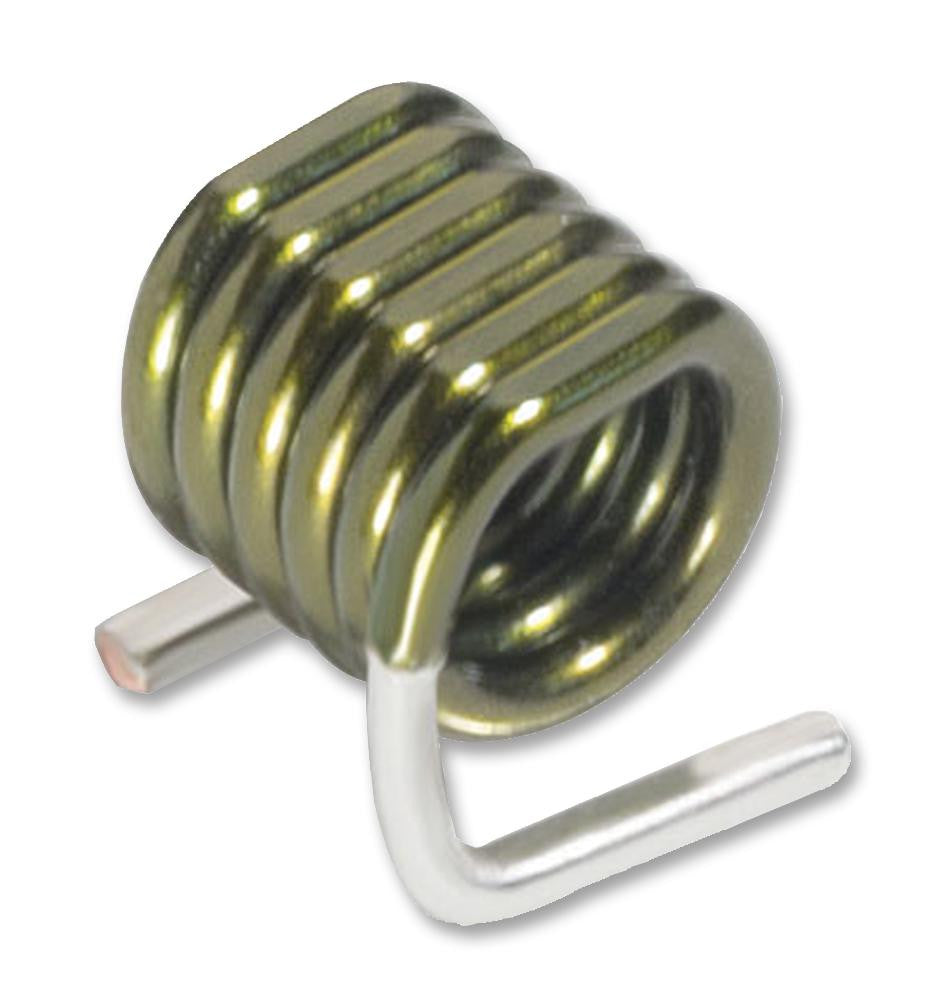

This is a Air Core Inductor, Square, 47 nH, 4.4 A, 1111SQ Series, ± 2%, 3.3mm x 2.67mm x 2.79mm, 0.0113 ohm product from COILCRAFT with the model number 1111SQ-47NGEB
Product details
| Inductance |
47nH |
| RMS Current (Irms) |
4.4A |
| Product Range |
1111SQ Series |
| Inductance Tolerance |
± 2% |
| Air Core Inductor Case |
3.3mm x 2.67mm x 2.79mm |
| DC Resistance Max |
0.0113ohm |
| Self Resonant Frequency Min |
2.2GHz |
| Packaging |
Cut Tape |
Other details
| Brand |
COILCRAFT |
| Part Number |
1111SQ-47NGEB |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
