Description
Cobalt EMDE-ANC Overview

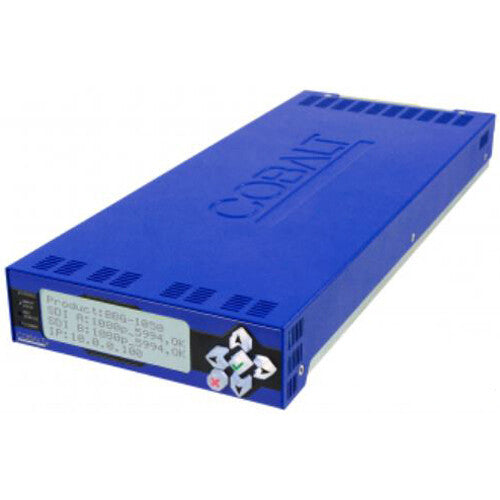

The Cobalt BBG-1050-EMDE-ANC 3G/HD/SD-SDI Ancillary Data Embedder/De-Embedder offers full VANC/HANC ancillary data de-embedding and embedding for 3G/HD/SD-SDI streams. The easy-to-use UI allows direct access to DID and SDID locations to extract or insert user data such as camera PTZ, SCTE 104, closed captioning read/insert, GPI/GPO via ANC, or other specialized user payloads.
Data insertion and extraction happen via serial or IP interface. The BBG-1050-EMDE-ANC can be remote-controlled using DashBoard. The compact standalone form factor allows for desktop usage, as well as its 1/3-rack size that allows three units to be installed in a 1 RU space (an optional mounting tray is available and provides secure mounting of the units on a standard 19" frame).
- Full insertion/extraction access to DID/SDID ancillary data such as camera PTZ, SCTE 104, closed captioning, GPI/GPO via ANC, and other specialized user payloads
- HANC/VANC data interchange between SDI and GPIO, serial, and IP/Ethernet interfaces
- Full user VANC/HANC access
- SMPTE 337 embed/de-embed allows the serial user data to be embedded and de-embedded over unused embedded audio pairs
- Low-latency pass-thru for all 3G/HD/SD-SDI payloads
- Latching relay protect SDI output provides input SDI bypass backup, even in the event of power failure
- Low-power/high-density design; less than 18W
- Compact footprint: Up to three units in a 1 RU space (optional tray provides secure captive-fastener mounting of three units in a 1 RU tray)
- Uses DashBoard remote control (device appears as a single-card frame)
Cobalt EMDE-ANC Specs
| Compatibility | Not Specified by Manufacturer |

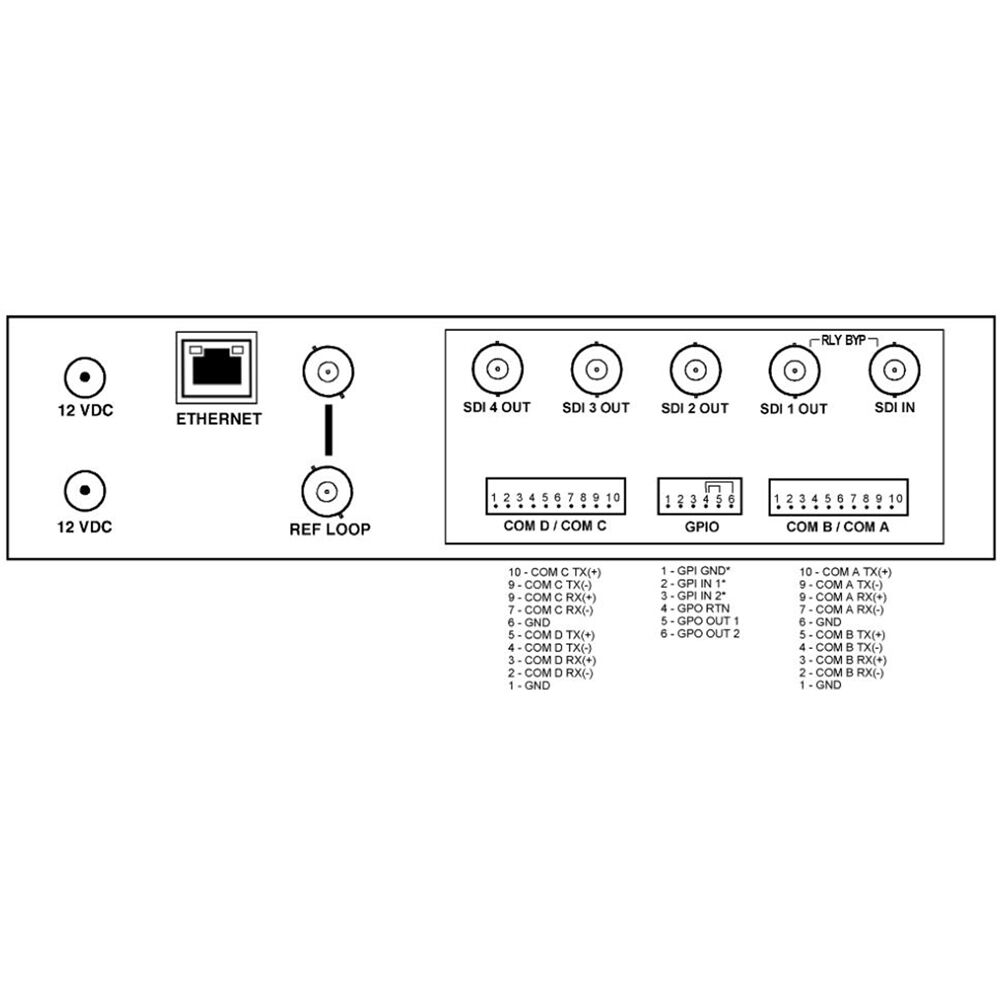

| Video I/O | 1 x BNC (3G-SDI) Input 1 x BNC (3G-SDI) Output 1 x BNC Input 1 x BNC Loop Output |
| Power Source | Proprietary Interface |
| DC Input Power | 12 VDC |
| Power Consumption | 18 W |
| Cable Length | Not Specified by Manufacturer |
| Dimensions | Not Specified by Manufacturer |
| Weight | Not Specified by Manufacturer |
Cobalt EMDE-ANC Reviews
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 607075.7 |
| 3-5 | ₹ 600881.05 |
| 5-10 | ₹ 588491.75 |
| 10+ | ₹ 576102.45 |
Bulk discount will be automatically applied during checkout based on quantity.
