Description
Cobalt 4ENC-4K Overview
- 1Description
- 2Industry-Standard Form Factor
- 3Video Pre-Processing and Encoding
- 4Audio Encoding
- 5Ancillary Data Support
- 6Software Licensable Options

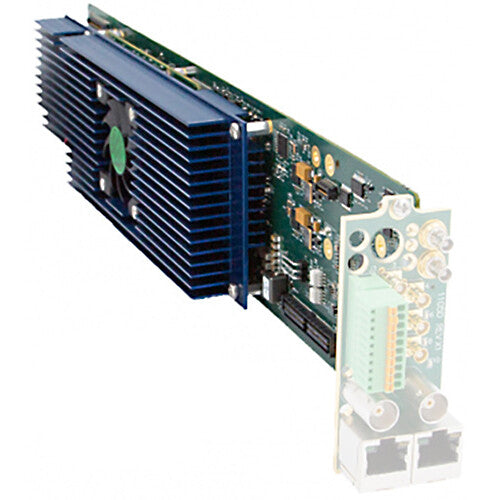

High-end broadcast applications have future-proof, format-integration expectations and the Cobalt 9992-4ENC-4K-HEVC Software-Defined Broadcast Encoder is a state-of-the-art, multi-channel, broadcast-grade encoder card that keeps your workflow one step ahead of the curve. Fully supporting MPEG-2, MPEG-4 AVC (H.264), and HEVC (H.265) formats, this industry-standard card module meets the most stringent requirements for today's broadcast applications, offering compatibility with existing openGear frames.
Four independent 1080p60 input streams, or a single UHD 4Kp60 input stream are supported, with compatibility with all network protocols. The unit also offers 4:2:0 8-/10-bit decoding, upgradeable to 4:2:2 with an optional license, and multi-standard NTSC and PAL support for 480i, 480p, 576i, 720p, 1080i, 1080PsF, 1080p, and UHD 4K video.
Industry-Standard Form Factor
The unit is offered in the industry-standard openGear format and is compatible with existing deployed openGear frames.
Video Pre-Processing and Encoding
Pre-processing:
- Support for arbitrary down-scaling input video, extending down to 320x240
- Support for up-scaling input video (future release availability)
- Interlaced to progressive conversion
- Progressive to interlaced conversion (future release availability)
- Frame rate conversion
- Basic noise-reduction filter and spatial filter
- Enhanced pre-processing filters (future release availability)
- High dynamic range (HDR) support
- MPEG-2
- MPEG-4 AVC (H.264)
- HEVC (H.265)
- Support for up to four independent 1080p60 encode sessions (all encode sessions must use the same standard; mixed-standard encoding is not supported)
- Support for UHD encoding in AVC and HEVC modes (maximum resolution: 4096x2160p60)
- UHD (4K) encoding: 150 Mb/s
- HD encoding: 40 Mb/s (the first HD channel can be as high as 150 Mb/s)
- Support for 4:2:0 and 4:2:2 color spaces in all modes
- Support for 8-/10-bit encoding in all modes
- Full control of GOP size and structure
- Advanced compression controls available
Audio Encoding
Encoding standards:
- MPEG-1 Layer II
- AAC-LC
- HE-AAC (v1/v2)
- Dolby AC-3
- Dolby EAC-3
- LPCM (SMPTE-302M)
- Dolby AC-3/EAC-3 pass-through support (5.1-Surround encoding available for AAC-LC, HE-AAC, Dolby AC-3 and Dolby EAC-3; subject to licensing)
Maximum number of channels supported (subject to licensing):
- MPEG-1 Layer II: 16 stereo pairs (32 audio channels)
- Dolby AC-3: 16 stereo pairs (32 audio channels)
- Dolby EAC-3: 8 stereo pairs (16 audio channels)
- AAC-LC: 8 stereo pairs (16 audio channels)
- HE-AAC (v1/v2): 8 stereo pairs (16 audio channels)
- Optional support for 5.1 surround sound encoding in AAC and Dolby modes
- Optional audio module increases the capacity to 32 stereo pairs (64 audio channels), allowing full 16-channel support for the four HD inputs, in all compression modes (future release availability)
Ancillary Data Support
- Closed-Captioning: SMPTE-334M (EIA-608 and EIA-708 supported), Line 21 (SD sources)
- OP-47/SMPTE RDD-08 teletext subtitles (future release availability)
- AFD: SMPTE-2016, Line 20/22 WSS (SD sources)
- SCTE-104 to SCTE-35 conversion
- SMPTE-2038 generic ancillary data transport (timecode, KLV, etc.)
Software Licensable Options
- +MP1L2-AAC: additional MPEG-1 Layer II, AAC-LC, and HE-AAC audio encoding per pair. Three AAC licenses can be combined to allow one 5.1 surround encode
- +ENCD-2.0: Dolby Digital/Dolby Digital Plus stereo audio encoding license
- +ENCD-5.1: Dolby Digital/Dolby Digital Plus 5.1 surround sound audio encoding license
- +RIST/ARQ-ENC: RIST RTP/ARQ support (transport stream-based option; only one license needed)
- +SRT-ENC: SRT support (per unit)
- +RIST/ENCRP-ENC: RIST Encryption/authentication support (per unit; requires the +RIST/ARQ-ENC license to also be present on the encoder)
- +SMPTE2022: SMPTE-2022 support provides one FEC insertion per device ethernet port (transport stream-based option; only one license needed per unit)
- +422: Adds 4:2:2 encoding support (transport stream-based option; only one license needed per unit)
- +ULL: Adds support for HEVC ultra-low latency support (per unit). Encoder latency is 10ms for the common frame rates (in this mode, the maximum encoder capacity is one 4K or two HD streams)
Table of Contents
- Description
- Industry-Standard Form Factor
- Video Pre-Processing and Encoding
- Audio Encoding
- Ancillary Data Support
- Software Licensable Options
Cobalt 4ENC-4K Specs
| System Connection | Proprietary |
| Video Inputs | 2 x BNC (3G-SDI / 6G-SDI / 12G-SDI) Female 2 x BNC (3G-SDI) Female |
| Audio Inputs | None |
| Video Outputs | 2 x BNC (DVB-ASI) Female 2 x RJ45 Female |
| Simultaneous Multi-Input Support | Yes: 4 Simultaneous Inputs |
| Input Video Format | SDI (8/10-Bit 4:2:0) DCI 4K up to 60 fps 1080PsF up to 60 fps 1080p up to 60 fps 1080i up to 60 fps 720p up to 60 fps 576i / 625 lines up to 25 fps 480p up to 30 fps 480i / 525 lines up to 29.97 fps |
| Output Video Format | SDI (8/10-Bit 4:2:0) UHD 4K up to 60 fps 1080PsF up to 60 fps 1080p up to 60 fps 1080i up to 60 fps 720p up to 60 fps 576i / 625 lines 25 fps 480p up to 30 fps 480i / 525 lines up to 29.97 fps |
| Embedded Audio | SDI: 8-Channel |
Standards
| HDR Compatibility | Not Specified by Manufacturer |
| Dolby Compatibility | Dolby Digital, Dolby Digital Plus |
Hardware
| OS Compatibility | macOS 10 or Later Windows Linux *As of May, 2022: Check with manufacturer for the most up-to-date compatibility |
