Description
COAX Connectors 67-005-B66-FB1 Overview

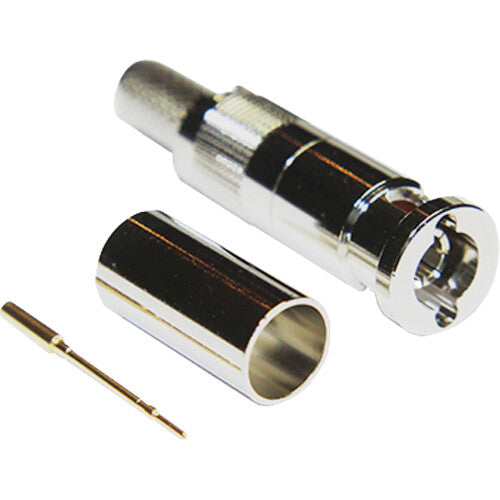

This 100-pack of Micro-BNC Straight Crimp Plug for Belden 1505A connectors from COAX Connectors features gold-plated center and nickel-plated outer contacts. Supporting 3G and 12G signals, and tested to support signals up to 18 GHz signals, it is compatible with with Belden 1505F, as well as similar cables in group FB. This connector is used in Full HD1080p (3G), HD-SDI and are fit for Ultra HD 4K (12G) applications. With a diameter of only 0.3", mounting density is increased by four times when compared with a standard BNC.
- 70081NH
- Belden 1505A
- Belden 4505ANH
- Belden 4505ANH
- Belden 4505R
- Belden 70081NH
- Bryant BD SD50A
- Canare L-4CFB
- Canare L-4CHD
- Canford SDV-I-X-LFH
- Conducfil 14472
- Draka 0.8/3.7AF
- Draka HD PRO 0.8/3.7 AF
- Image 720
- Percon VK6
- Percon VK66
- Center contact: beryllium copper
- Outer contact: brass
- Insulator: PTFE
- Bayonet cap: brass
- Gasket: silicone
- Center contact plating: gold
- Outer contact plating: nickel
- RoHS3 compliant: yes
- Center contact termination: crimp
- Outer contact termination: crimp
- Mating cycles: 500
- Contact retention: 10 N min
- Cable retention: 100 N min
- Mating force: 10 N max
- Un-coupling force: 10 N max
- Impedance: 75 ohm
- Frequency range: up to 12 GHz
- Dielectric withstand voltage: 1000 Veff
- Insulation resistance: 10,000 Megohms
- Return loss: -21 dB @ 12 GHz
- COAX Connectors Micro-BNC Straight Crimp Plug for Belden 1505A (100-Pack)
No additional resources available
COAX Connectors 67-005-B66-FB1 Specs
| Interface |
Not Specified by Manufacturer
|
| Connector 1 |
1x Micro-BNC Male
|
| Connector 2 |
x Bare End
|
| Materials |
Connector/Contact: Gold-Plated Brass
|
| Certifications |
IEC 61169-8, RoHS
|
