Description
COAX Connectors 10-005-W126-FI Overview

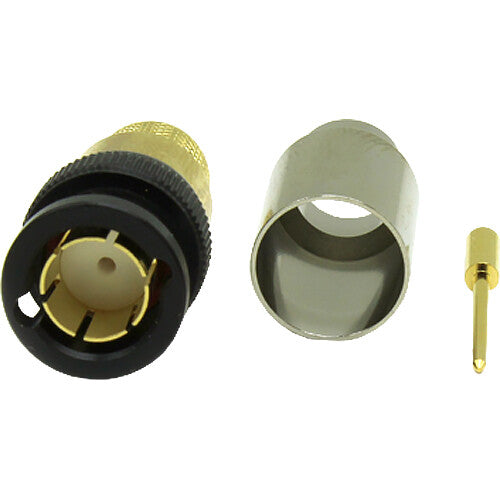

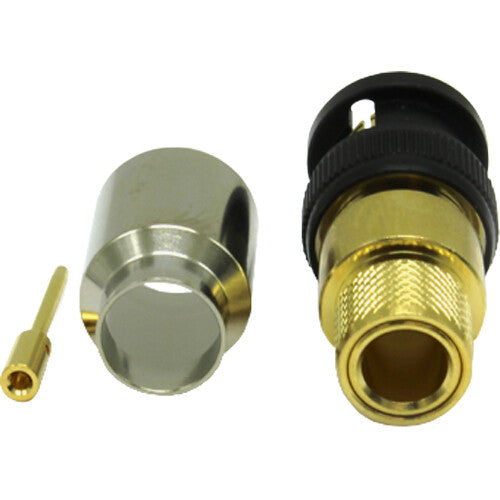

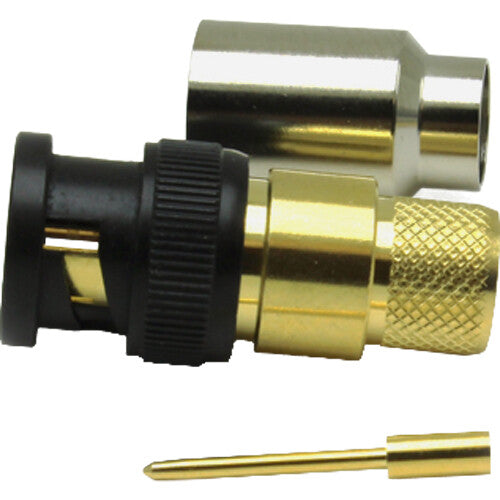

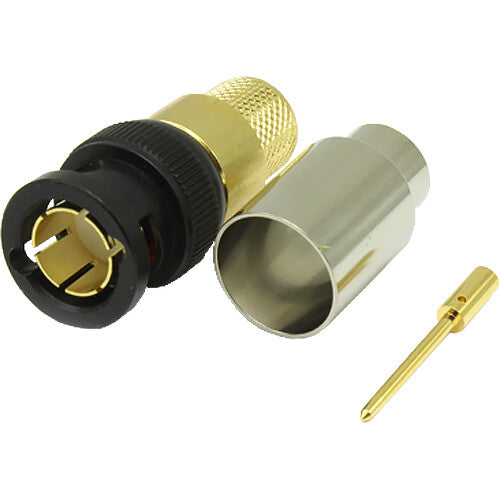

This 100-pack of Korus UHD 12 GHz BNC Straight Crimp Plug for Belden 1794A/4794R from COAX Connectors is suitable for use at frequencies of 12 GHz. Supporting 12G signals, it is compatible with Belden 1794A/4794R, as well as similar cables in group FI. Tested to meet the requirements of SMPTE ST 2081-1 & ST 2082-1, typical applications are for 6G and 12G broadcast, telecom, instrumentation, security, and many others.
- Compatible with Belden 1794A and 4794R
- High-performance 75-ohm BNC crimp plug
- Tested to meet the requirements of SMPTE ST 2081-1 & ST 2082-1
- For use in 6G & 12G systems
Material
- Center contact: brass
- Outer contact: brass
- Insulator: PTFE
- Bayonet cap: brass
- Centre contact plating: gold
- Outer contact plating: gold
Electrical
- Impedance: 75 ohms
- Frequency range: up to 12 GHz
- Dielectric withstand voltage: 1500 Veff
- Insulation resistance: 5000 Megohms
- Return loss: -20 dB @ 6 GHz
Mechanical
- Design standard: IEC 61169-8
- RoHS 3 compliant: yes
- Centre contact termination: crimp
- Outer contact termination: crimp
- Mating cycles: 500
- Contact retention: 10 N min
- Cable retention: 150 N min
- Mating force: 13.6 N max
- Un-coupling force: 13.6 N max
- Center contact: Hex .172mm A/F
- Crimp sleeve: Hex 8.23mm A/F
- COAX Connectors Korus UHD 12 GHz BNC Straight Crimp Plug for Belden 1794A/4794R (100-Pack)
No additional resources available
COAX Connectors 10-005-W126-FI Specs
| Interface |
Not Specified by Manufacturer
|
| Connector 1 |
1x BNC Male
|
| Connector 2 |
x Bare End
|
| Color |
Black
|
| Certifications |
IEC 61169-8
|
