Description
CNDLive CND-D1 Overview

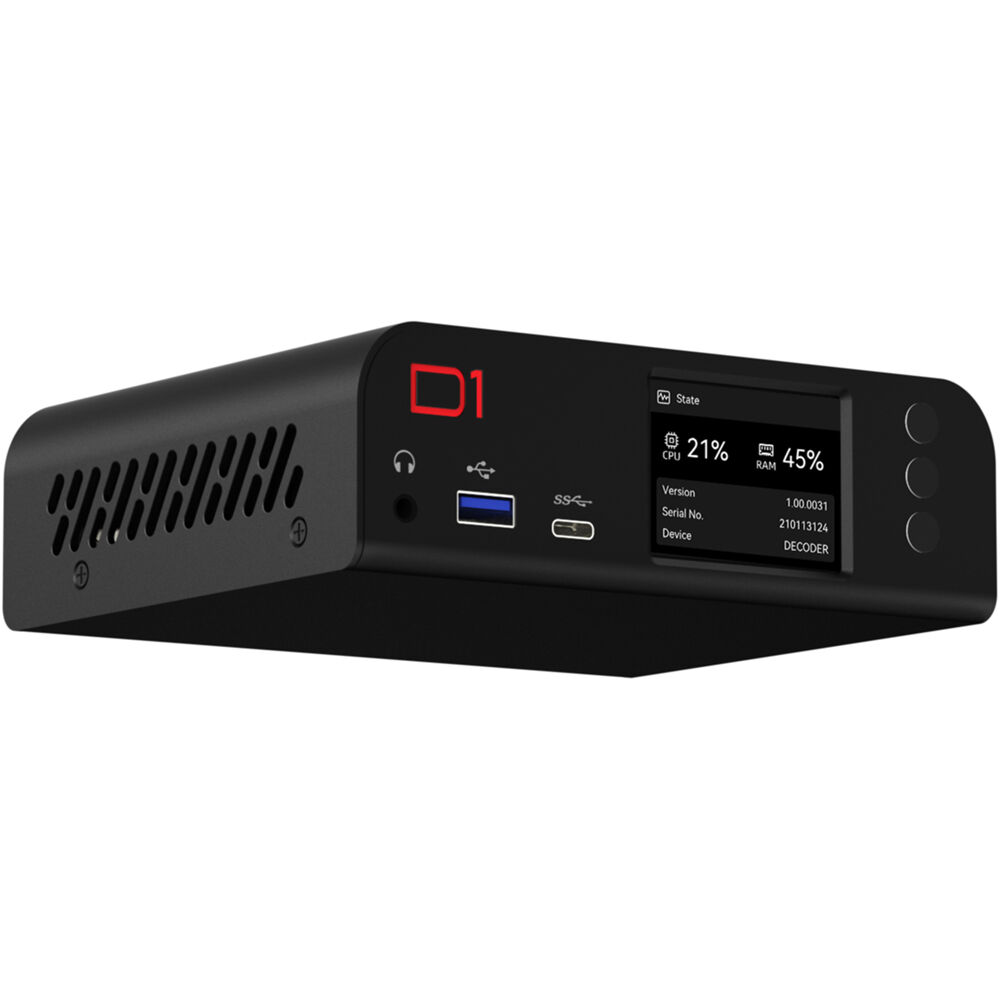

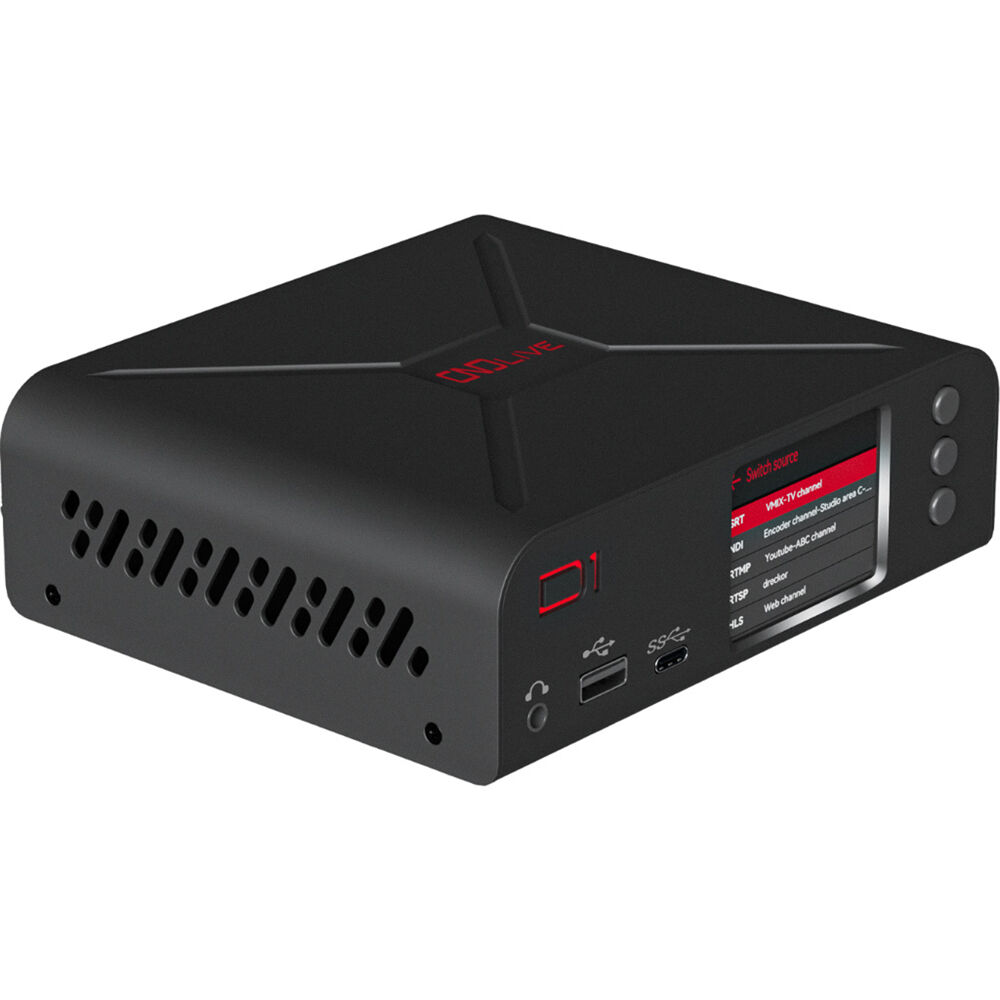

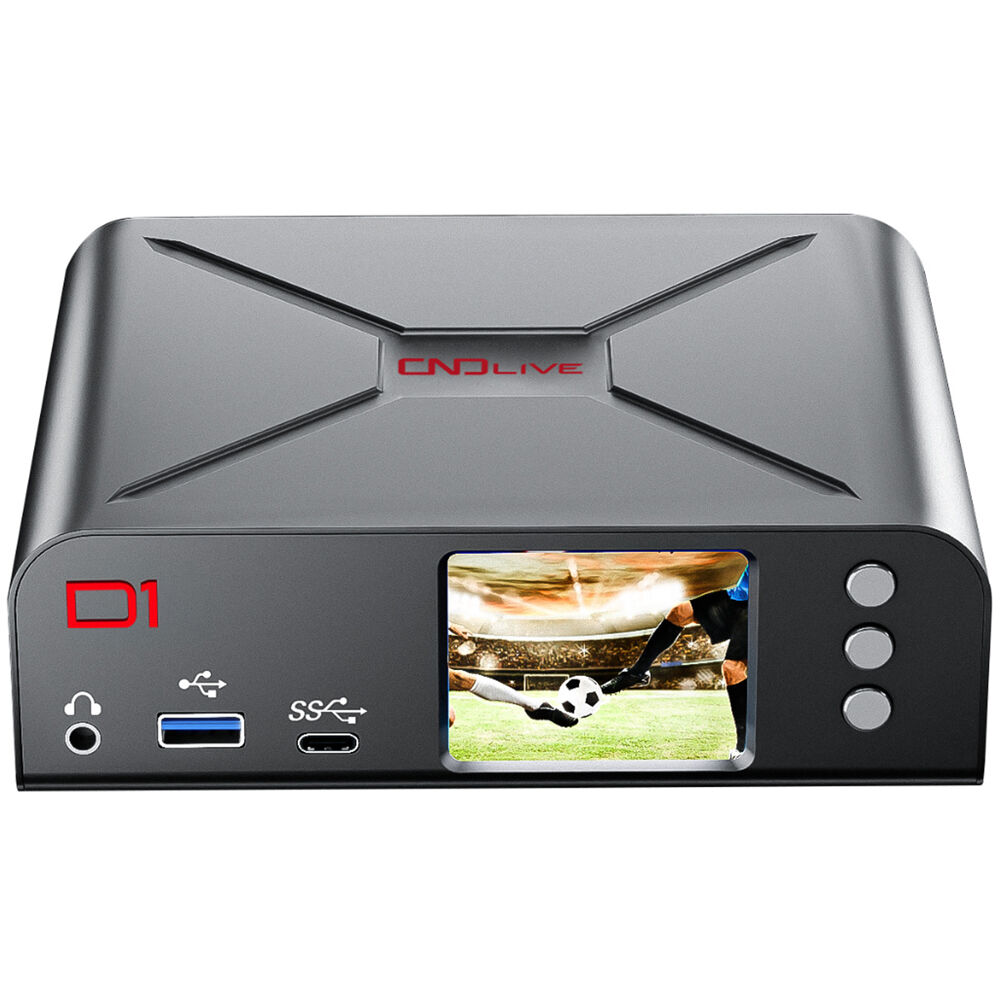

The D1 HDMI/SDI Video Decoder from CNDLive features a dual-output design to bring live streams from video networks into hardware environments. The D1 can decode up to eight channels. Multiview distributes four channels to the independent HDMI and SDI output ports, which support up to 4K60 and 1080p60 video, respectively. The D1 supports high-bandwidth NDI, NDI|HX2, NDI|HX3, SRT, RTMP, RTMPS, HLS, TS over UDP, RTSP, and RTMP protocols. Two Gigabit Ethernet ports, one with PoE support, facilitate IP connectivity. Additional connectivity includes USB-A and USB-C ports for peripheral devices to record or playback video. A 2" LCD screen allows you to monitor your video and adjust setting parameters.
- 4K60 HDMI and 1080p60 3G-SDI outputs
- Supports high-bandwidth NDI, NDI|HX2, NDI|HX3, SRT, RTMP, RTMPS, HLS, TS over UDP, RTSP, and RTMP
- Decodes up to eight channels with independent HDMI and SDI outputs
- 8-channel embedded audio output through HDMI and SDI
- Multiview support for up to four channels per output

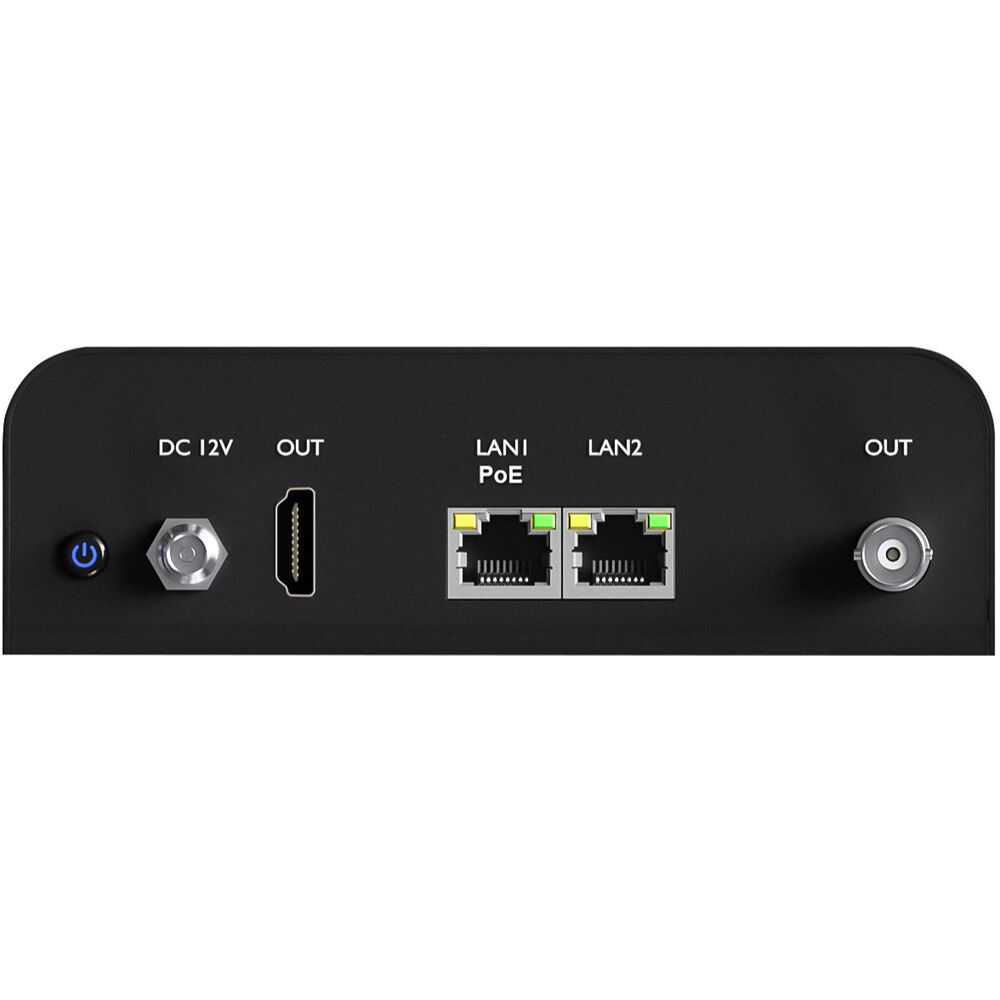

- 2x Gigabit Ethernet RJ-45 ports, one with PoE
- USB-A 3.0 and USB-C ports
- 2" full-color LCD screen with live preview, system status, and settings menu navigation
- Recording and playback to/from USB storage devices
- 3.5mm audio line output port; PoE and 12 VDC ports
Items Included
- CNDLive D1 HDMI/SDI Video Decoder
-
Limited 1-Year Manufacturer Warranty
Registration Extension: 1-Year
Additional Resources
No additional resources available
CNDLive CND-D1 Specs
| Video I/O |
Output
1x HDMI 1x BNC (3G-SDI) |
| Embedded Audio |
HDMI/SDI Output: 8-Channel
|
| IP Video |
Decoding
3840 x 2160 at 24/25/30/50/60fps 1920 x 1080p at 24/25/29.97/30/50/59.94/60fps 1920 x 1080i at 50/59.94/60fps 1280 x 720 at 50/59.94/60fps 720 x 576p at 50fps 720 x 480p at 60fps |
| Simultaneous Streams |
4 Streams
|
| Media/Memory Card Slot |
No
|
| Display |
2" LCD
|
| Power Consumption |
9 W
|
| Video I/O |
Output
1x HDMI 1x BNC (3G-SDI) |
| Audio I/O |
Output
1x 1/8" / 3.5 mm TRS |
| Other I/O |
Input
1x USB-A 1x USB-C Input/Output 2x RJ45 (LAN) |
| Embedded Audio |
HDMI/SDI Output: 8-Channel
|
| IP Video |
Decoding
3840 x 2160 at 24/25/30/50/60fps 1920 x 1080p at 24/25/29.97/30/50/59.94/60fps 1920 x 1080i at 50/59.94/60fps 1280 x 720 at 50/59.94/60fps 720 x 576p at 50fps 720 x 480p at 60fps |
| Transport Protocols |
HLS, NDI/HX2, NDI/HX3, RTMP, RTMPS, RTSP, SRT, UDP
|
| Simultaneous Streams |
4 Streams
|
| Media/Memory Card Slot |
No
|
| Cellular Support |
No
|
| Display |
2" LCD
|
| Power I/O |
1x Barrel (12 VDC ) Input
|
| PoE Support |
PoE Proprietary
|
| Power Consumption |
9 W
|
| Operating Conditions |
14 to 113?F / -10 to 45?C
|
| Storage Conditions |
-4 to 113?F / -20 to 45?C
|
| Dimensions |
5.5 x 5.17 x 1.72" / 14 x 13.12 x 4.37 cm
|
| Package Weight |
1.75 lb
|
| Box Dimensions (LxWxH) |
8.9 x 8.1 x 2.6"
|
