Description
CNDLive CND-A1 Overview

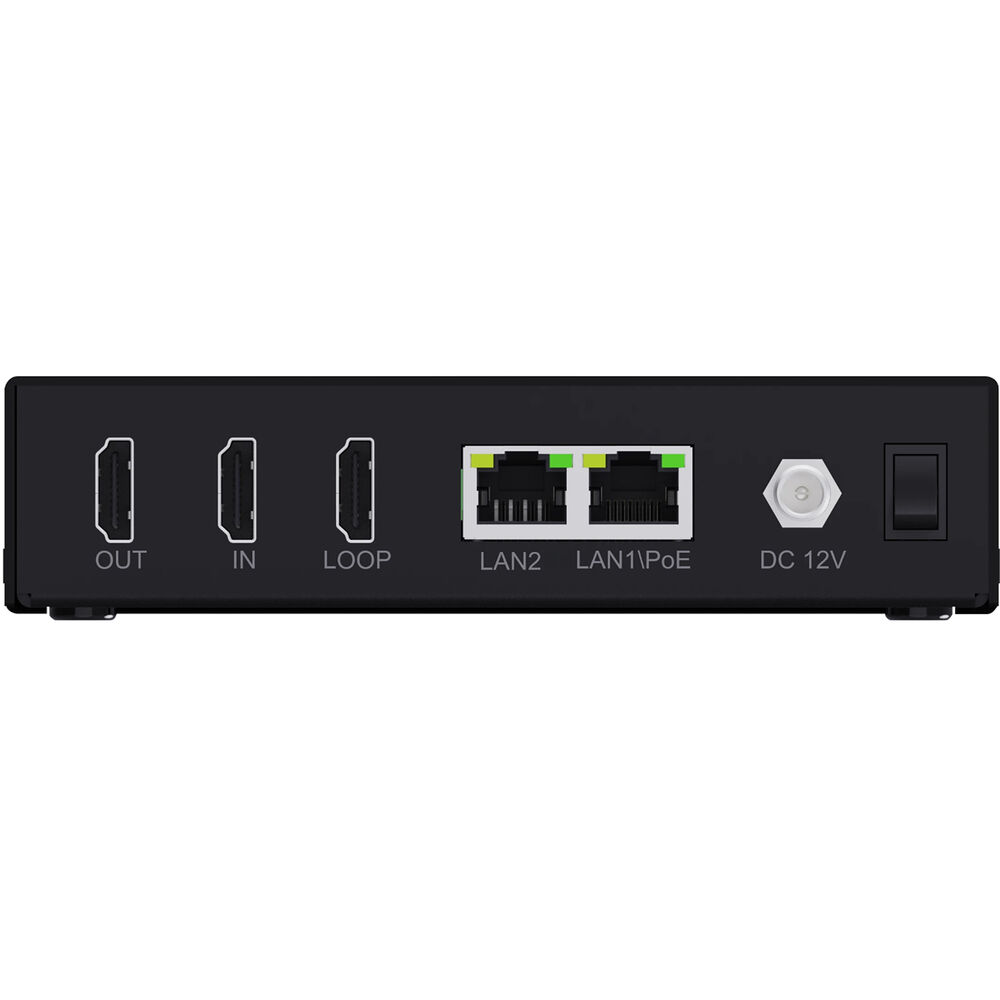

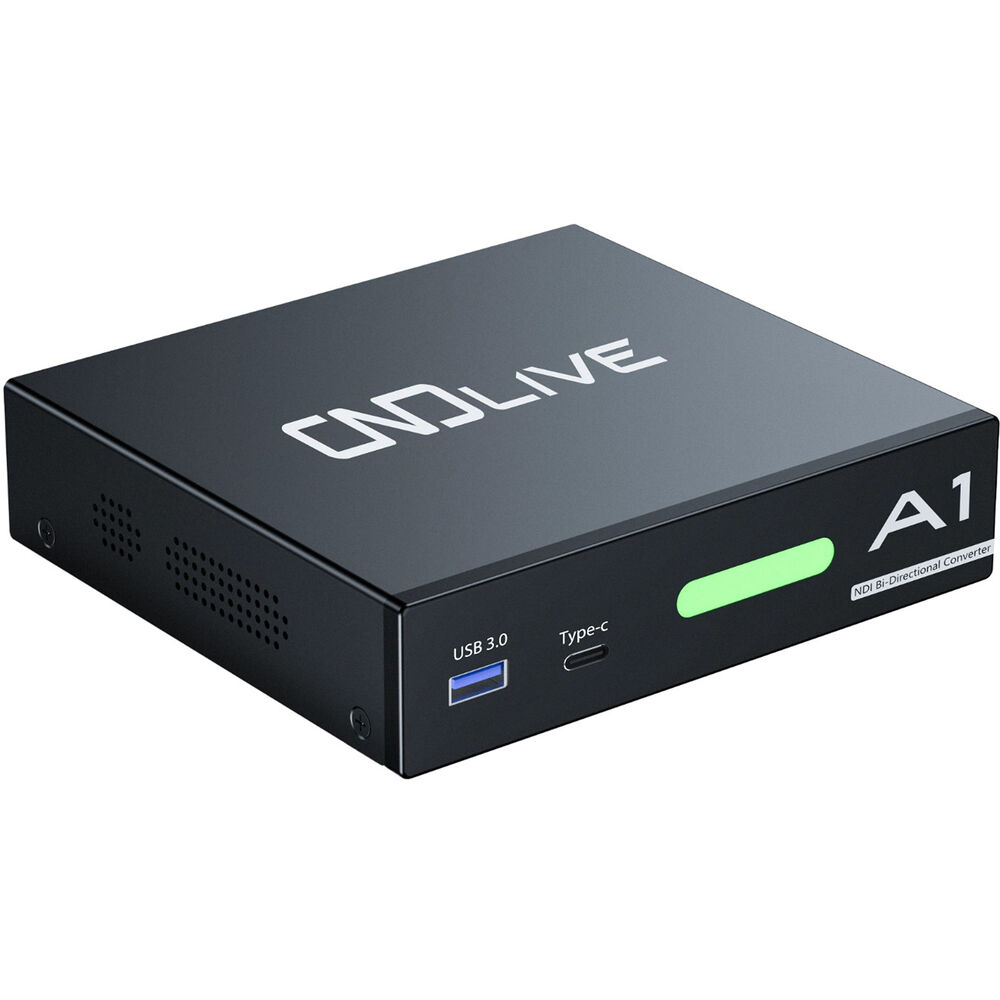

The CNDLive A1 Bi-Directional NDI Converter functions as both an encoder and decoder, capable of performing both actions simultaneously at resolutions up to 1080p60. The A1 features an HDMI input, output, and loop output that ingest and convert your NDI signal. When in encode-only or decode-only mode, the A1 can support video signals up to 4K60. Two RJ45 LAN ports support High Bandwidth NDI, NDI|HX2, and NDI|HX3 protocols. One of these ports supports PoE power. A USB-A port can also be used to encode USB webcams to NDI. A USB-C port can support intercom system connectivity. The A1 features an LED tally light on the front for live monitoring.
- Bidirectional conversion: Encode an HDMI video source to NDI while decoding NDI to an HDMI output
- Supports high-bandwidth NDI, NDI|HX2, and NDI|HX3 formats
- 4K input and output up to 60 fps
- HDMI 2.0 input, output, and loop output
- Tally light, USB-C intercom port
- USB-A 3.0 port for USB to NDI encoding
- Powered via 12 VDC input or PoE
Items Included
- CNDLive A1 Bi-Directional NDI Converter
-
Limited 1-Year Manufacturer Warranty
Registration Extension: 1-Year
Additional Resources
No additional resources available
CNDLive CND-A1 Specs
| Video I/O |
Input
1x HDMI 2.0 1x USB-A 3.0 / 3.1/3.2 Gen 1 Output 1x HDMI 2.0 1x HDMI 2.0 (Loop Output) Input/Output 2x RJ45 (NDI) |
| Embedded Audio |
HDMI/LAN (RJ45)/USB
|
| IP Video |
Encoding via NDI/NDI|HX/NDI|HX2/NDI|HX3
3840 x 2160 at 30/60/50pfps 1920 x 1080 at 23.98/24/30/29.97p/60/50p/59.94pfps 1920 x 1080 at 50/59.94/60ifps 1280 x 720 at 30/29.97p/60/50p/59.94pfps Decoding via NDI/NDI|HX/NDI|HX2/NDI|HX3 3840 x 2160 at 30/60fps 1920 x 1080 at 23.98/24/30/29.97p/60/50p/59.94pfps 1920 x 1080 at 50/59.94/60ifps 1280 x 720 at 30/29.97p/60/50p/59.94pfps Encoding/Decoding 1920 x 1080 at 23.98/24/30/29.97p/60/50p/59.94pfps 1920 x 1080 at 50/59.94/60ifps 1280 x 720 at 30/29.97p/60/50p/59.94pfps |
| Simultaneous Streams |
2 Streams
|
| Media/Memory Card Slot |
No
|
| Power Consumption |
9 W
|
| Video I/O |
Input
1x HDMI 2.0 1x USB-A 3.0 / 3.1/3.2 Gen 1 Output 1x HDMI 2.0 1x HDMI 2.0 (Loop Output) Input/Output 2x RJ45 (NDI) |
| Other I/O |
Input
1x USB-C (Intercom) |
| Embedded Audio |
HDMI/LAN (RJ45)/USB
|
| Broadcast System Compatibility |
NTSC, PAL
|
| IP Video |
Encoding via NDI/NDI|HX/NDI|HX2/NDI|HX3
3840 x 2160 at 30/60/50pfps 1920 x 1080 at 23.98/24/30/29.97p/60/50p/59.94pfps 1920 x 1080 at 50/59.94/60ifps 1280 x 720 at 30/29.97p/60/50p/59.94pfps Decoding via NDI/NDI|HX/NDI|HX2/NDI|HX3 3840 x 2160 at 30/60fps 1920 x 1080 at 23.98/24/30/29.97p/60/50p/59.94pfps 1920 x 1080 at 50/59.94/60ifps 1280 x 720 at 30/29.97p/60/50p/59.94pfps Encoding/Decoding 1920 x 1080 at 23.98/24/30/29.97p/60/50p/59.94pfps 1920 x 1080 at 50/59.94/60ifps 1280 x 720 at 30/29.97p/60/50p/59.94pfps |
| Simultaneous Streams |
2 Streams
|
| Media/Memory Card Slot |
No
|
| Wireless |
No
|
| Cellular Support |
No
|
| Power I/O |
1x Barrel (12 VDC at 2 A) Input
|
| PoE Support |
PoE 802.3af
|
| Power Consumption |
9 W
|
| Dimensions |
5.6 x 3.5 x 1.3" / 143 x 90 x 32 mm
|
| Package Weight |
1.54 lb
|
| Box Dimensions (LxWxH) |
8.6 x 8.2 x 2.7"
|
