Description

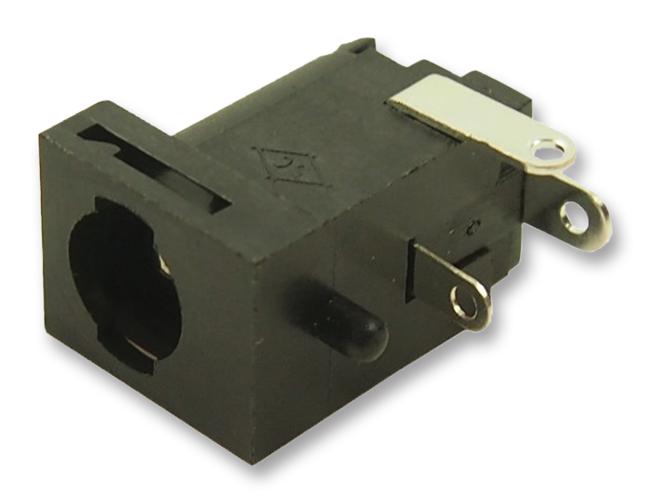

The FC681477 from Cliff Electronic Components is a locking DC power socket with 2.5mm diameter pin. Typical applications include signal processors and power supplies.
- Maximum contact resistance is 30mohm
- Maximum current rating of 2A at 16VDC
- Minimum insulation resistance of 100Mohm at 500VDC
- Dielectric withstand voltage is 500VAC for 1 minute
- Black colour socket
- Solder tag terminal
Industrial, Power Management, Portable Devices
Other details
| Brand | CLIFF ELECTRONIC COMPONENTS |
| Part Number | FC681477 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Drawing EN | |
