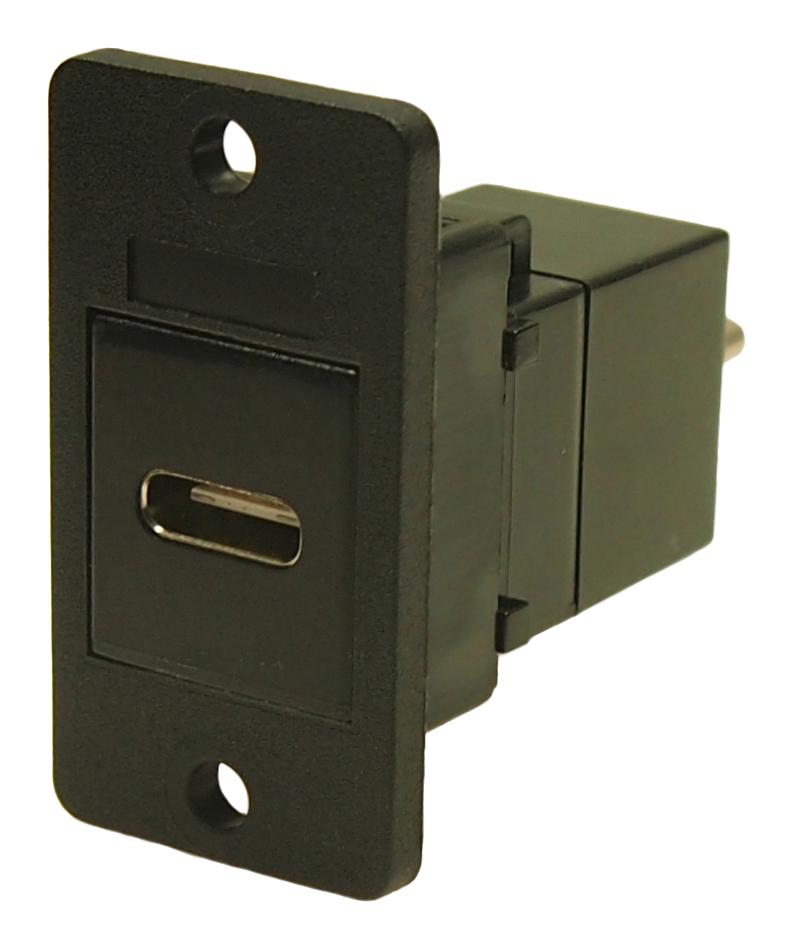

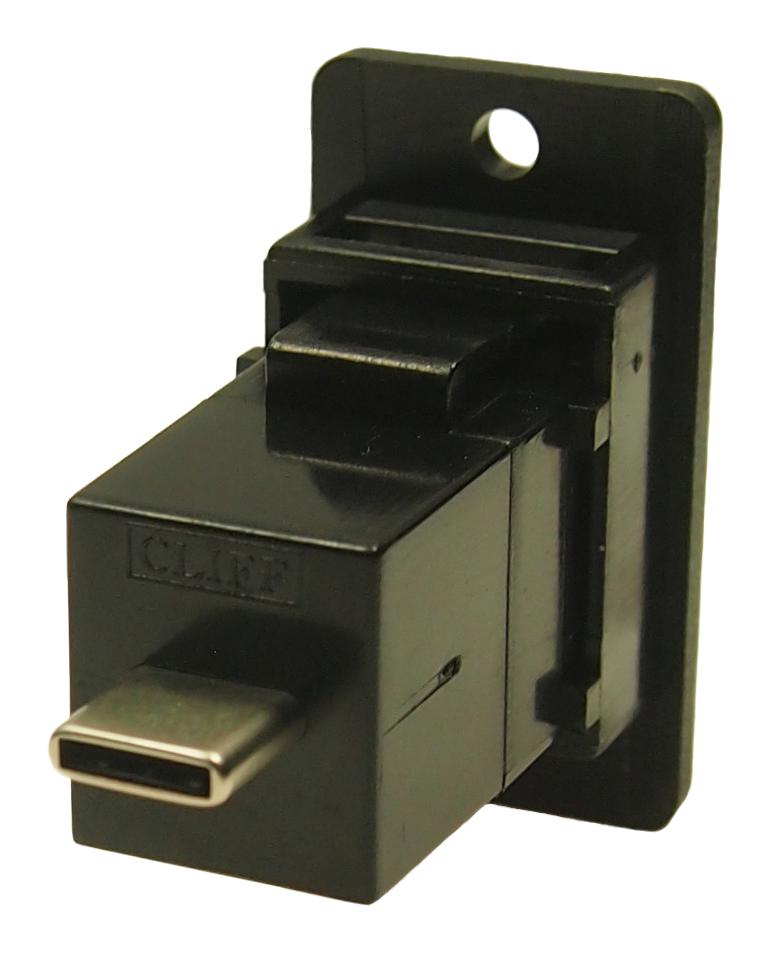

The FT series of true, feed through, data connectors for electrical instrumentation are perfect for developing custom I/O configurations for wall plates, rack panels, etc. The SLIMS are 19 � 35.5mm, fit within a narrow 17.15 � 22.86mm panel cut-out and use common cabling for front and back connections. No soldering and no punch terminations - just use the standard cable for that particular connector style. Mount from the front with various mounting hole options.
- Fits standard rectangular cut-out
- Various hole mounting options
- Low rear profile
- SLIM FM USB-C F-M black plastic frame, �3.2 PLAIN holes
- ABS UL94 HB insert, polyamide UL94 V2 plastic frame
- 3A maximum rated current, 30V maximum working voltage
- 10,000 cycles insertion life
Other details
| Brand |
CLIFF ELECTRONIC COMPONENTS |
| Part Number |
CP30611X1 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
| CAD Multiple Formats EN |
|
| Drawing EN |
|
