The FT series of true, feed through, data connectors for electrical instrumentation are perfect for developing custom I/O configurations for wall plates, rack panels, etc. The SLIMS are 19 � 35.5mm, fit within a narrow 17.15 � 22.86mm panel cut-out and use common cabling for front and back connections. No soldering and no punch terminations - just use the standard cable for that particular connector style. Mount from the front with various mounting hole options.
- Fits standard rectangular cut-out
- Various hole mounting options
- Low rear profile

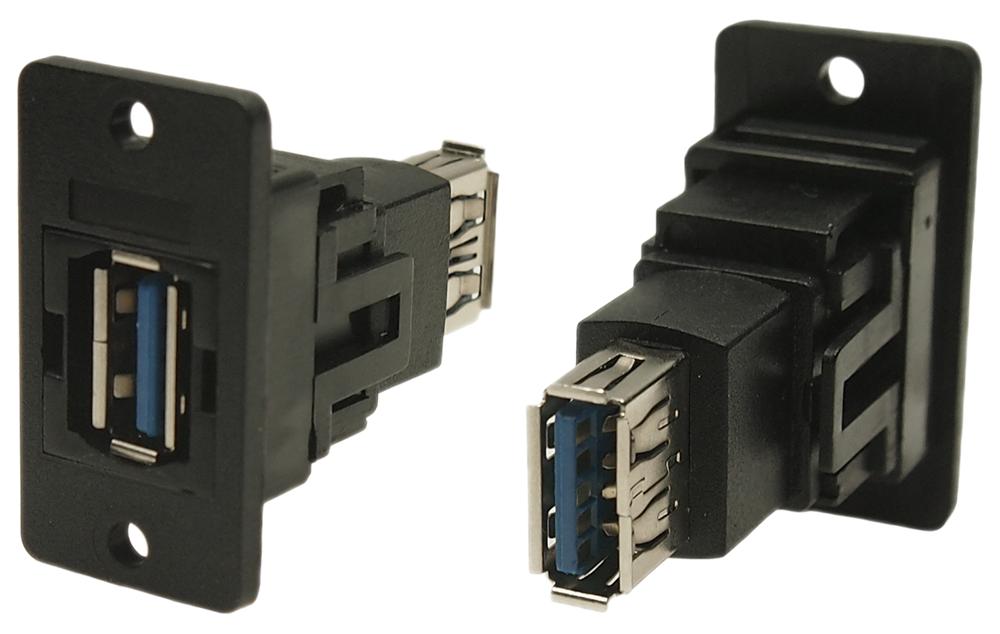

- SLIM FM USB3.0 A-A black plastic frame, �3.2 PLAIN holes
- ABS UL94 HB insert, polyamide UL94 V2 plastic frame, PE + PVC inner overmouldings
- Nickel plated steel shell and gold plated contacts
- 30VAC voltage rating, 1.8A maximum current rating
- Operating temperature range from -20°C to 50°C
Other details
| Brand |
CLIFF ELECTRONIC COMPONENTS |
| Part Number |
CP30605NX1 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
| Drawing EN |
|
| CAD Multiple Formats EN |
|
