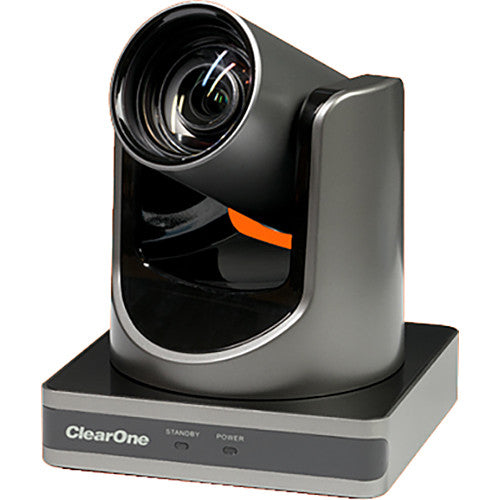

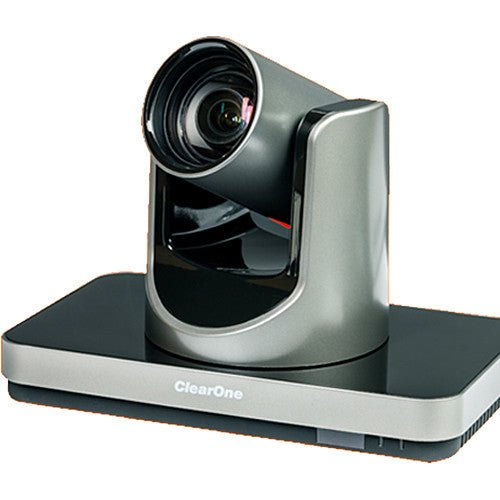

ClearOne UNITE 150 HD PTZ Camera

Output up to 1080p30 USB Video

12x Zoom Lens, f1.8 to 2.8 Aperture

USB, RS-232, RS-485 Control

VISCA, PELCO-D, PELCO-P Support

Chat, stream, and record with the UNITE 150 HD PTZ Camera from ClearOne . This PTZ camera supports up to 1080p30 video and features auto-focus and automatic backlight correction for clear details whether you're in dimly or brightly lit environments. It features a 12x zoom, bright f1.8 to 2.8 aperture, wide 72.5° horizontal field of view, and 2D and 3D digital noise reduction for a crisp, clear image.

The UNITE 150 features remote control over PTZ (pan, tilt, zoom) functions using the included IR remote control, and it also supports VISCA, PELCO-D, PELCO-P serial protocols over RS-232 and RS-485 outputs as well as USB control using UVC 1.0 and UVC PTZ. The cable range of the RS-232 port is maximum of 98', and when using RS-485 shared with the RS-232 output you can extend the cable range to 3937'.

Camera features include 255 presets, horizontal and vertical flip, and image freeze. The PTZ motion features include a panning speed up to 100° per second, tilting speed up to 69.9° per second, a 340° panning range, and a 120° tilting range.

This camera is compatible with Windows, macOS, and Chrome OS and collaboration services such as ClearOne COLLABORATE Space, Microsoft Teams, Zoom, WebEx, GoToMeeting, and more. The camera includes a power supply, remote control, a lens cap for when the camera is not in use, and a USB cable.

Key Features Supports up to 1080p30 video with 1/2.7" CMOS sensor Pan speed range from 1.7 to 100° per second; tilt speed range from 1.7 to 69.9° per second Image freeze and horizontal/vertical flip supported 240° panning range and 120° tilt range 6.9 to 72.5° horizontal field-of-view, 12x zoom lens, f1.8 maximum aperture PTZ communication over RS-232, RS-485 using VISCA, PELCO-P, PELCO-D, and over USB using UVC 1.0/1.1; UVC PTZ is also supported USB 3.1 Gen 1 Type-B interface for video output Super-high SNR with advanced 2D and 3D noise reduction Standard PTZ camera mount with upside-down mounting capability Use with computer or laptop and web conferencing applications such as ClearOne's COLLABORATE Space, Microsoft Teams, Zoom, WebEx, GoToMeeting, and others Computer Requirements Operating System:

• Windows 7 (for 1080p and lower only)
• Windows 8.1
• Windows 10 or higher
• macOS 10.10 or higher
• Google Chrome version 29.0.1547.70 or higher

Physical:

• 2.4 GHz Intel Core 2 Duo processor or higher
• 2 GB RAM or more
• USB 2.0 port



UPC: 671010009835

Image Sensor	1-Chip 1/2.7" CMOS Sensor
Signal-to-Noise Ratio	55 dB

Shutter Speed	1/30 to 1/10,000 sec
Max Digital Zoom	12x ( in 1080p)
Flip / Mirror Support	Image Flip

Focal Length	3.5 to 42.3mm
Field of View	Horizontal: 6.9 to 72.5° Vertical: 3.9 to 44.8°
Maximum Aperture	f/1.8 to 2.8
Focus Control	Autofocus

Output Formats

USB: 1920 x 1080p at 25, 30 fps 1280 x 720p at 25, 30 fps

Audio Recording

None

Presets	255 via IR, RS-232, UVC, VISCA
Move Speed	Pan: 1.7 to 100°/sec Tilt: 1.7 to 69.9°/sec
Movement Range	Pan: 340° (-170 to 170°) Tilt: 120° (-30 to 90°)
Supported Control Protocols	IR Pelco-D Pelco-P RS-232 RS-485 VISCA
Max Cable Length	3937.01' / 1200 m (RS-485)

Video Output Connectors	1 x USB 3.0 Type-B (USB Video) Female
Audio I/O	1 x 1/8" / 3.5 mm Stereo Line Level Input
Control Interface	1 x 8-Pin Mini-DIN (Pelco-D, Pelco-P, RS-232, VISCA) Input 1 x 8-Pin Mini-DIN (Pelco-D, Pelco-P, RS-232, VISCA) Output 1 x 8-Pin Mini-DIN (Pelco-D, Pelco-P, RS-485, VISCA) Output
Other I/O	1 x USB Type-A Output

PoE Support	None
Power Connectors	1 x JEITA (12 VDC)
Power Consumption	Device: 12 W

Operating Temperature	32 to 104°F / 0 to 40°C
Storage Temperature	-40 to 140°F / -40 to 60°C

Dimensions	9.45 x 5.67 x 6.3" / 24 x 14.4 x 16 cm
Weight	3.64 lb / 1.65 kg

Package Weight	5.32 lb
Box Dimensions (LxWxH)	9.9 x 9.3 x 9.2"
